Electrical - Wiring Schematics Revisions
NUMBER: 26-12-99K
GROUP: Miscellaneous
DATE: December, 1999
THE REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN
MODELS:
1999 Cherokee Service Manual - Publication Number 81-370-9146
DESCRIPTION OF CHANGES
Revisions to the wiring schematics

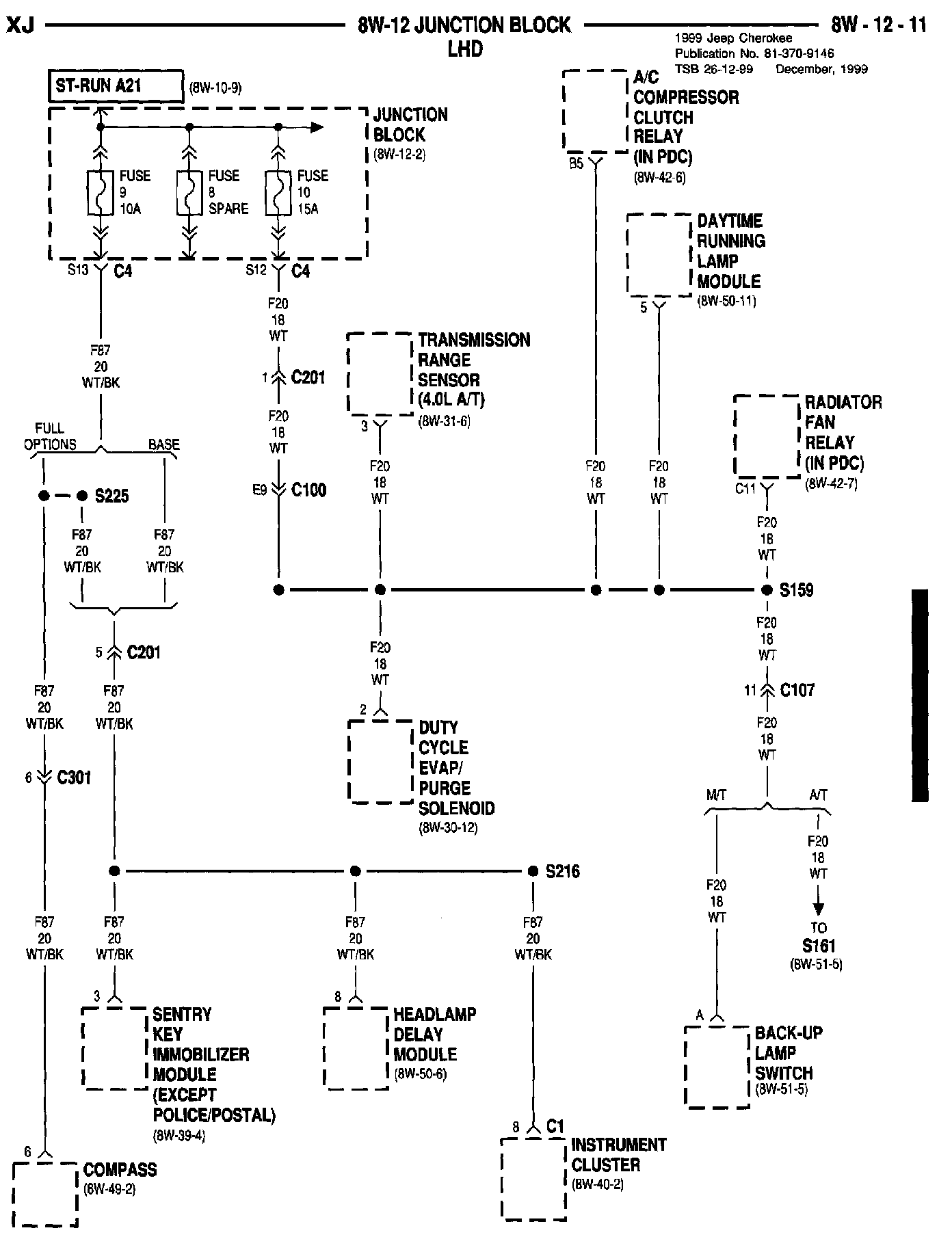

8W-12-11

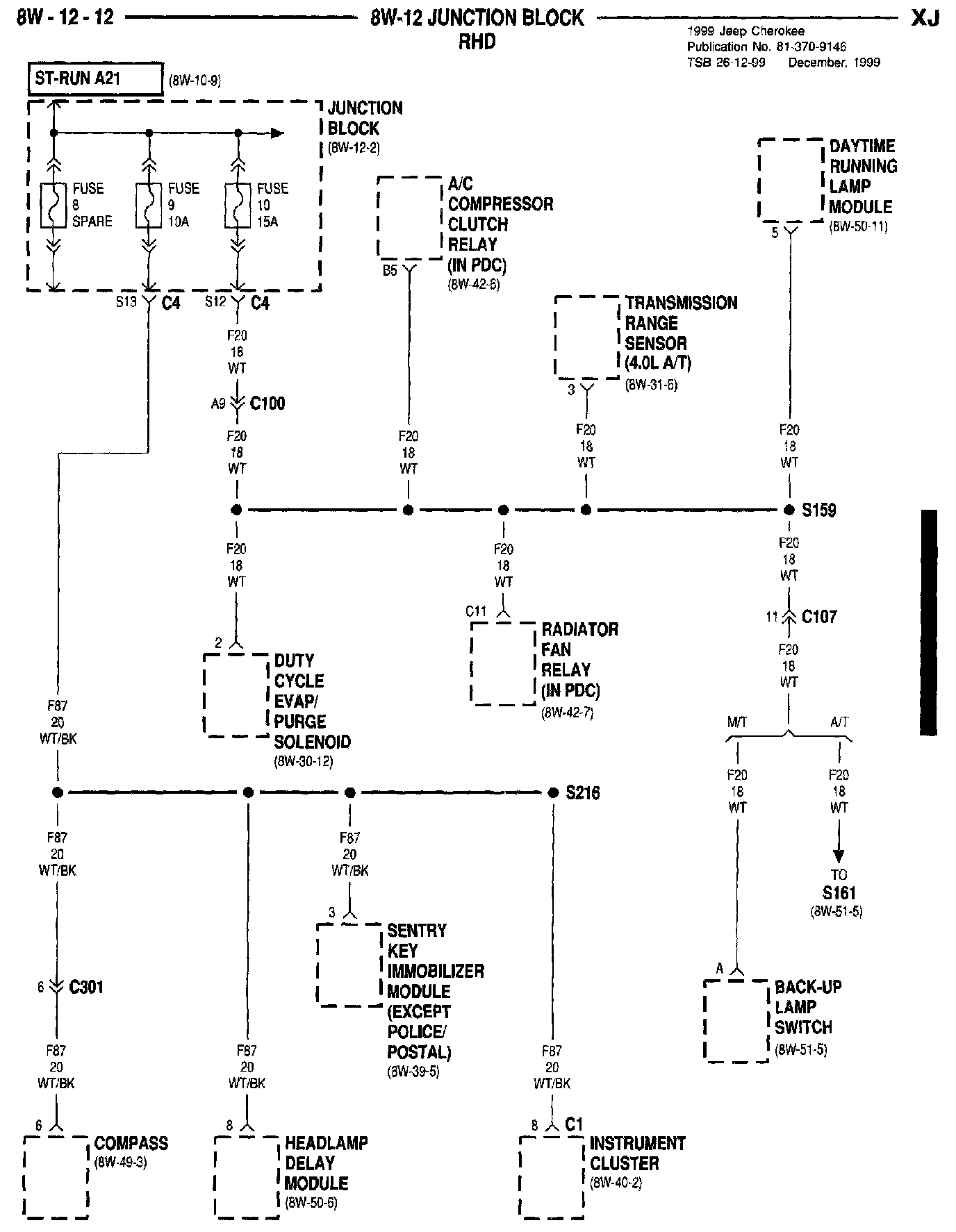

8W-12-12

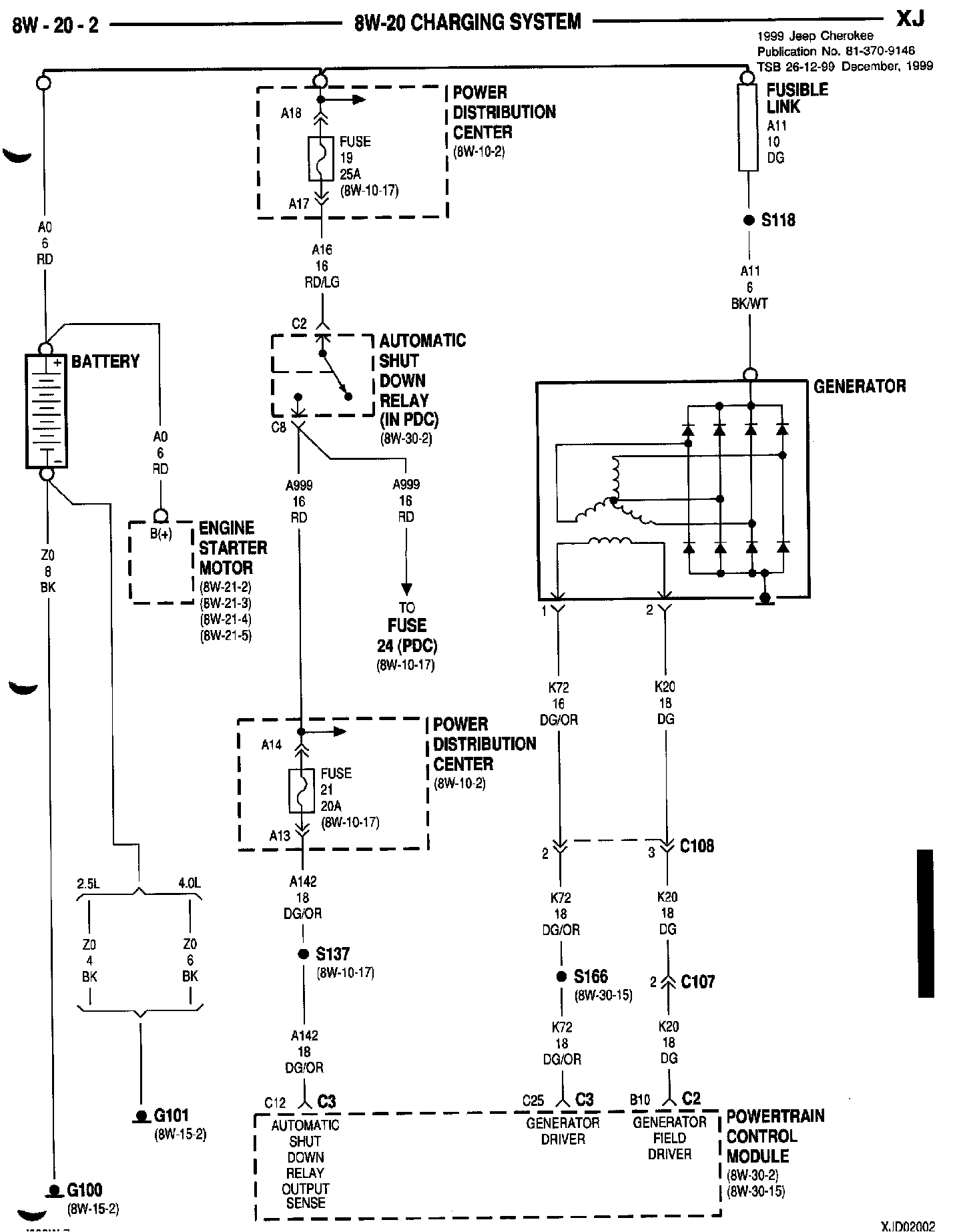

8W-20-2

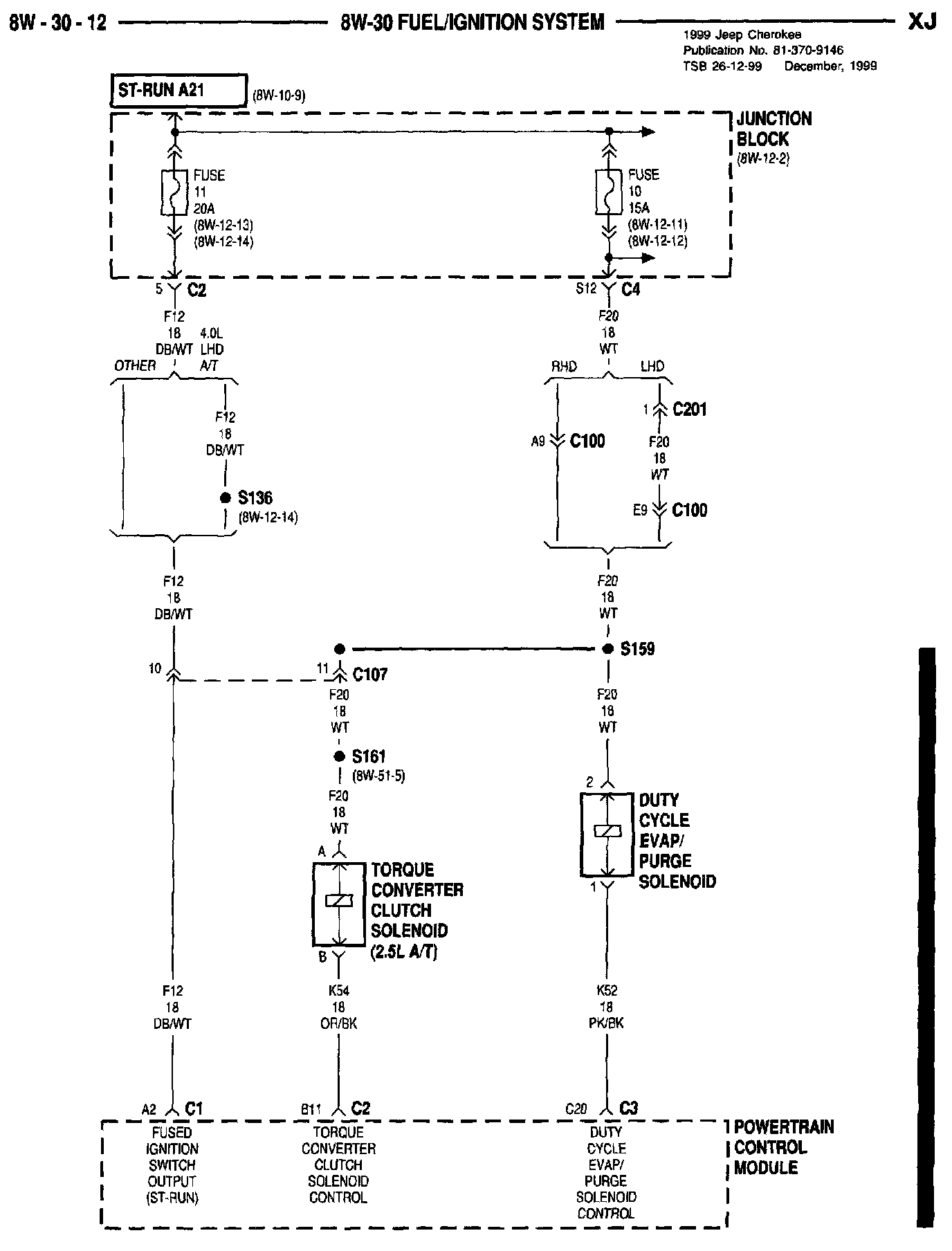

8W-30-12

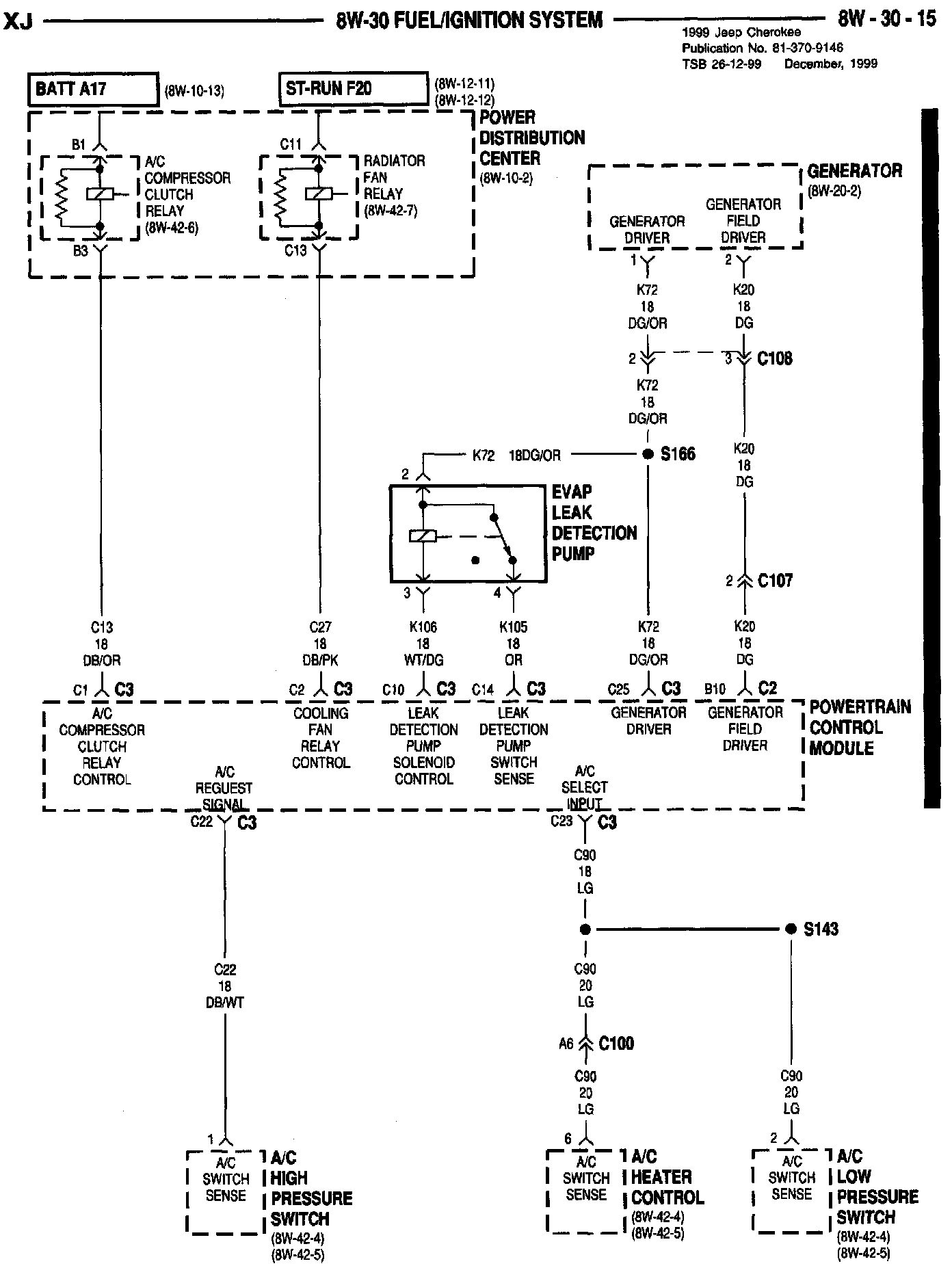

8W-30-15

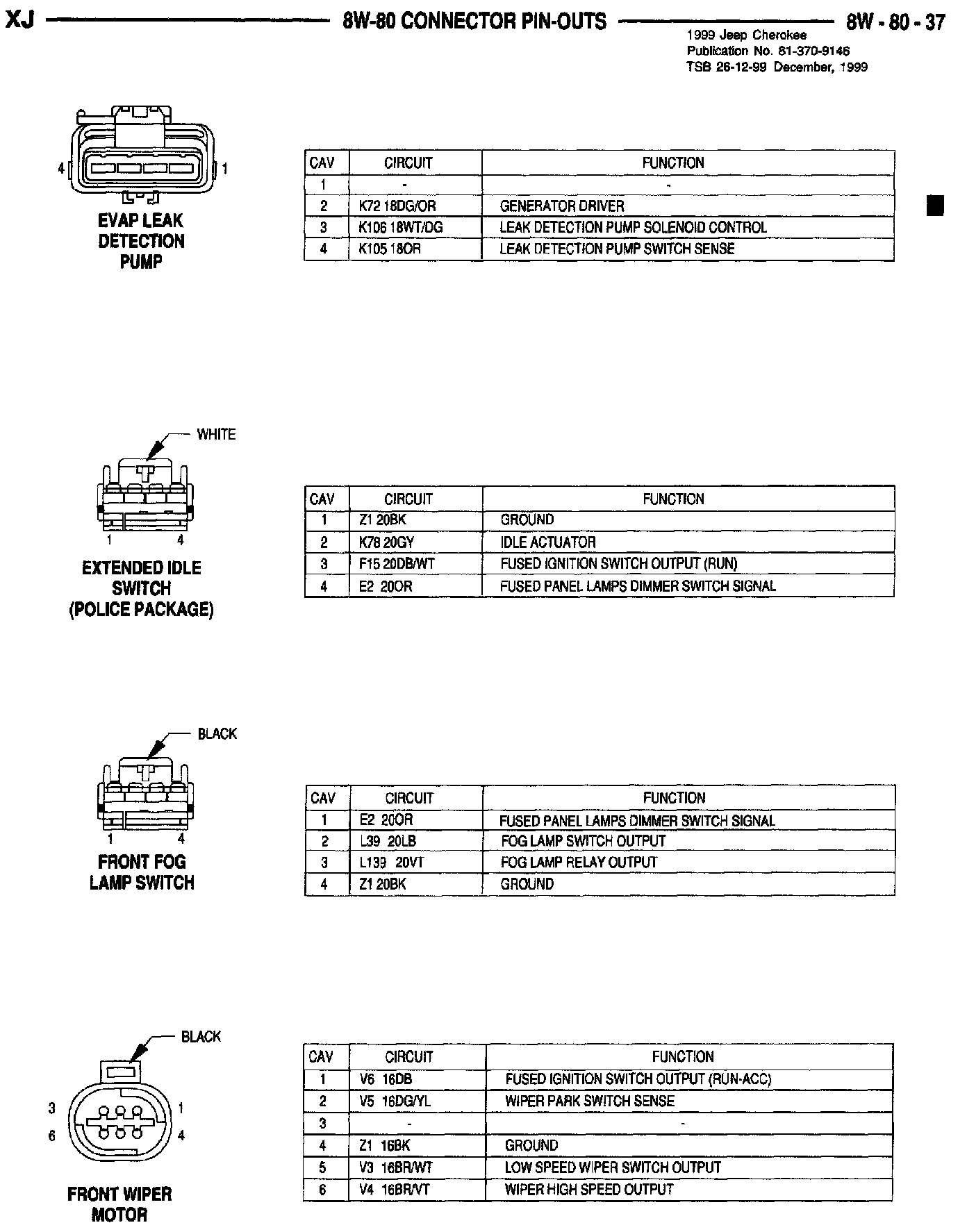

8W-80-37
