Extension Housing: Service and Repair

REMOVAL
1. Raise vehicle.
2. Disconnect or remove components necessary to gain access to seal (e.g. propeller shaft, crossmember, shift linkage, transfer case, exhaust components, hoses, wires).

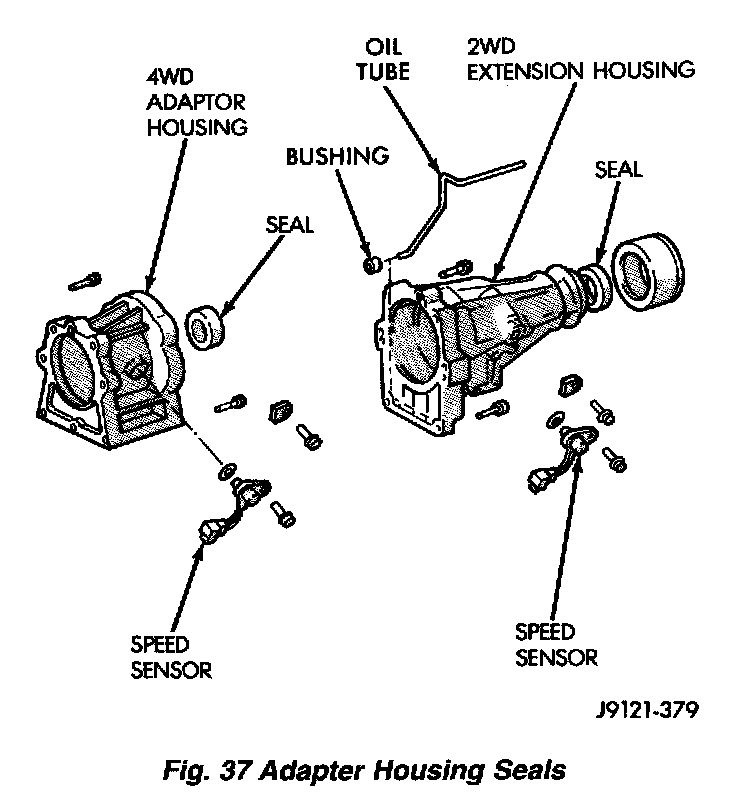

Fig. 37:

3. On 4X2 vehicles, remove dust shield from the adapter housing by tapping gently with a brass drift and hammer.
4. On 4X2 vehicles, remove the adapter housing seal with Seal Puller 7550.
5. On 4X4 vehicles, remove the adapter housing seal using a slide hammer mounted screw.

INSTALLATION
1. Install new adapter housing seal with Seal Installer 7888.
2. On 4X2 vehicles, install dust shield using Special Tool D-187-B.
3. Reinstall components removed to gain access to seal.
4. Top off transmission fluid if necessary.
