Flex Plate

TORQUE SPECIFICATIONS

4.0 L
Drive Plate-to-Crankshaft Bolts 143 Nm (105 ft. lbs.)

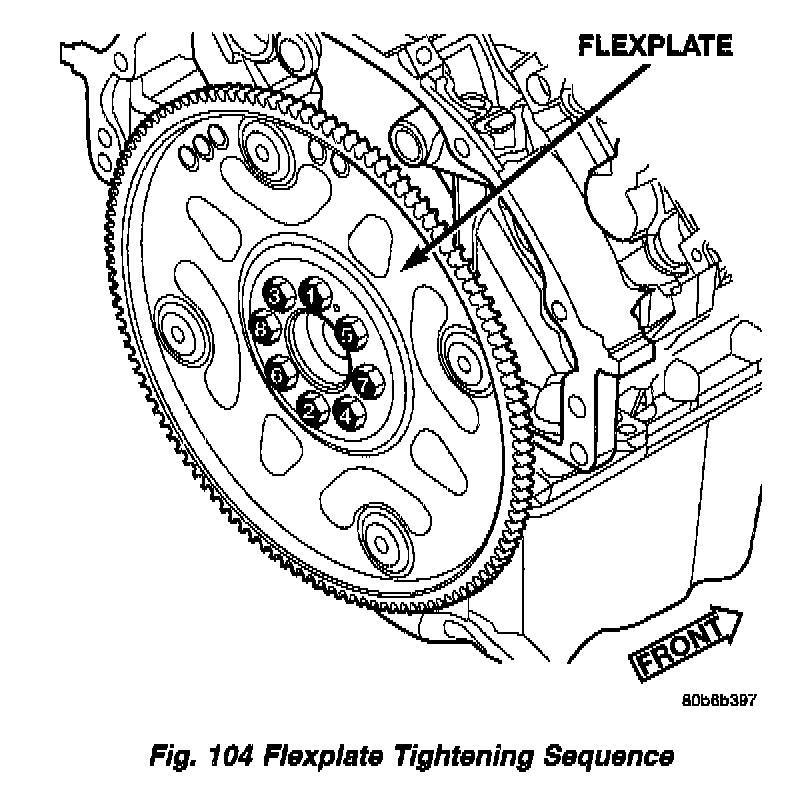

Fig. 104:

4.7 L
NOTE: Follow the tightening sequence in the figure provided.
Drive Plate-to-Crankshaft Bolts 75 Nm (55 ft. lbs.)
