Electrical Diagrams

Transmission Control System:

Fuse 5 (PDC)
Fuse 28 (PDC)
G104
Generator
Powertrain Control Module
Transmission Control Module
Transmission Control Relay
Transmission Solenoid
Transmission Solenoid/TRS Assembly

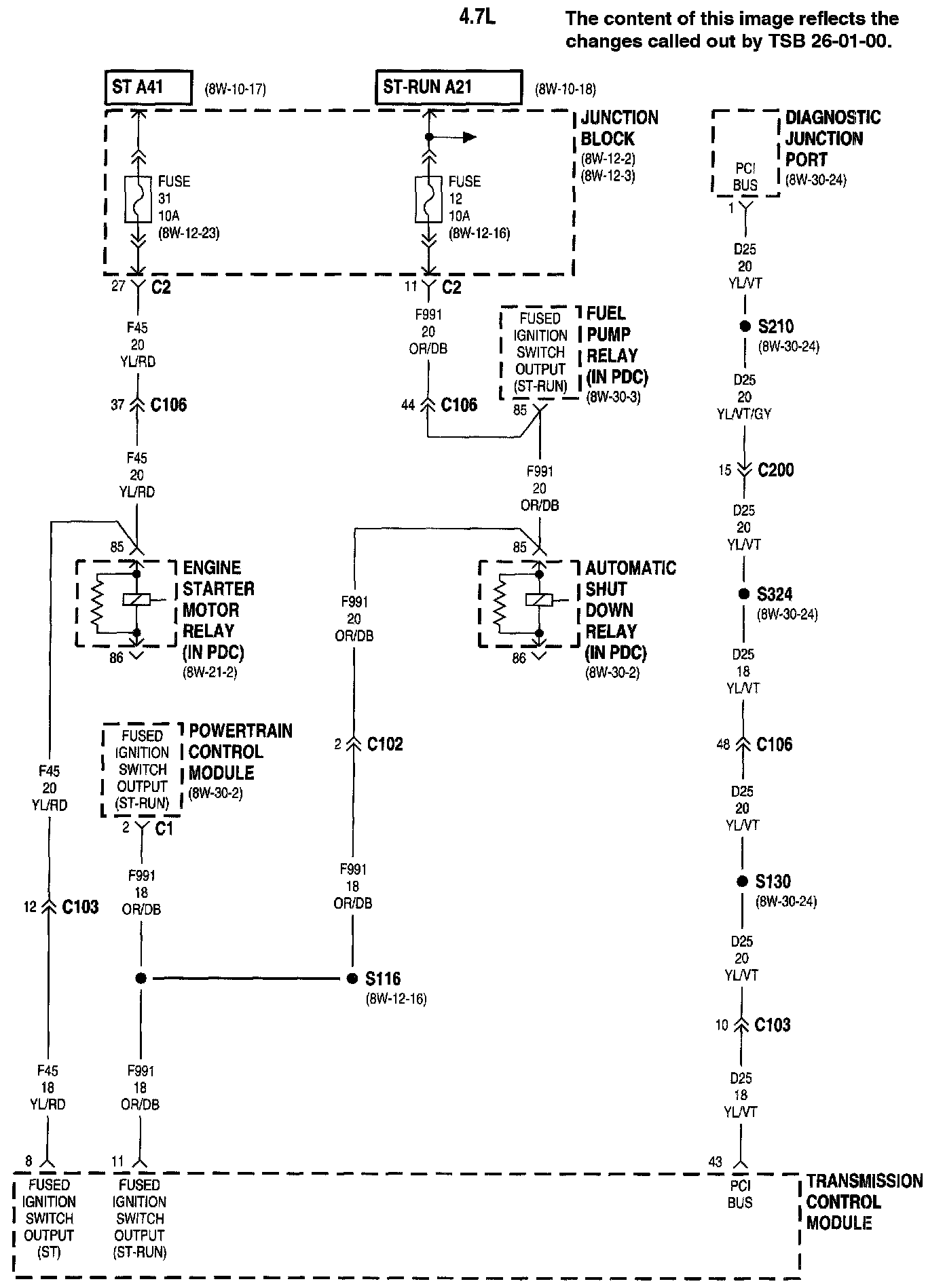

Transmission Control System:

Automatic Shut Down Relay
Diagnostic Junction Port
Engine Starter Motor Relay
Fuel Pump Relay
Fuse 12 (JB)
Fuse 31 (JB)
Junction Block
Powertrain Control Module
Transmission Control Module

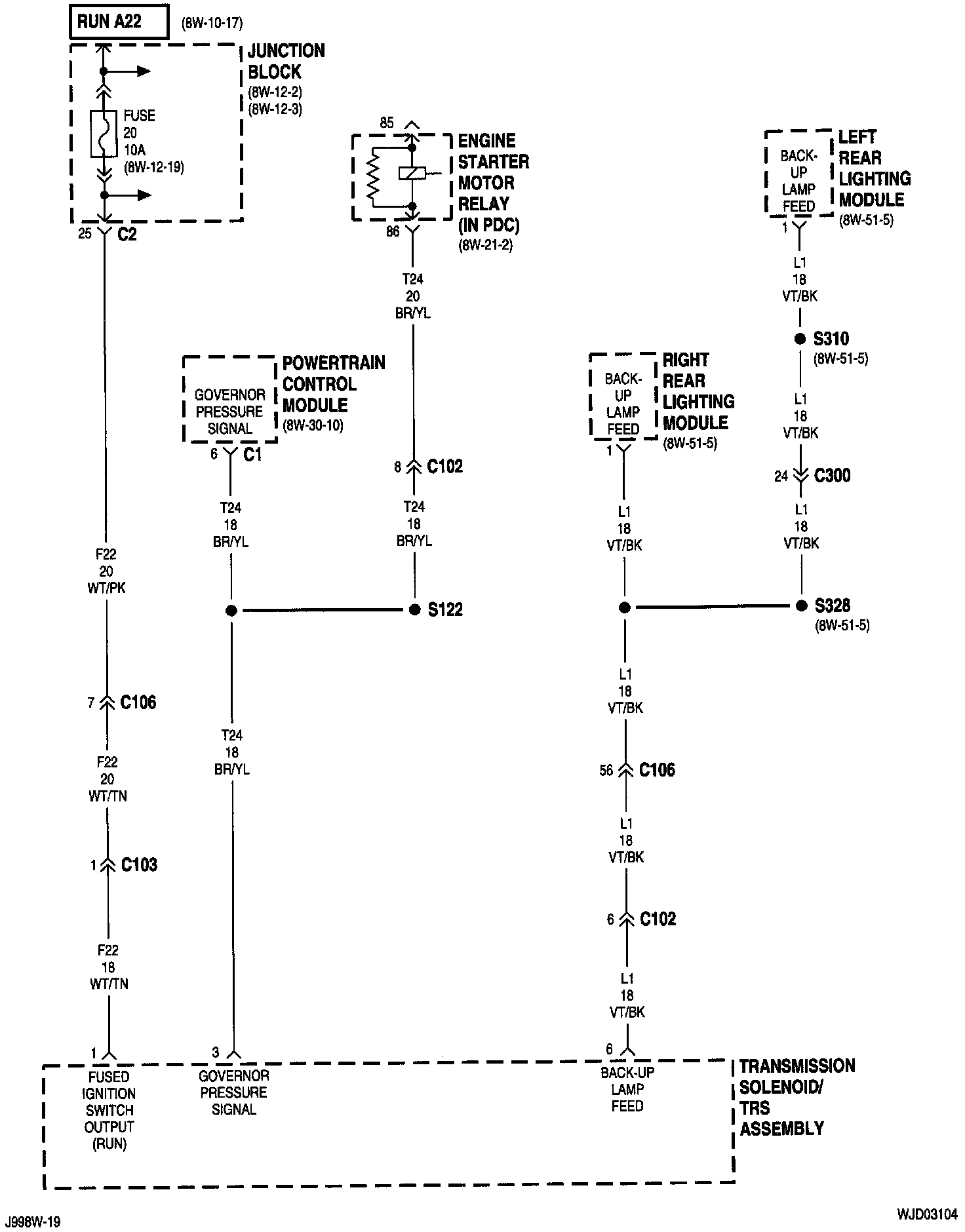

Transmission Control System:

Engine Starter Motor Relay
Fuse 20 (JB)
Junction Block
Left Rear Lighting Module
Powertrain Control Module
Right Rear Lighting Module
Transmission Solenoid/TRS Assembly

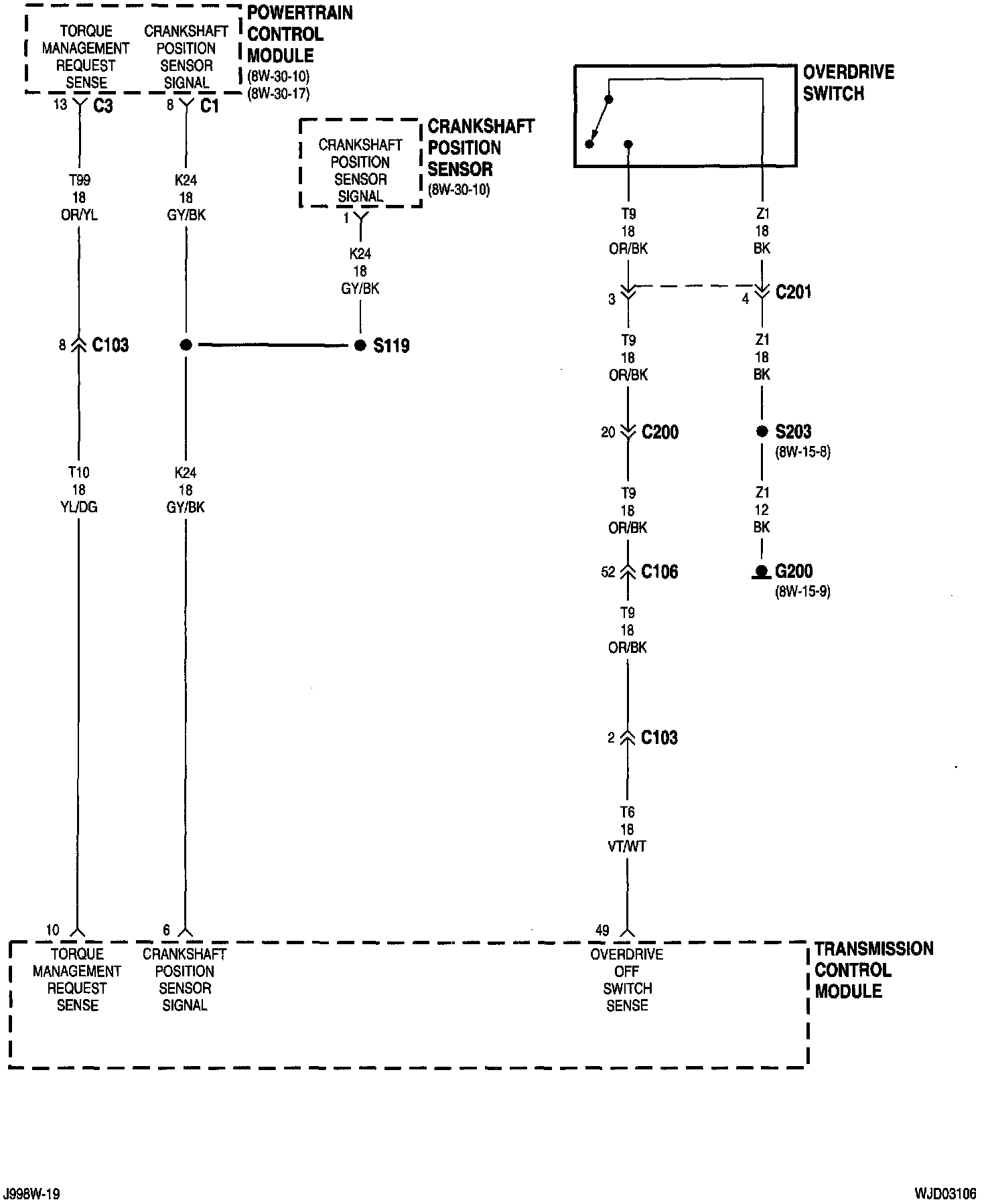

Transmission Control System:

Crankshaft Position Sensor
G200
Overdrive switch
Powertrain Control Module
Transmission Control Module

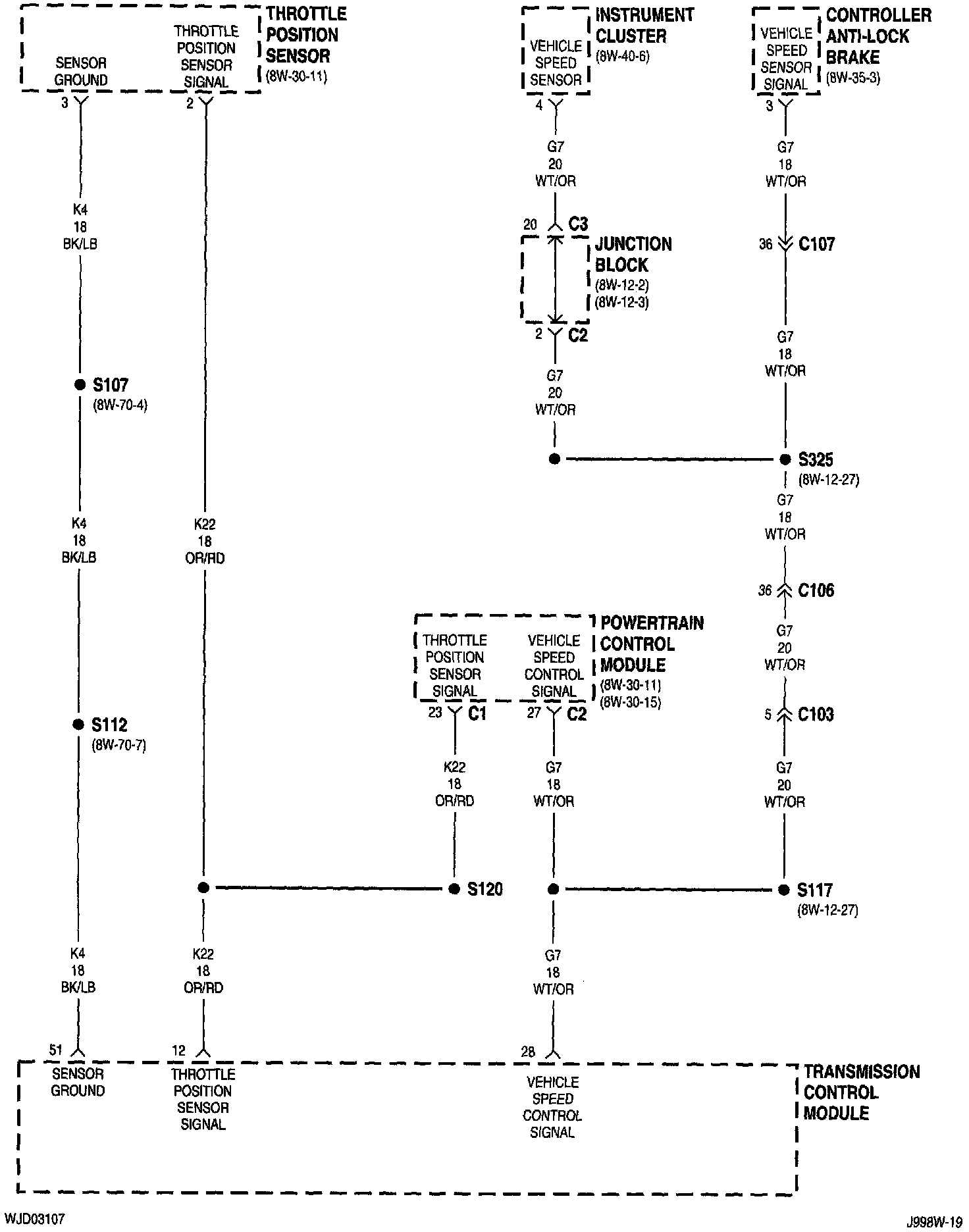

Transmission Control System:

Instrument Cluster
Junction Block
Powertrain Control Module
Throttle Position Sensor
Transmission Control Module

Transmission Control System:

Data Link Connector
G200
Overdrive switch
Powertrain Control Module
Transmission Control Module

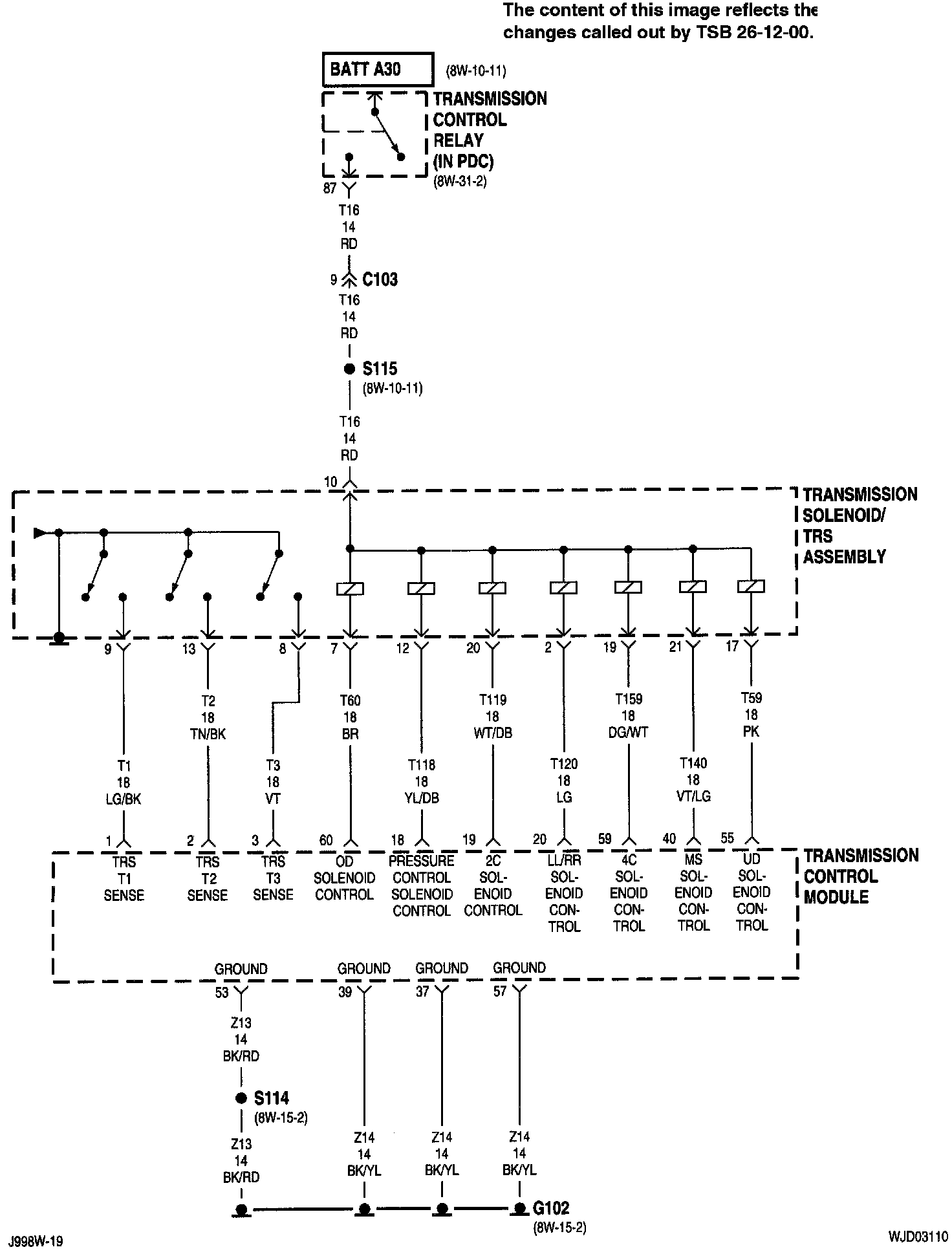

Transmission Control System:

G102
Transmission Control Module
Transmission Control Relay
Transmission Solenoid/TRS Assembly

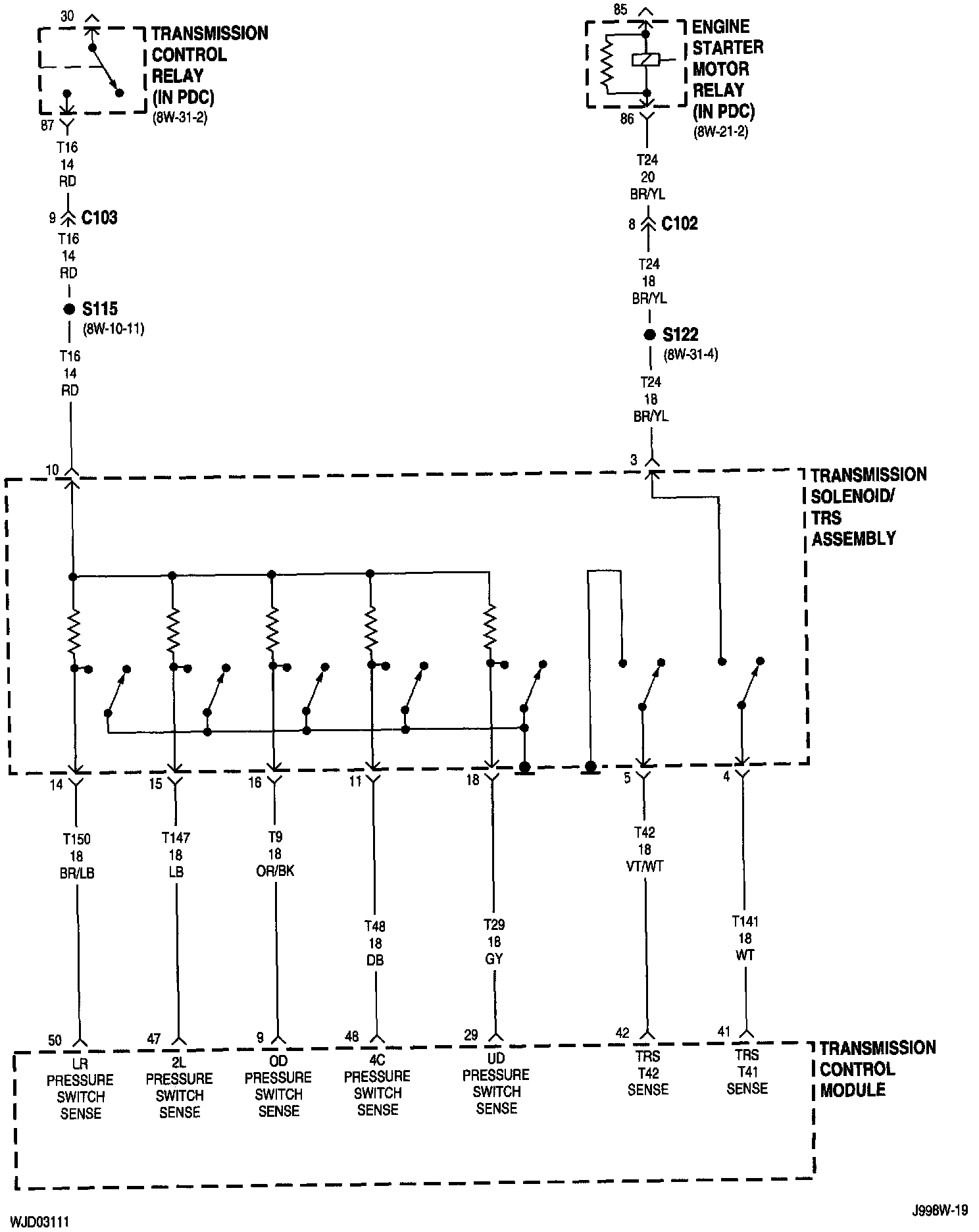

Transmission Control System:

Engine Starter Motor Relay
Transmission Control Module
Transmission Control Relay
Transmission Solenoid/TRS Assembly

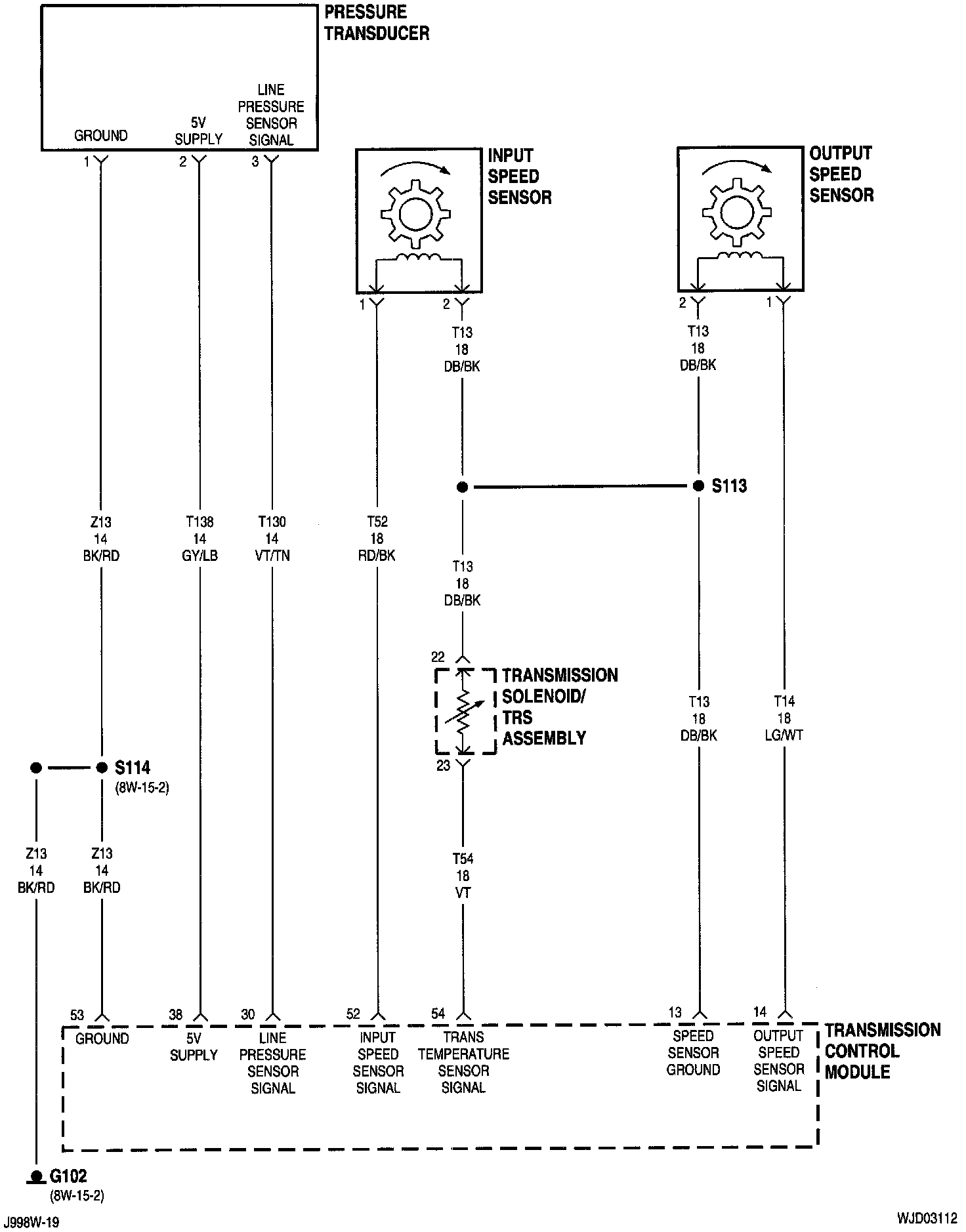

Transmission Control System:

G102
Input Speed Sensor
Output Speed Sensor
Pressure Transducer
Transmission Control Module
Transmission Solenoid/TRS Assembly


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number
