Brake Pedal Assy: Service and Repair

REMOVAL
1. Remove knee blocker under the steering column.

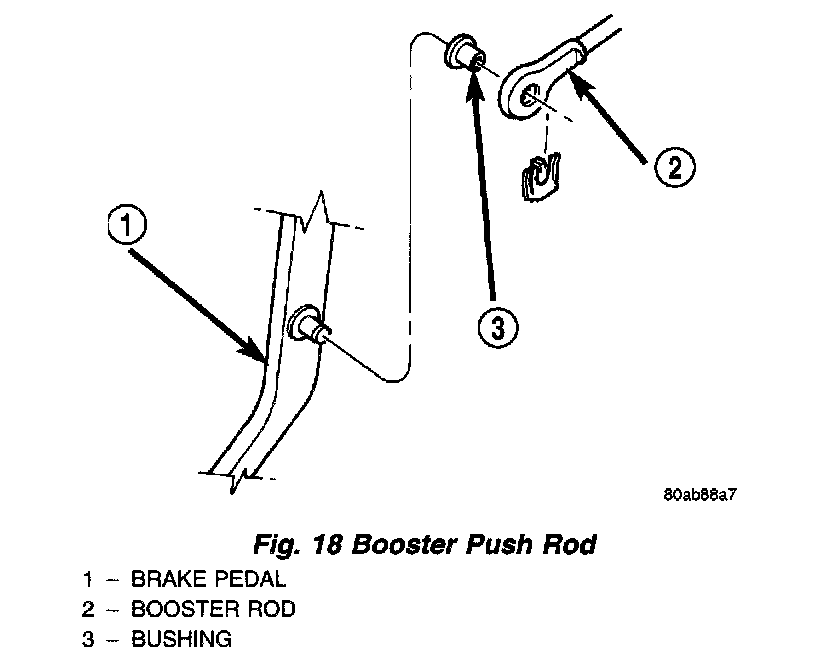

2. Remove retainer clip securing booster push rod to pedal.
3. Remove brake lamp switch.
4. Remove nuts securing the booster to the pedal support bracket and nuts to the column bracket.
5. Remove pedal and support bracket as an assembly from the vehicle.

INSTALLATION
1. Install pedal and support bracket as an assembly into the vehicle.
2. Install nuts securing the booster to the pedal support bracket and nuts to the column bracket.
3. Tighten nuts to 39 Nm (29 ft. lbs.).
4. Lubricate the brake pedal pin and bushings with Mopar multi-mileage grease.
5. Install booster push rod on pedal pin and install new retainer clip.
6. Install knee blocker.
