Automatic Day/Night Mirror Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.

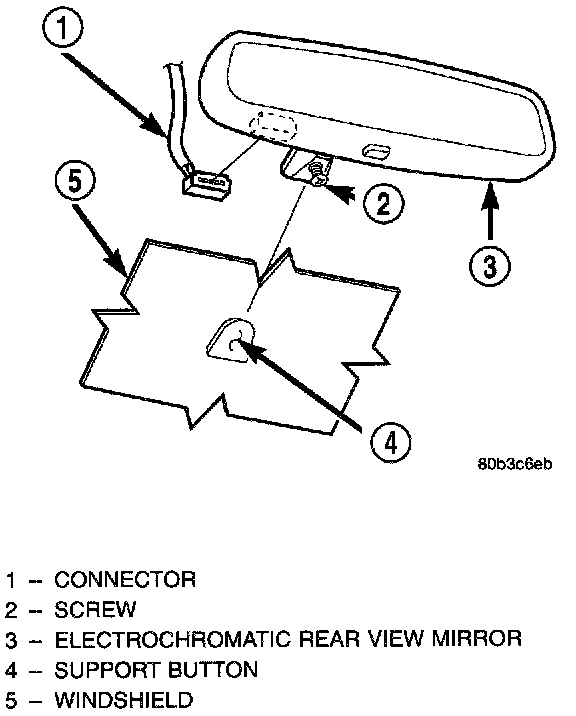

Automatic Day/Night Mirror Remove/Install - Typical:

2. Disconnect the overhead wire harness connector from the automatic day/night mirror connector receptacle.
3. Remove the screw that secures the automatic day/night mirror to the support button on the windshield.
4. Slide the automatic day/night mirror mounting base upwards far enough to clear the support button on the windshield.
5. Remove the automatic day/night mirror from the support button on the windshield.

INSTALLATION
1. Position the automatic day/night mirror above the support button on the windshield.
2. Slide the automatic day/night mirror mounting base downwards over the support button on the windshield.
3. Install and tighten the screw that secures the automatic day/night mirror to the support button on the windshield. Tighten the screw to 17 Nm (15 in. lbs.).
4. Reconnect the overhead wire harness connector to the automatic day/night mirror connector receptacle.
5. Reconnect the battery negative cable.
