Cruise Control Vacuum Reservoir: Service and Repair

Vacuum Reservoir Location:

The vacuum reservoir is located in the right/front corner of the vehicle behind the front bumper fascia.

REMOVAL
1. Remove front bumper and grill assembly.
2. Remove 1 support bolt near front of reservoir.
3. Remove 2 reservoir mounting bolts.

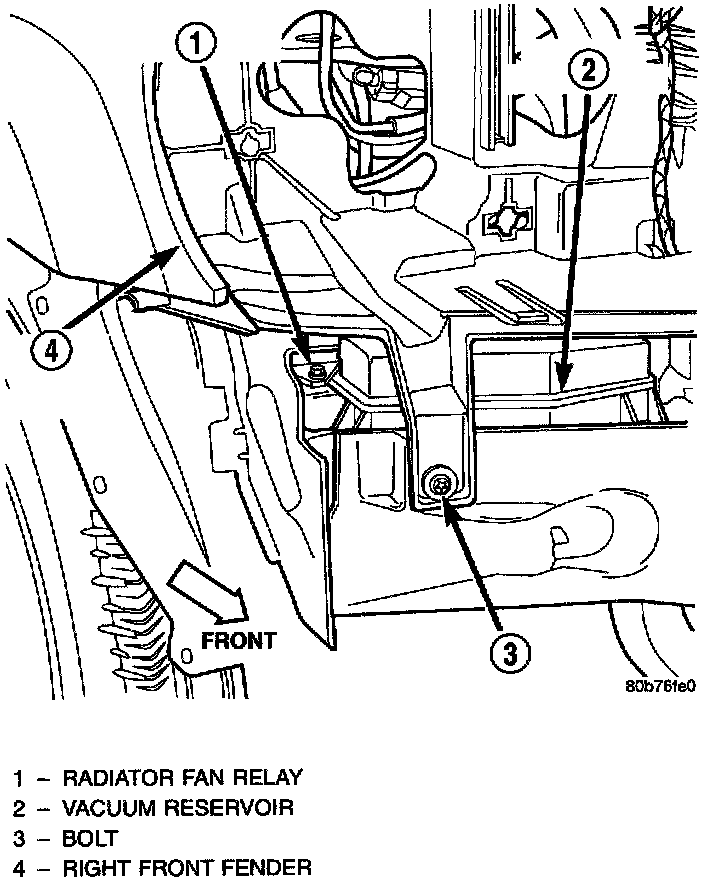

Vacuum Reservoir Remove/Installation:

4. Remove reservoir from vehicle to gain access to vacuum hose. Disconnect vacuum hose from reservoir fitting at rear of reservoir.

INSTALLATION
1. Connect vacuum hose to reservoir.
2. Install reservoir and tighten 2 bolts to 3 Nm (25 in. lbs.) torque.
3. Install front bumper and grill assembly.
