Grand Cherokee 2WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

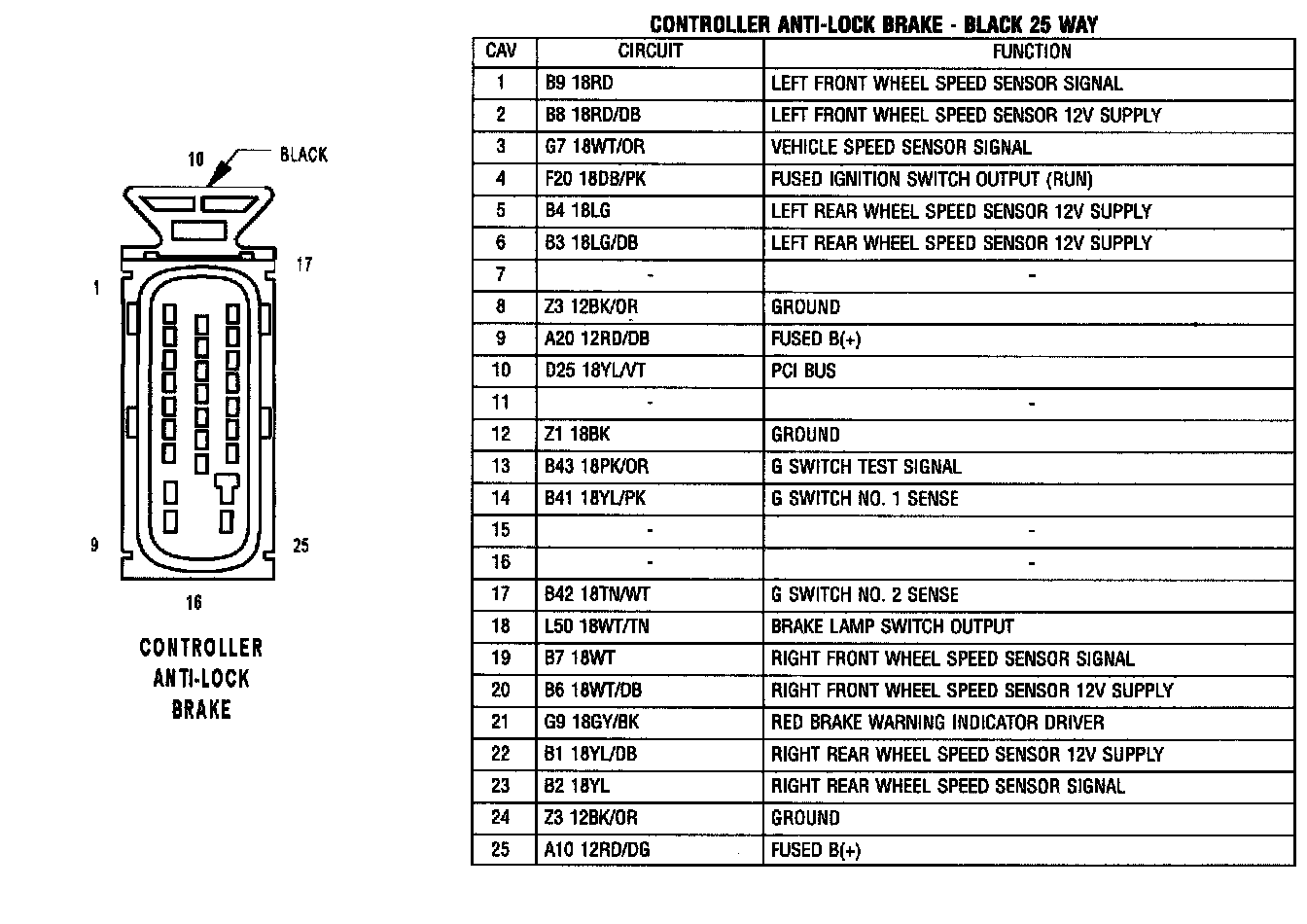

Controller Anti - Lock Brake:
