Grand Cherokee 2WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Switch
Power Seat Switch
Driver Power Seat Switch (Base):

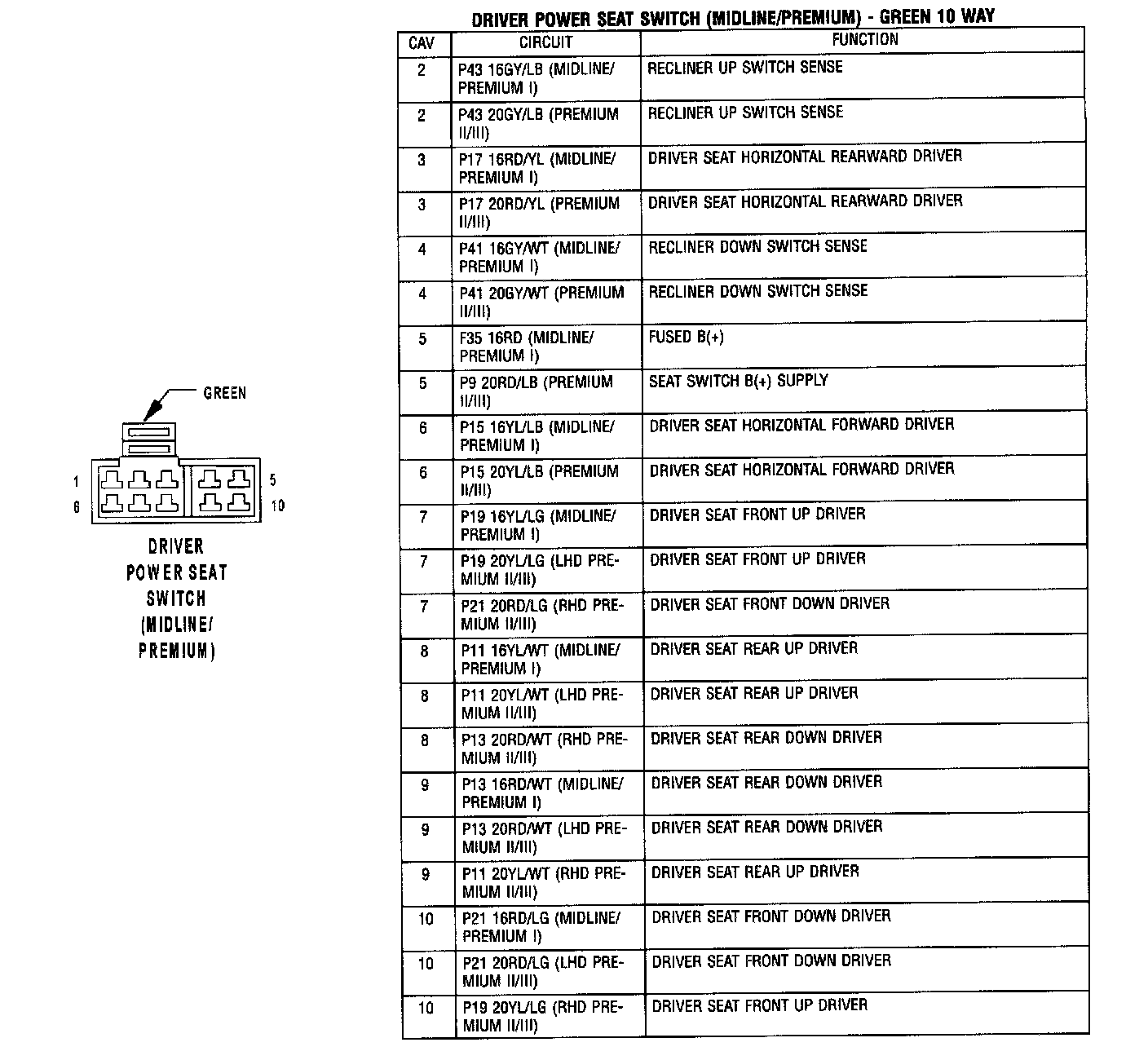

Driver Power Seat Switch (Midline/Premium):

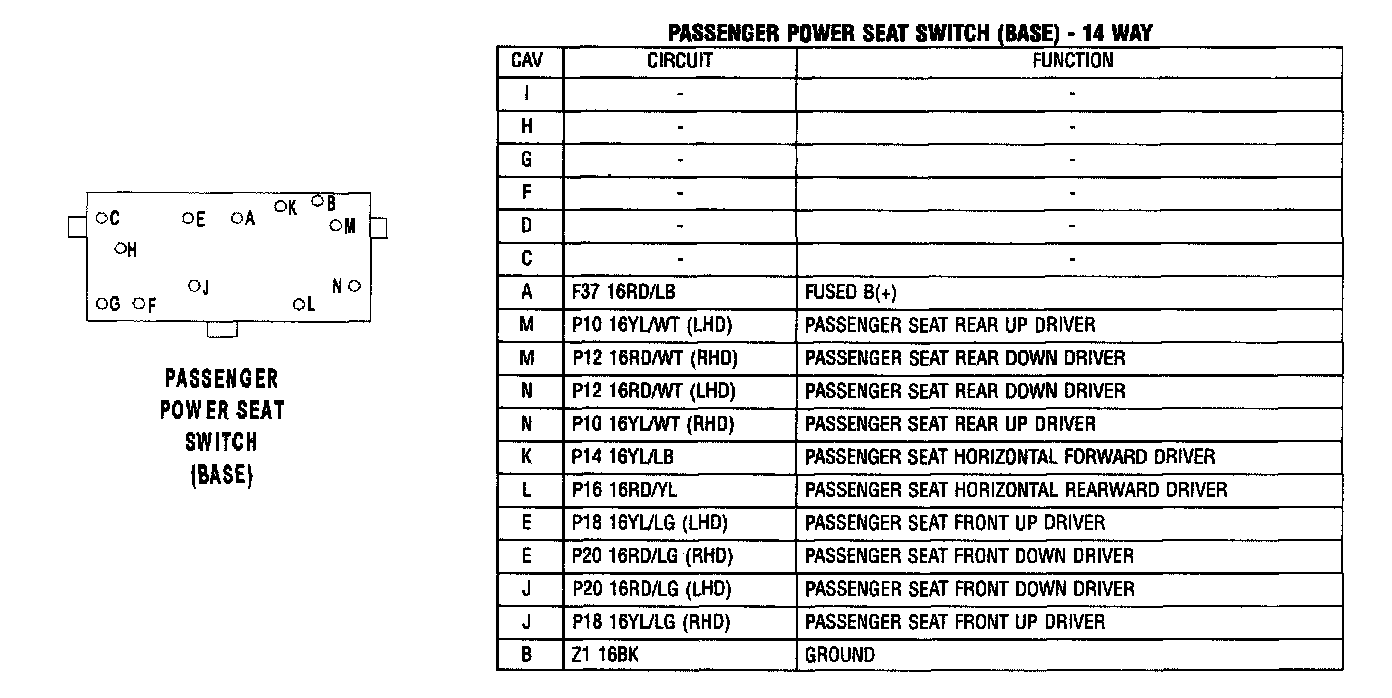

Passenger Power Seat Switch (Base):

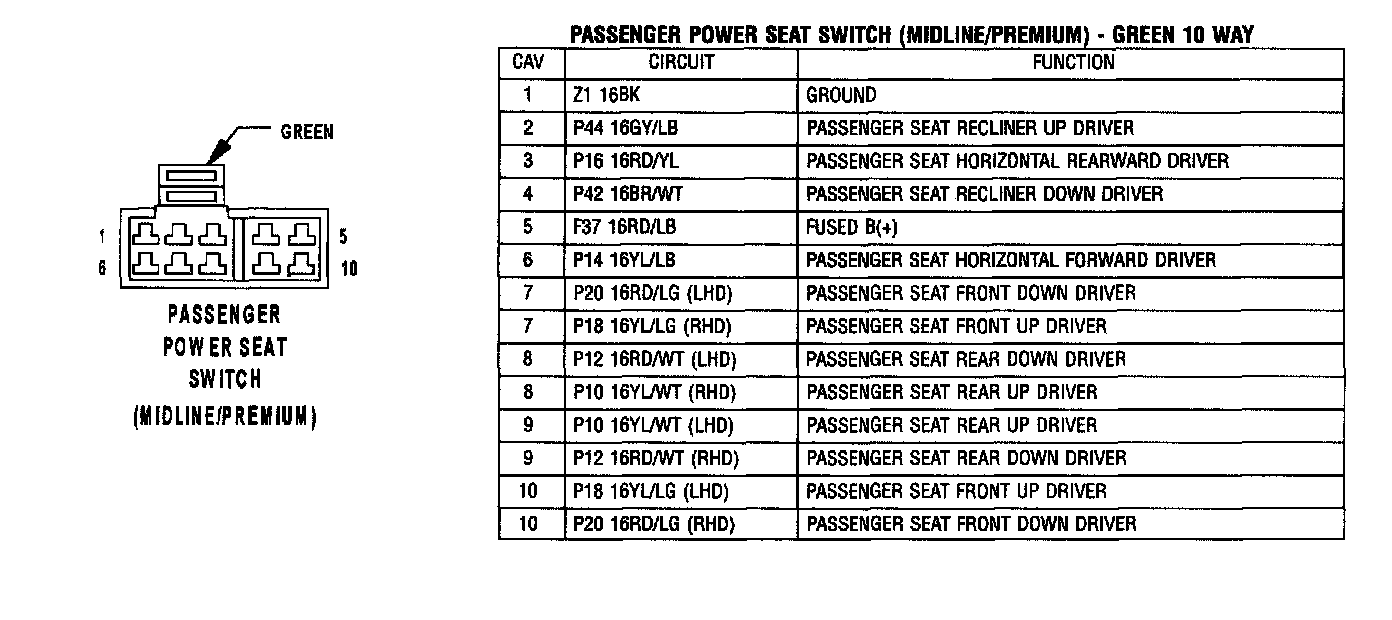

Passenger Power Seat Switch (Midline/Premium):
