Seat Temperature Element

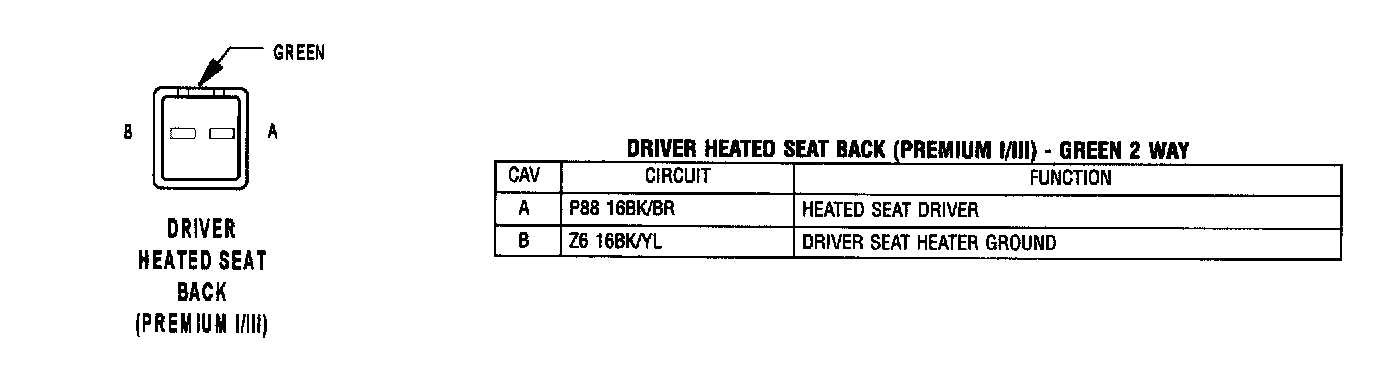

Driver Heated Seat Back (Premium I/II):



Passenger Heated Seat Back (Premium I/III):
