P1733

Test 1 Through 2:

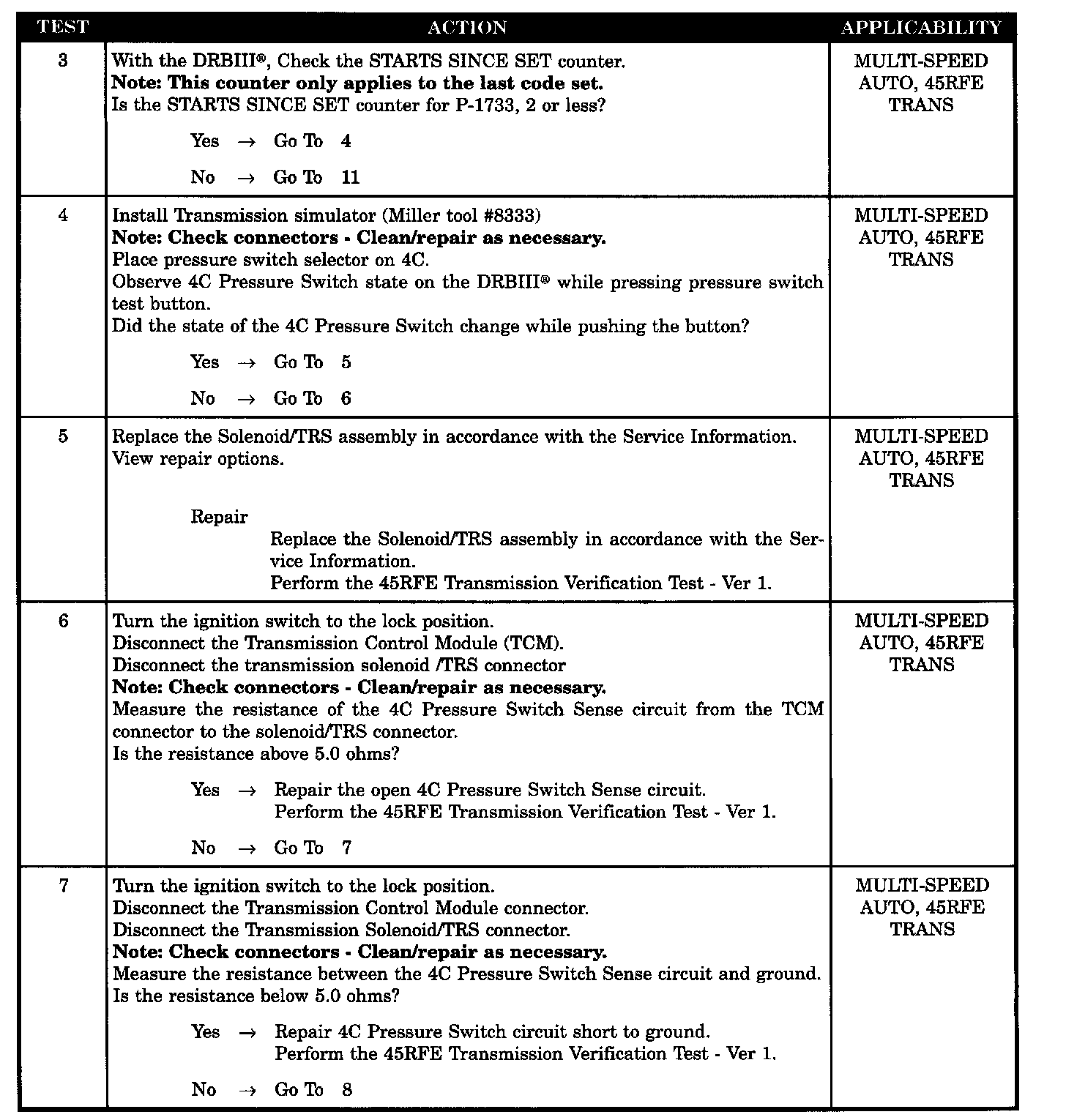

Test 3 Through 7:

Test 8 Through 11:

Symptom:
P1733-4C PRESSURE SWITCH SENSE CIRCUIT

When Monitored and Set Condition:
P17334C PRESSURE SWITCH SENSE CIRCUIT

When Monitored: Whenever the engine is running.

Set Condition: This DTC is set if the 4C pressure switch is in the wrong state for the current gear. For example, this code would be set if the 4C pressure switch came on while the transmission was in second gear.

Possible Causes:
RELATED RELAY DTC'S PRESENT
INTERMITTENT WIRING & CONNECTORS
4C PRESSURE SWITCH SENSE CIRCUIT OPEN
4C PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND
4C PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
TRANSMISSION RELAY OUTPUT CIRCUIT OPEN
4C PRESSURE SWITCH
TCM (4C PRESSURE SWITCH)
