Power Mirror Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the front door.

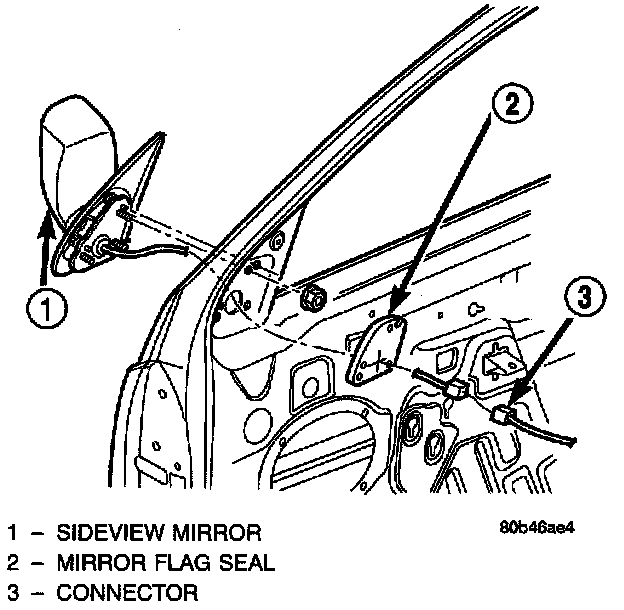

Power Mirror Remove/Install:

3. Disconnect the power mirror wire harness connector from the door wire harness connector.
4. Remove the mirror flag seal from the inner door panel.
5. Remove the three nuts that secure the power mirror mounting studs to the door flag.
6. Remove the power mirror from the outside of the door.

INSTALLATION
1. Position the power mirror onto the outside of the door.
2. Install and tighten the three nuts that secure the power mirror mounting studs to the door flag. Tighten the nuts to 7.4 Nm (65 in. lbs.).
3. Install the mirror flag seal onto the inner door panel.
4. Reconnect the power mirror wire harness connector to the door wire harness connector.
5. Install the trim panel onto the front door.
6. Reconnect the battery negative cable.
