Diagrams
>>
Connector Views
>>
Door Module
Door Module

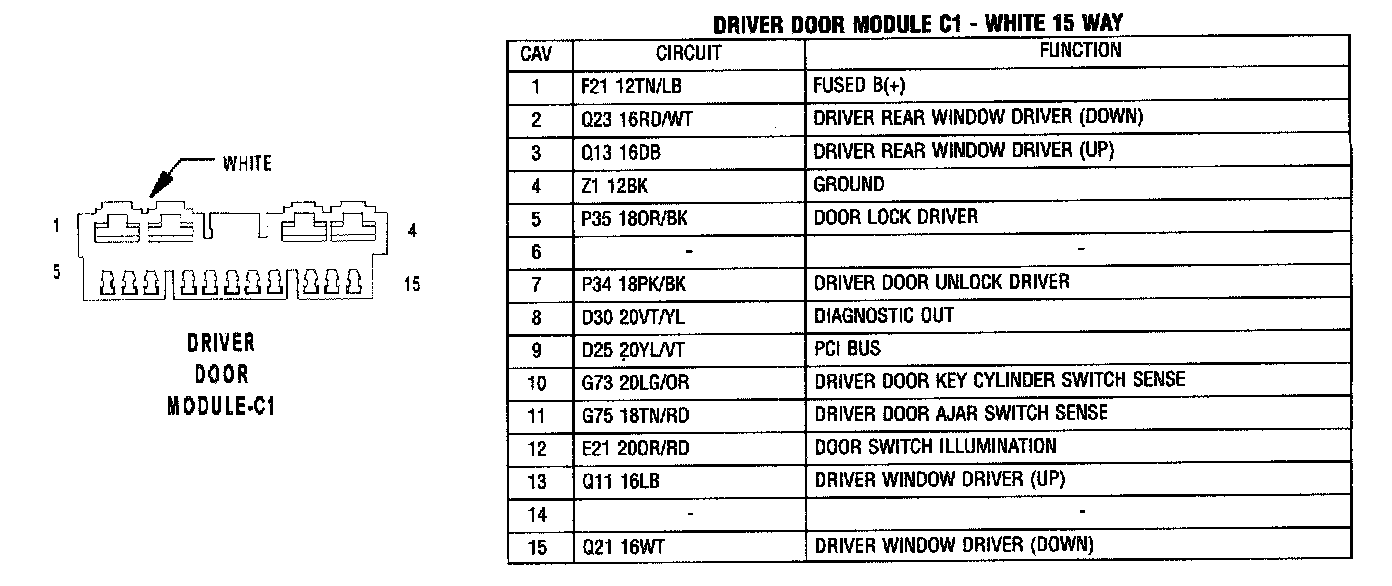

Driver Door Module - C1:

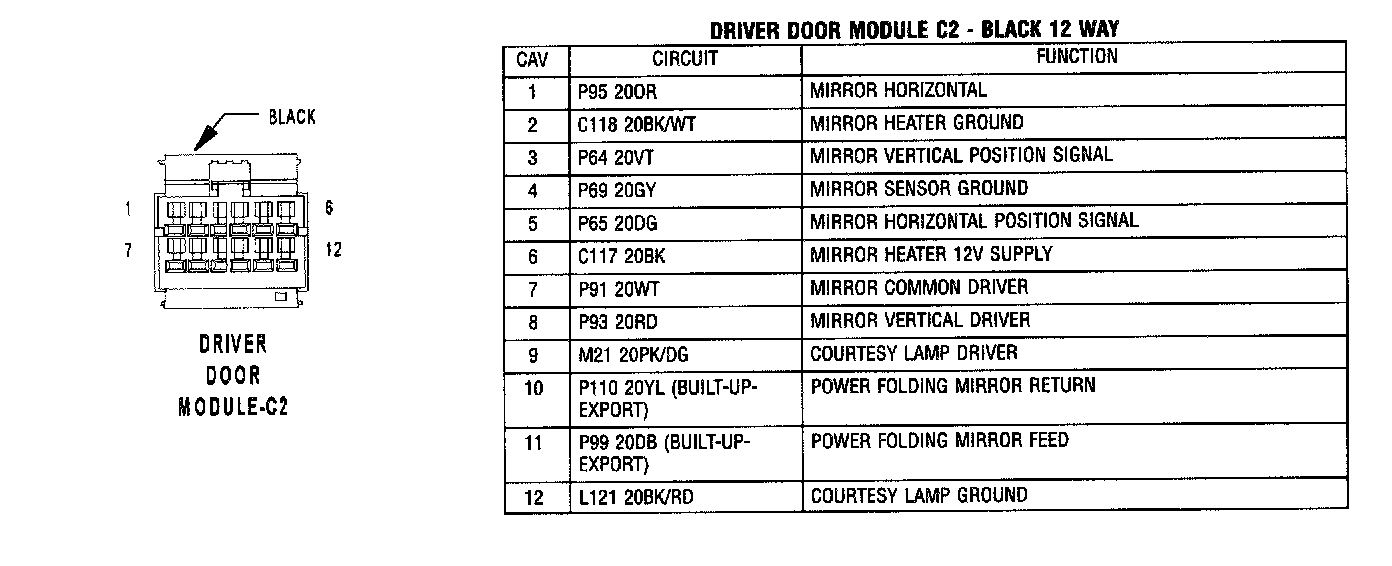

Driver Door Module - C2:

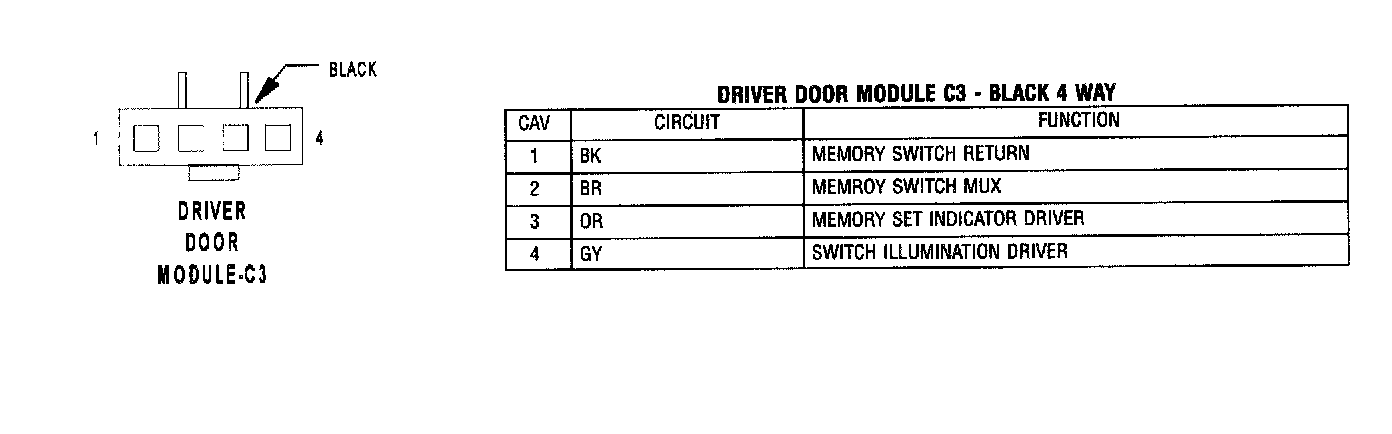

Driver Door Module - C3:

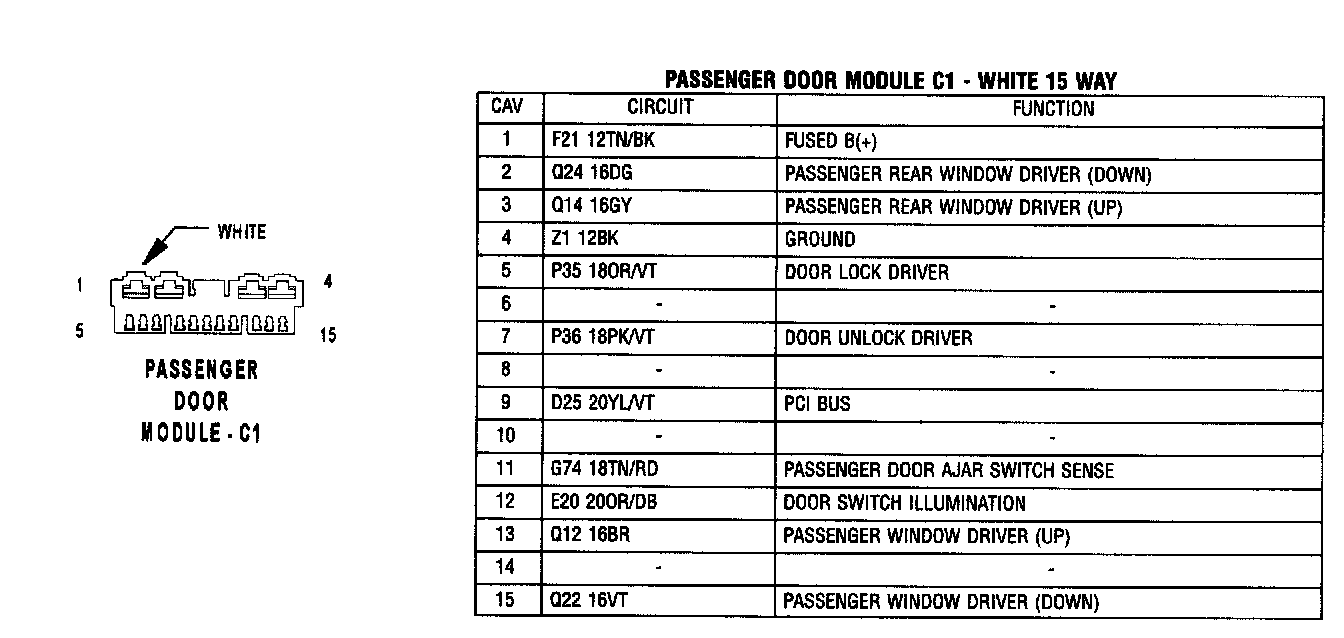

Passenger Door Module - C1:

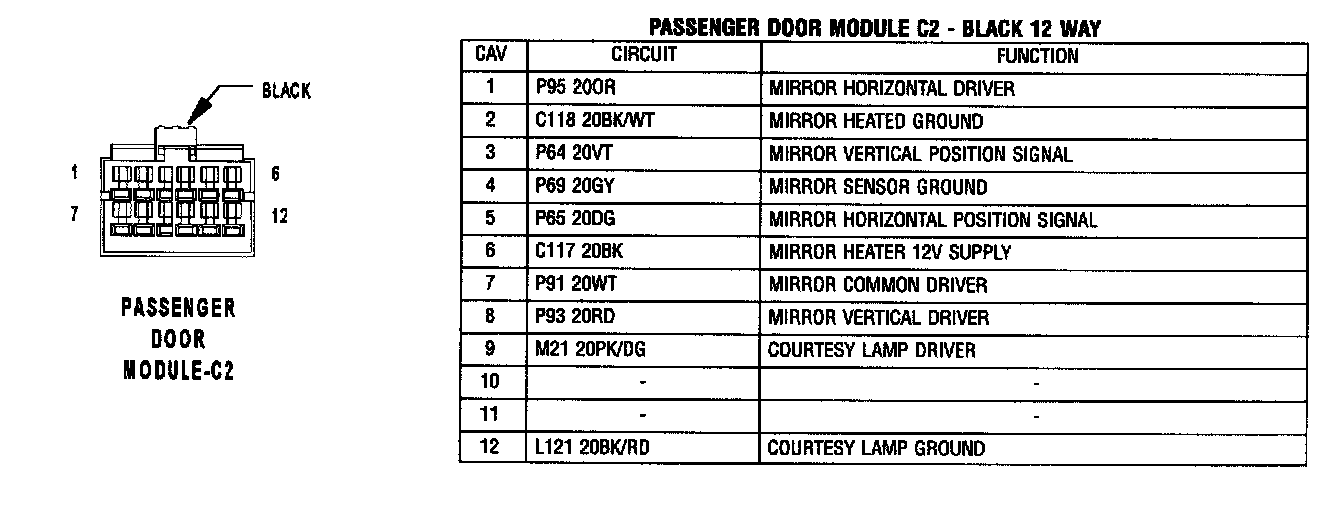

Passenger Door Module - C2:
