Grand Cherokee 2WD V8-4.7L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
Door Switch

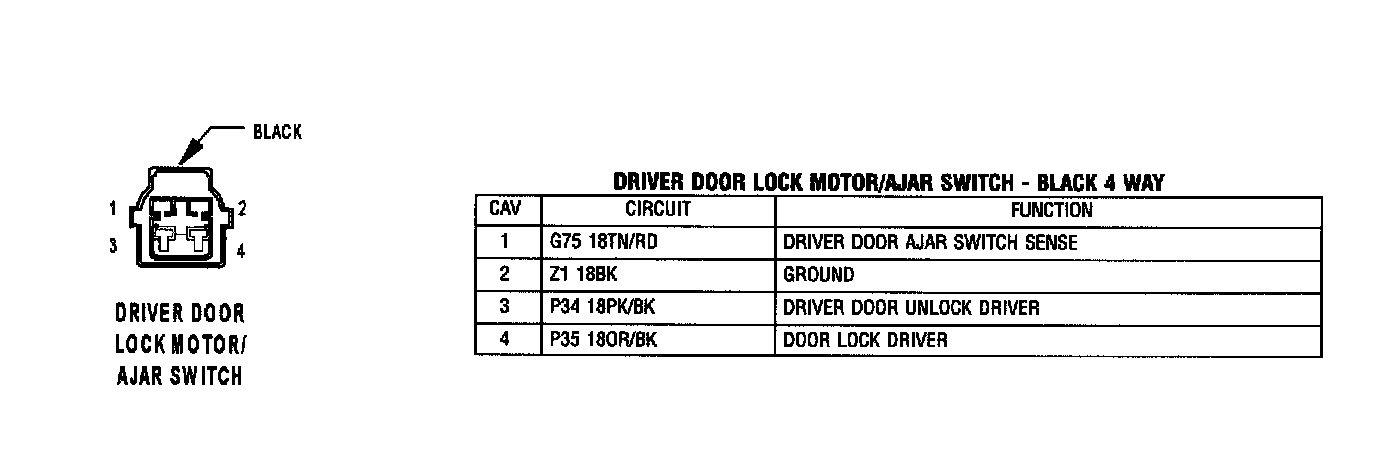

Driver Door Lock Motor/Ajar Switch:

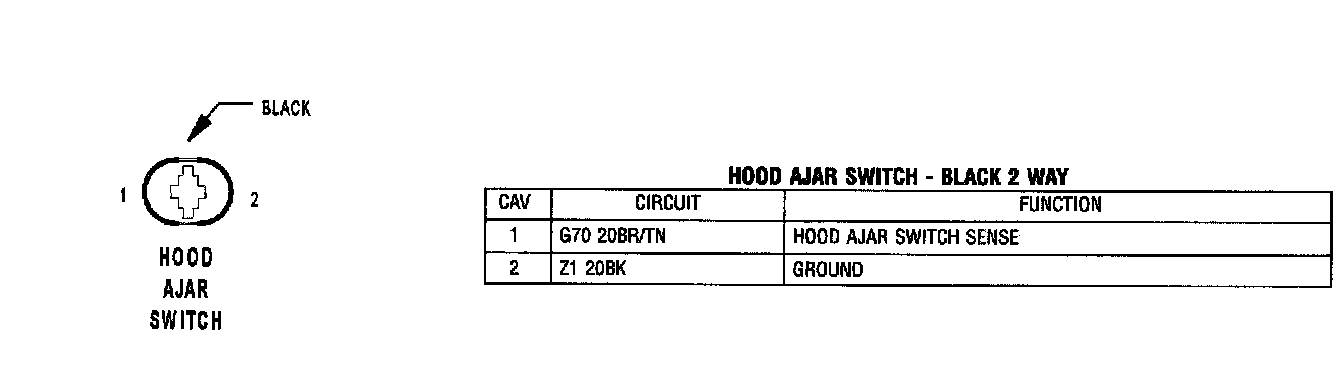

Hood Ajar Switch:

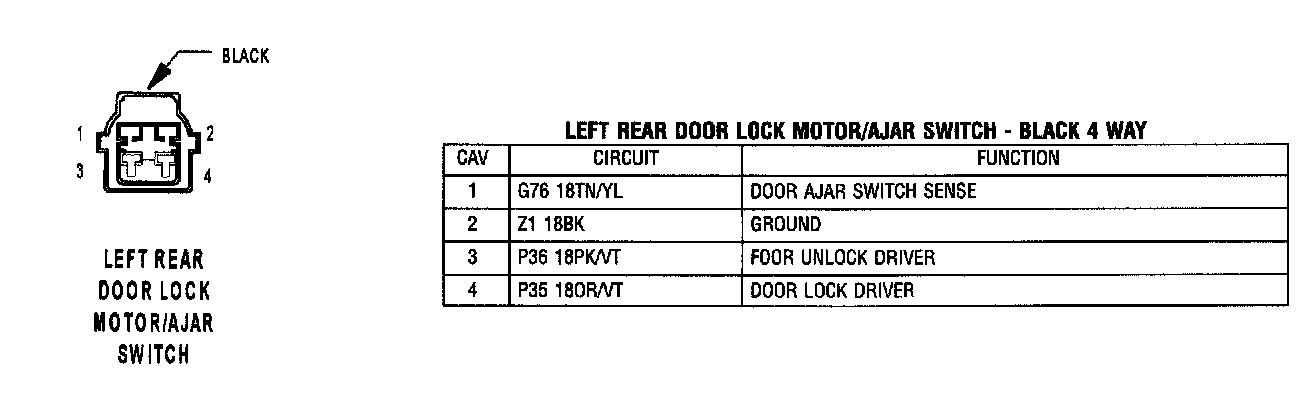

Left Rear Door Lock Motor/Ajar Switch:

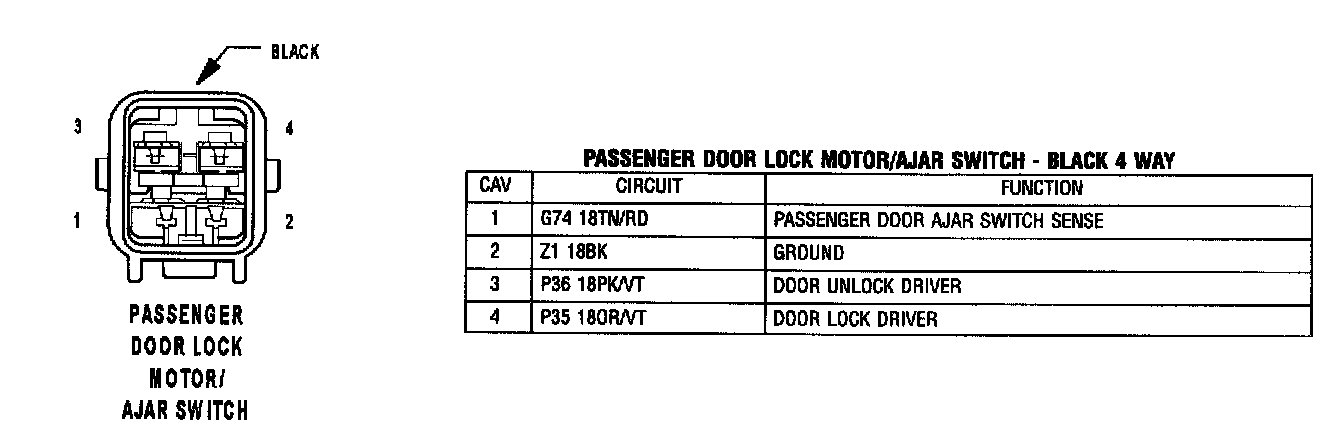

Passenger Door Lock Motor/Ajar Switch:

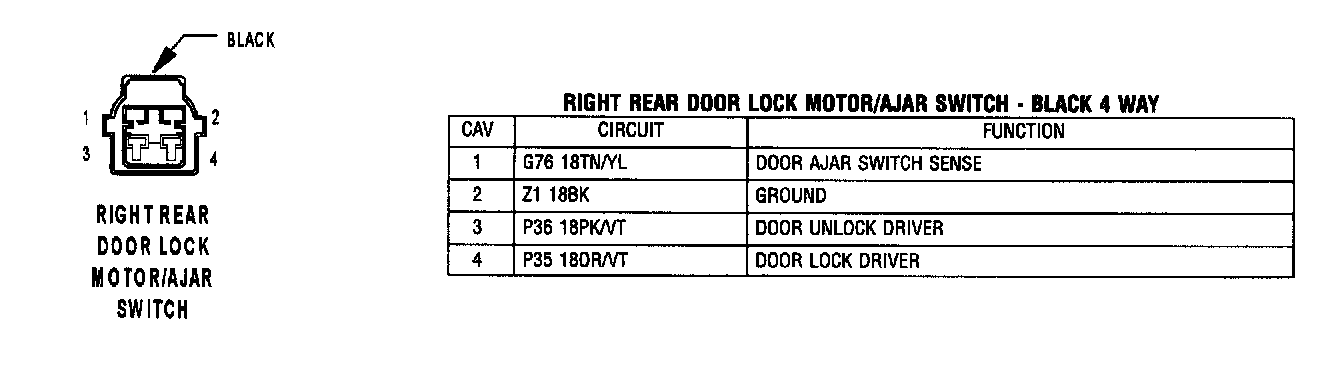

Right Rear Door Lock Motor/Ajar Switch:
