Fluid Pressure Sensor/Switch, A/T
Fluid Pressure Sensor/Switch, A/T

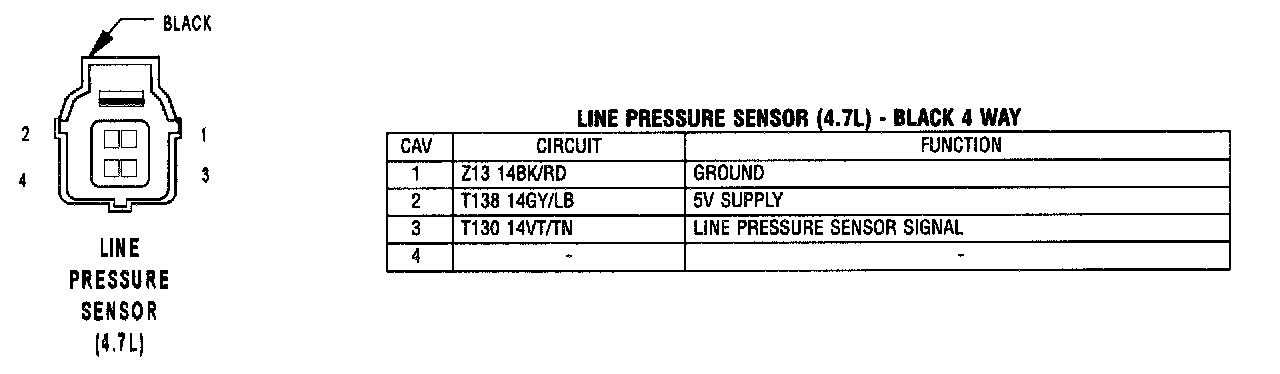

Line Pressure Sensor (4.7L) - Black 4 Way:
