Speaker
Speaker

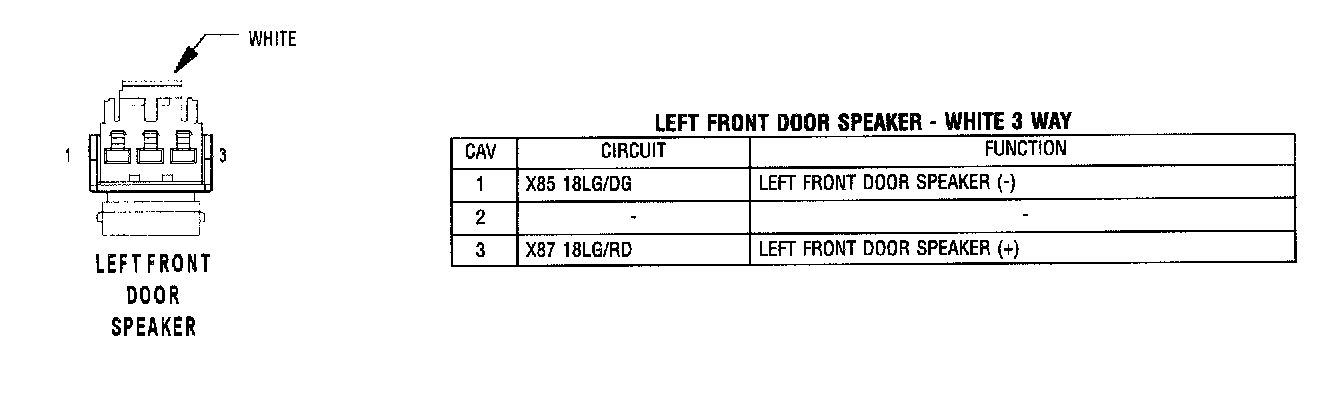

Left front Door Speaker:

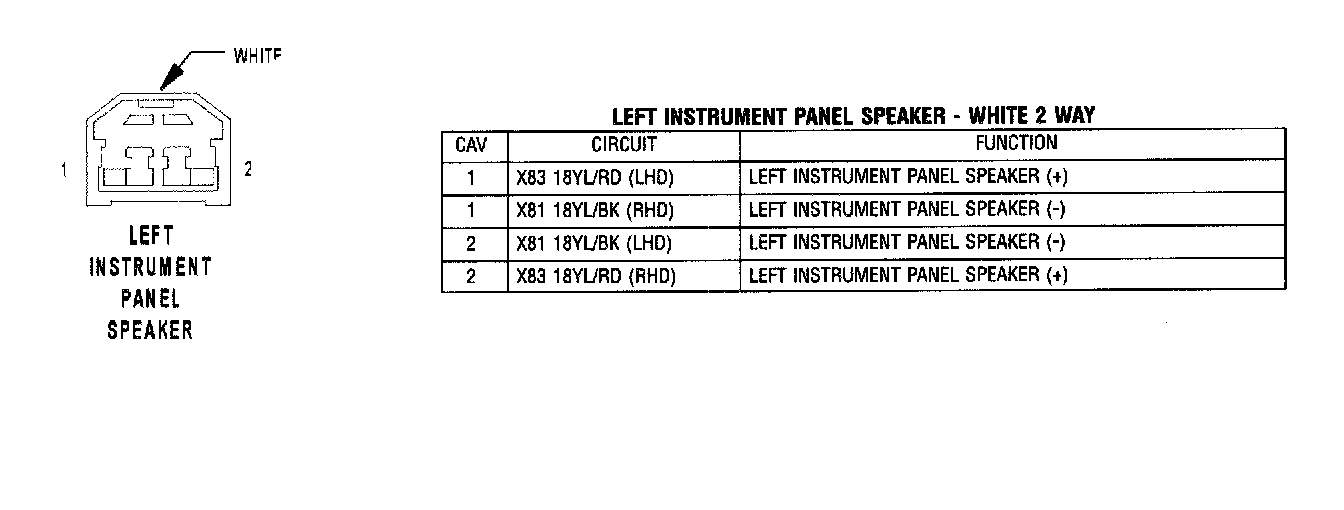

Left Instrument Panel Speaker:

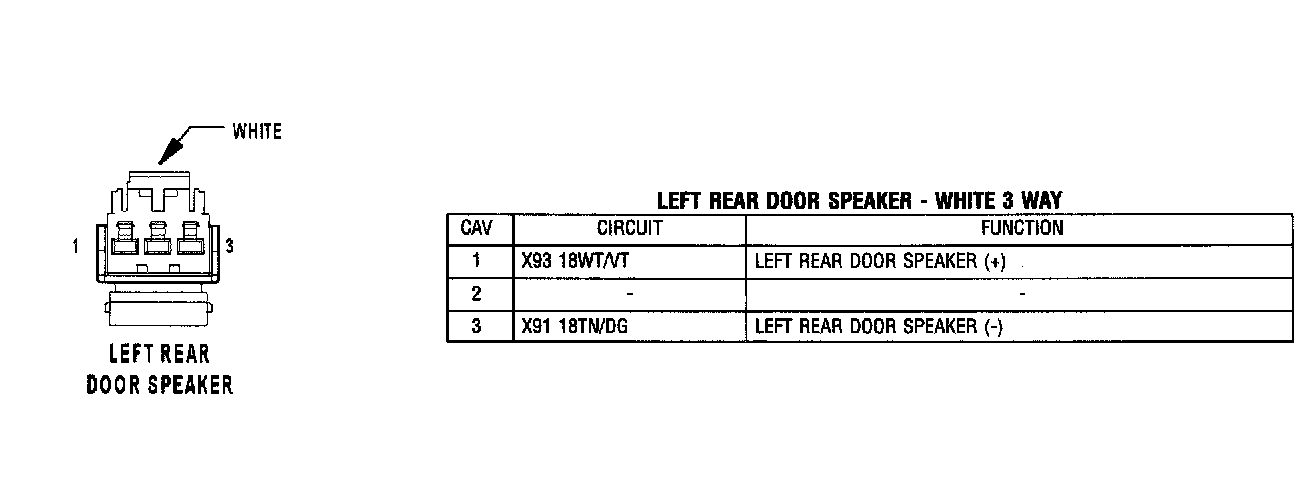

Left Rear Door Speaker:

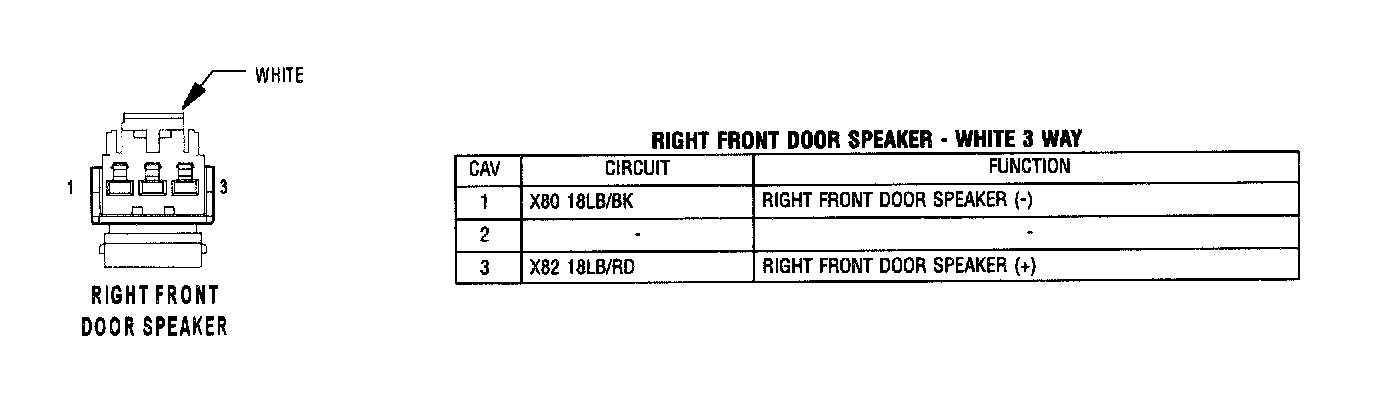

Right Front Door Speaker:

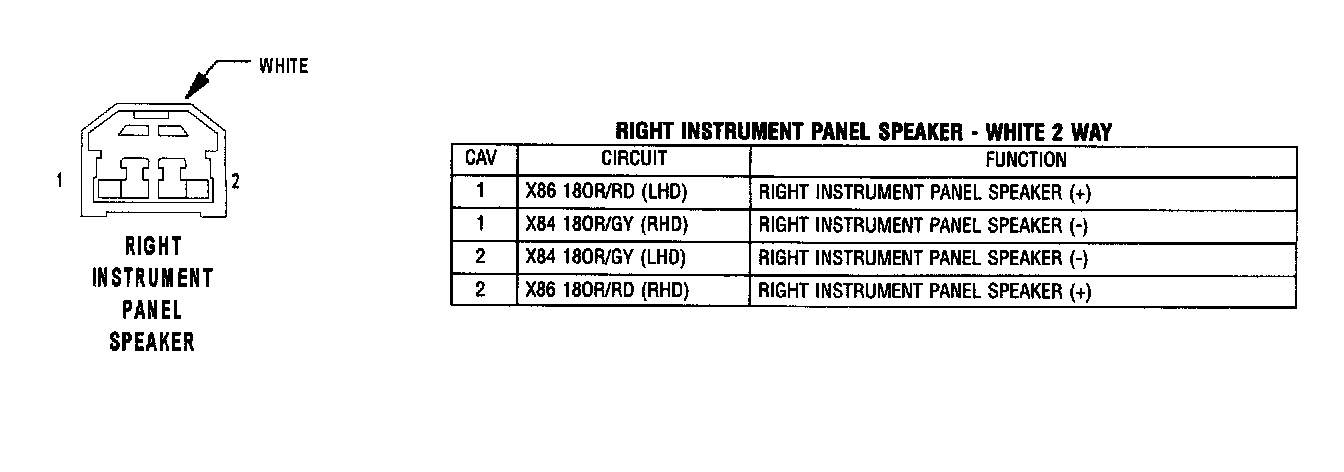

Right Instrument Panel Speaker:

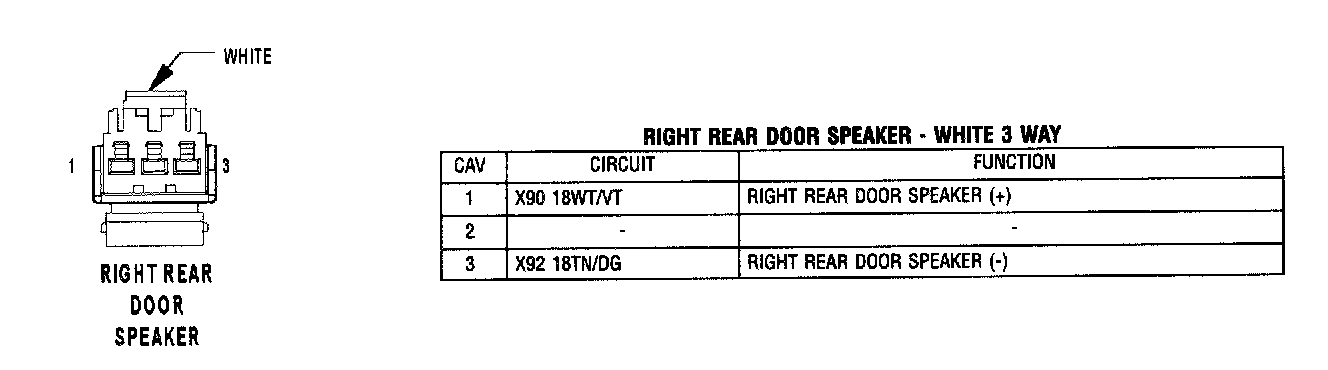

Right Rear Door Speaker:
