Connector Views
Connector Views

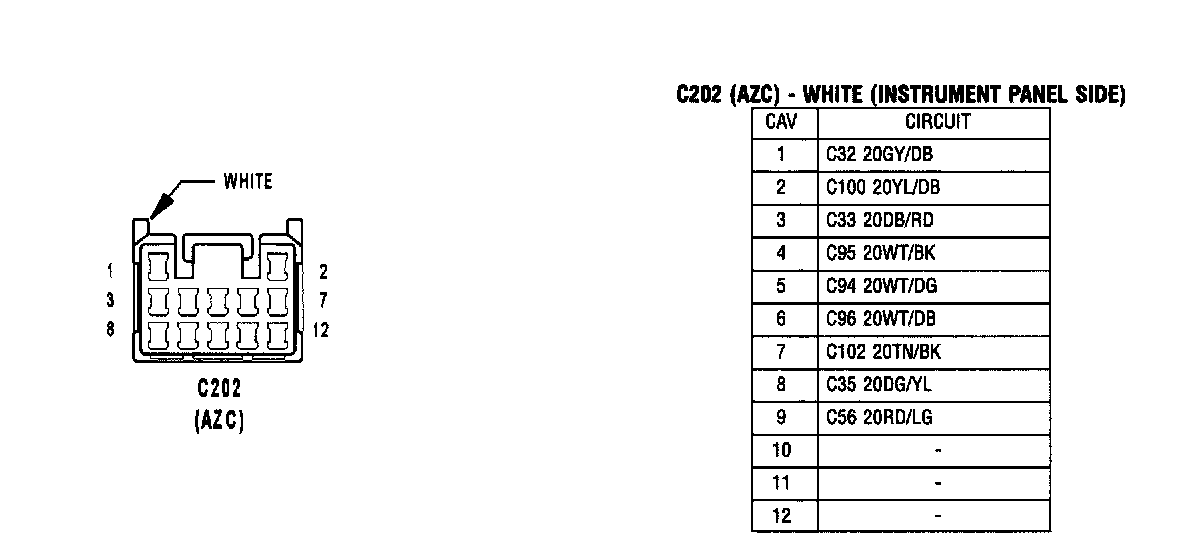

C202 (AZC):

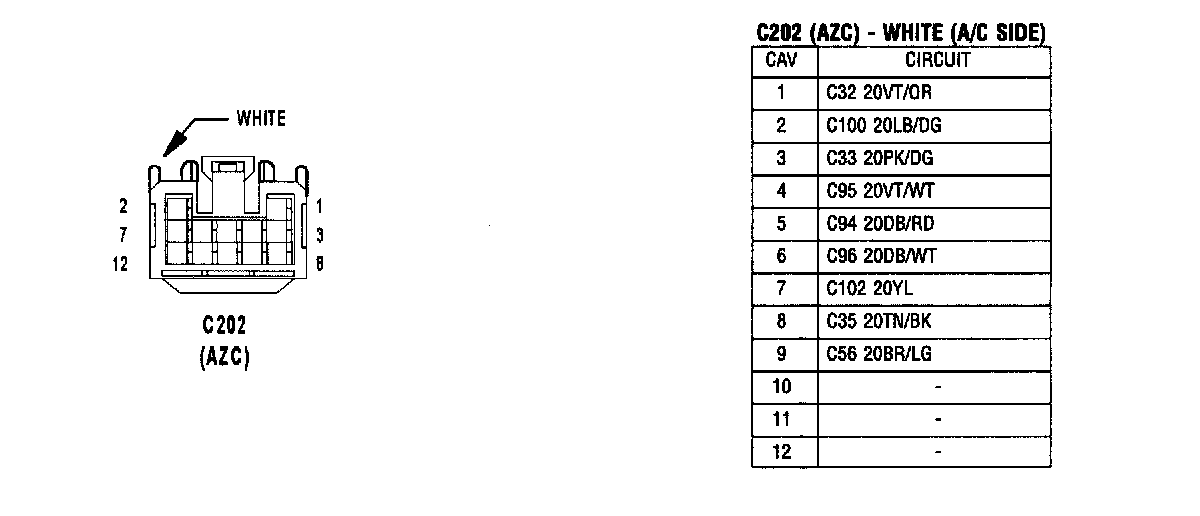

C202 (AZC):

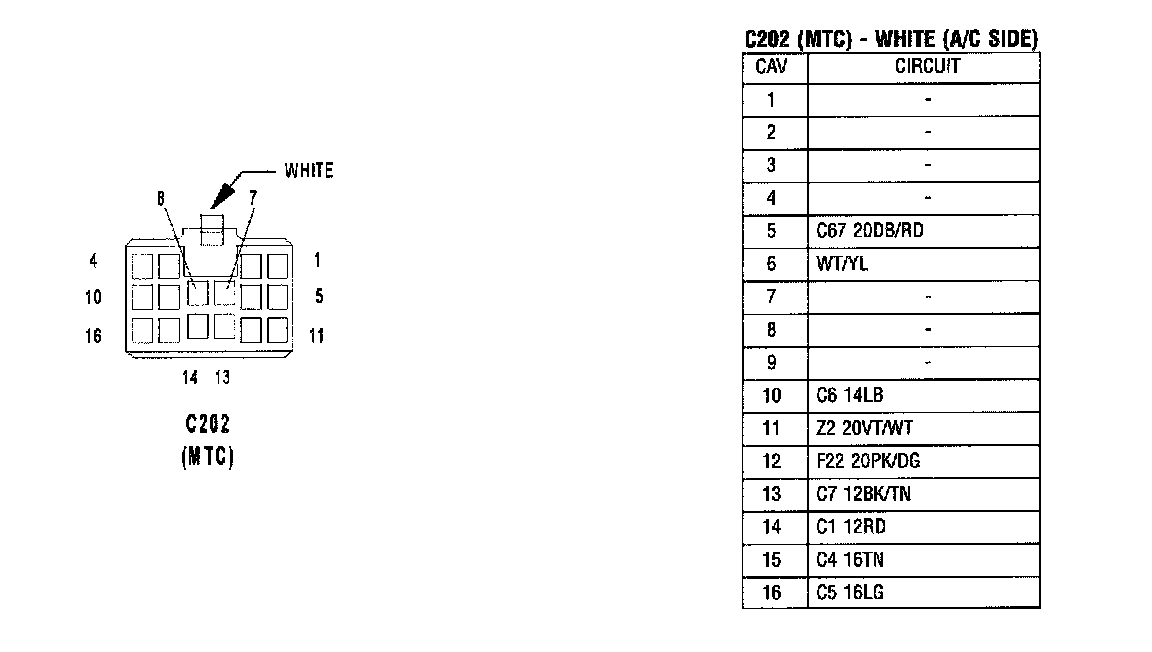

C202 (MTC):

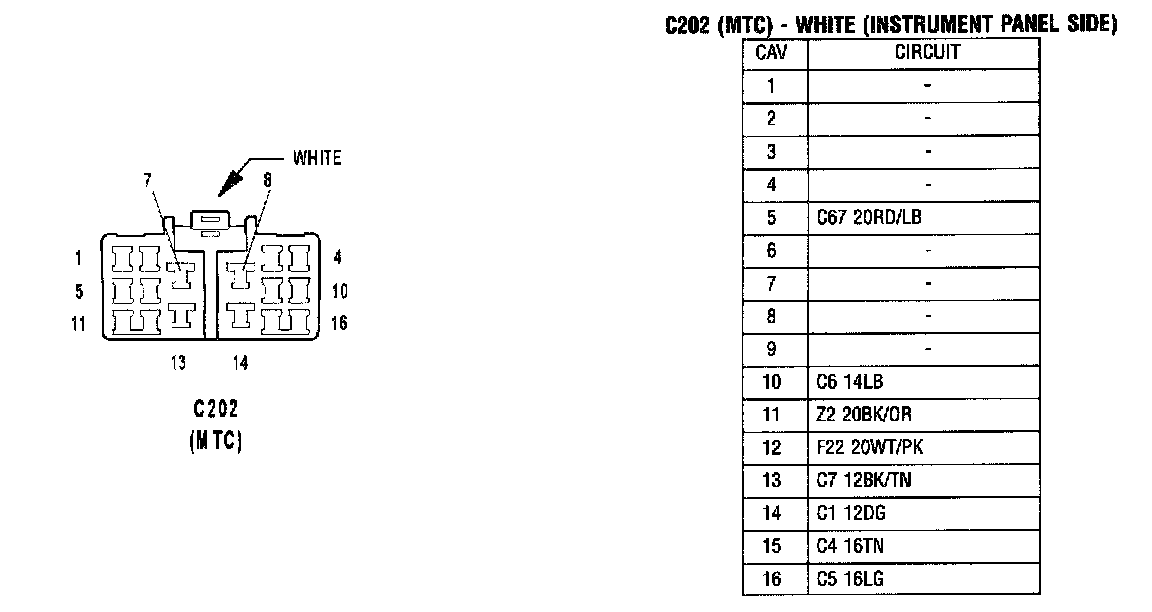

C202 (MTC):

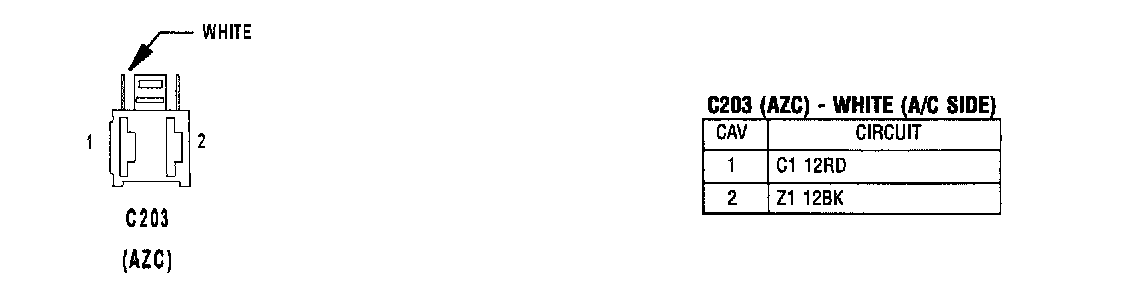

C203 (AZC):

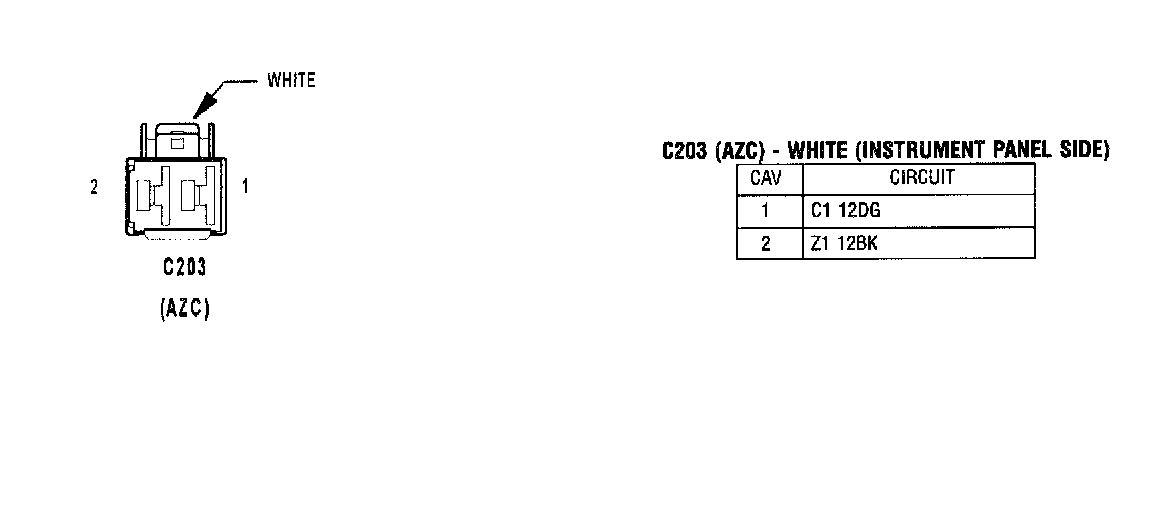

C203 (AZC):
