Grand Cherokee 2WD V8-4.7L VIN N
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

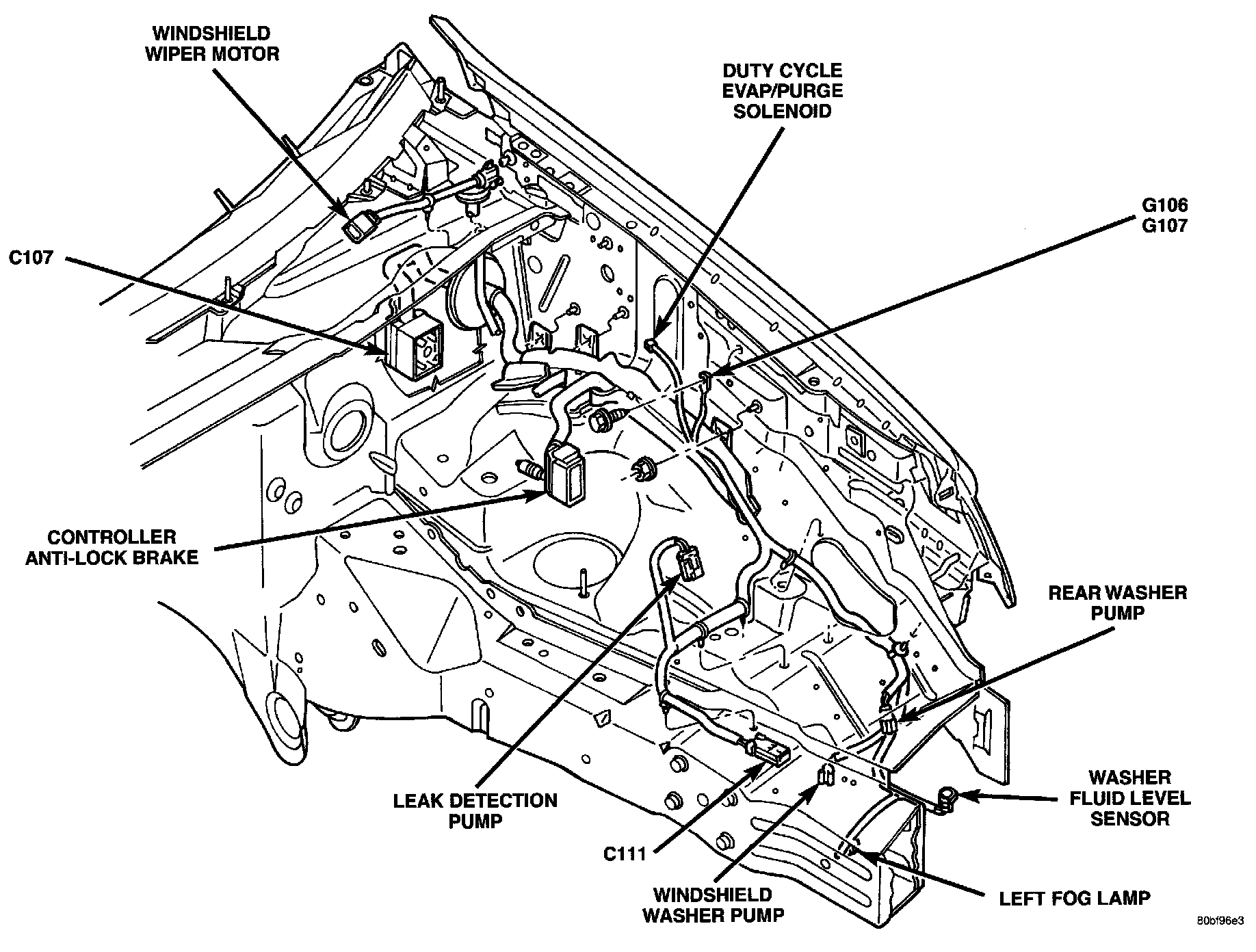

Figure 9
Figure 9
Left Headlamp And Dash Connectors:
