Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2000
>>
Grand Cherokee 2WD V8-4.7L VIN N
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Power Distribution Center
Power Distribution Center

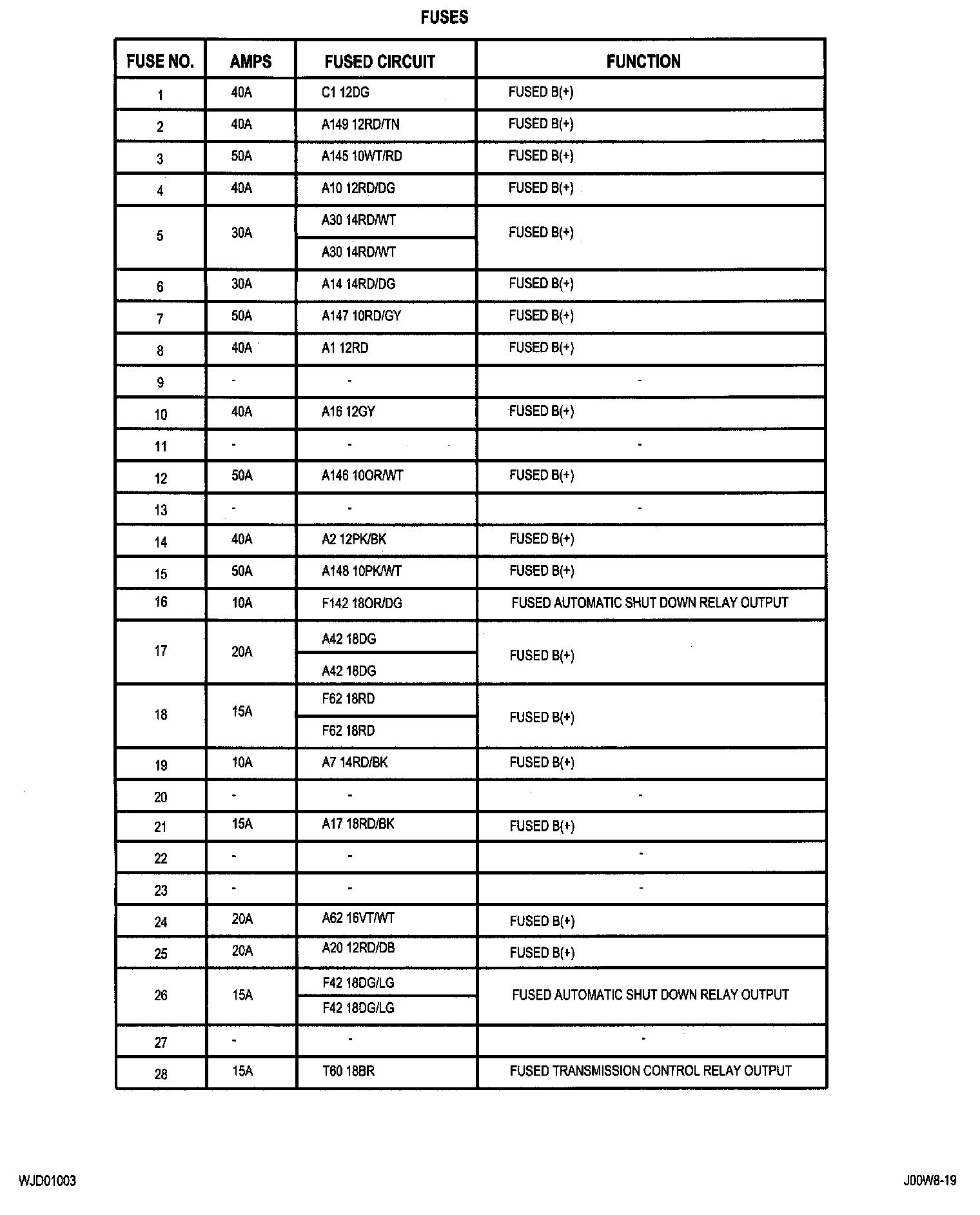

Power Distribution Center:
8w-10-3:
