Chime Inoperative With Drivers Seat Belt Unfastened

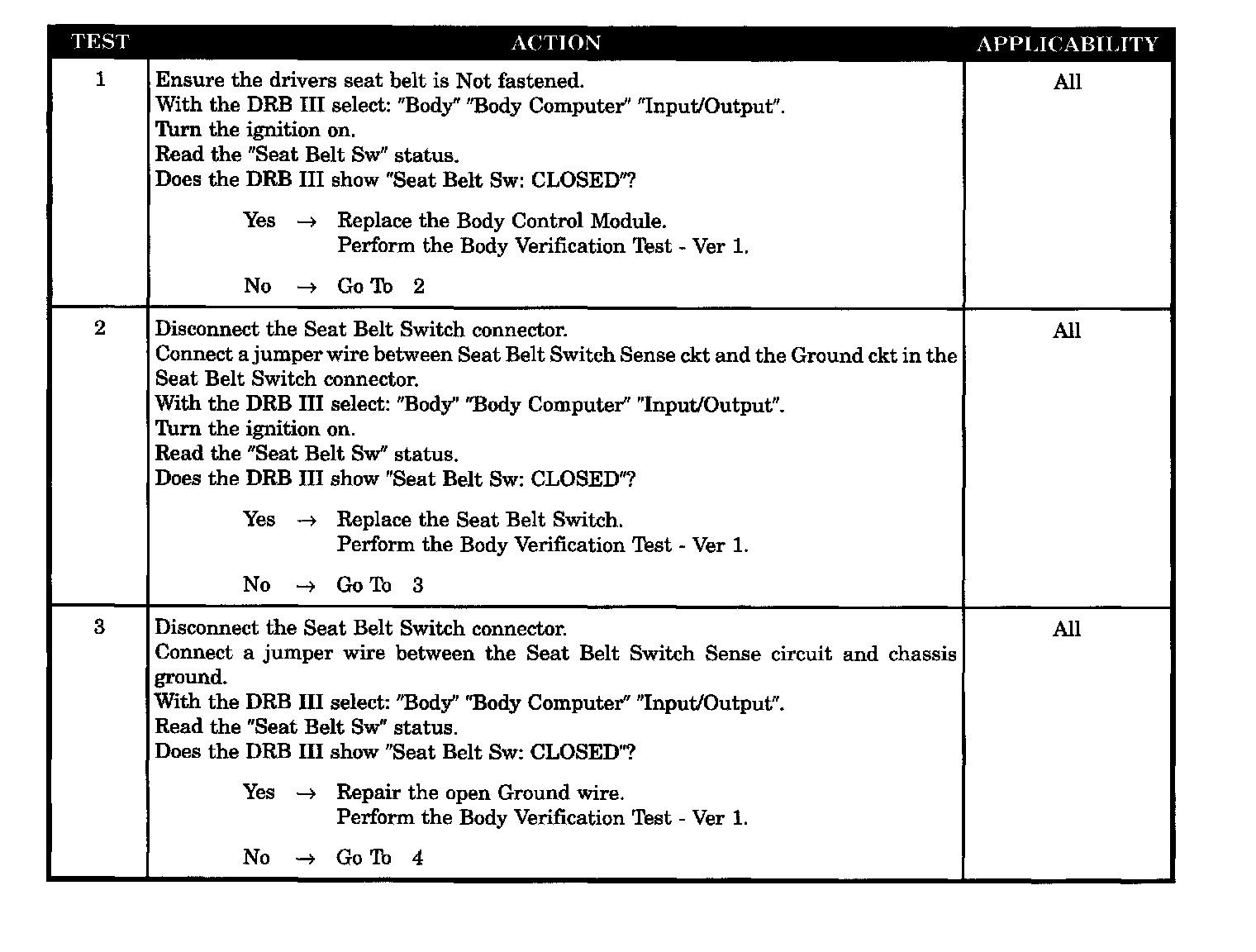

Test 1 - 3:

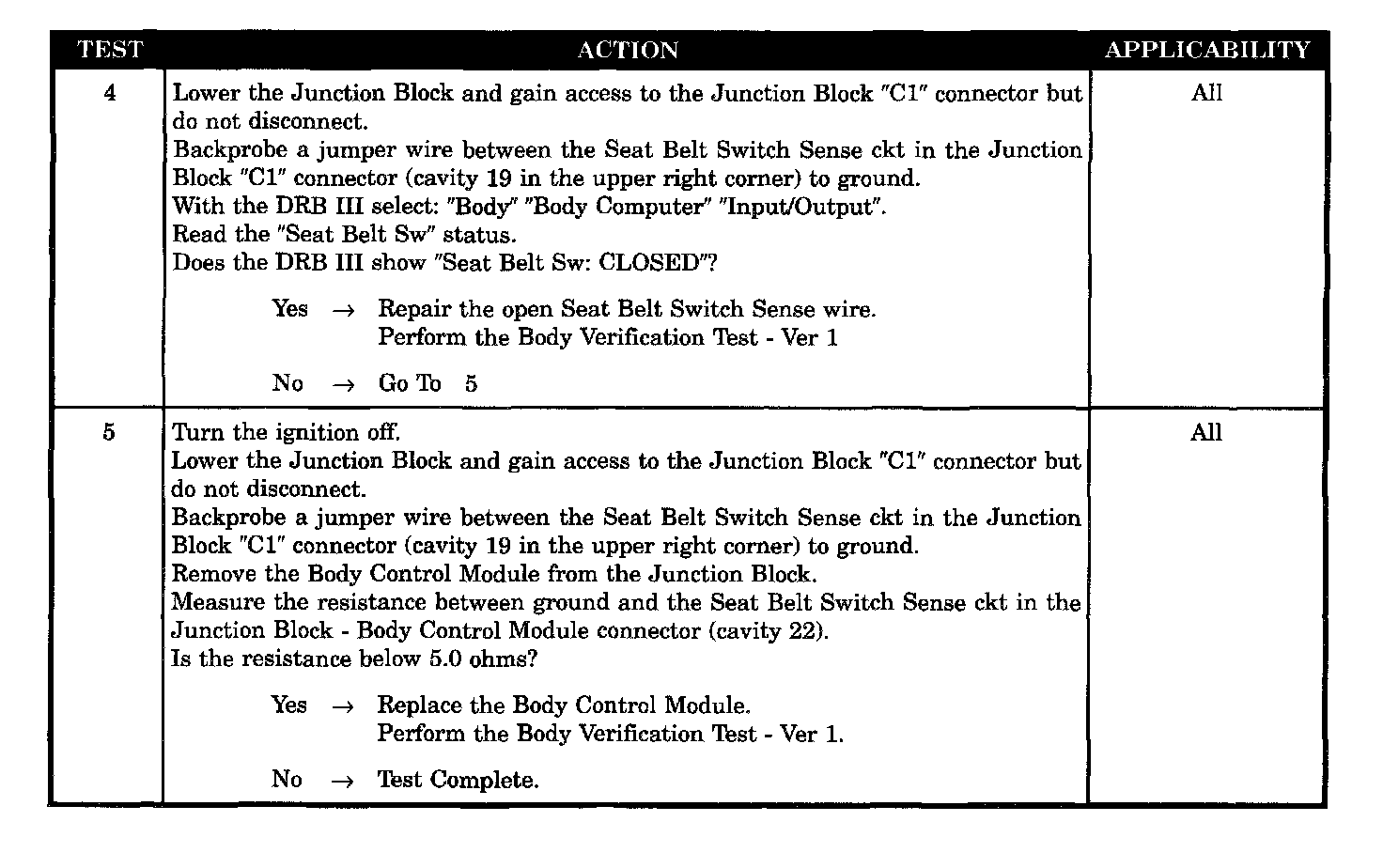

Test 4 - 5:

SYMPTOM
CHIME INOPERATIVE WITH DRIVERS SEAT BELT UNFASTENED

POSSIBLE CAUSES
- Body control module -belt sense open
- Seat belt switch status wrong
- Ground wire open
- Seat belt switch open
- Seat belt switch sense wire open
- Junction block - seat belt switch sense open
