Camshaft Position Sensor: Locations

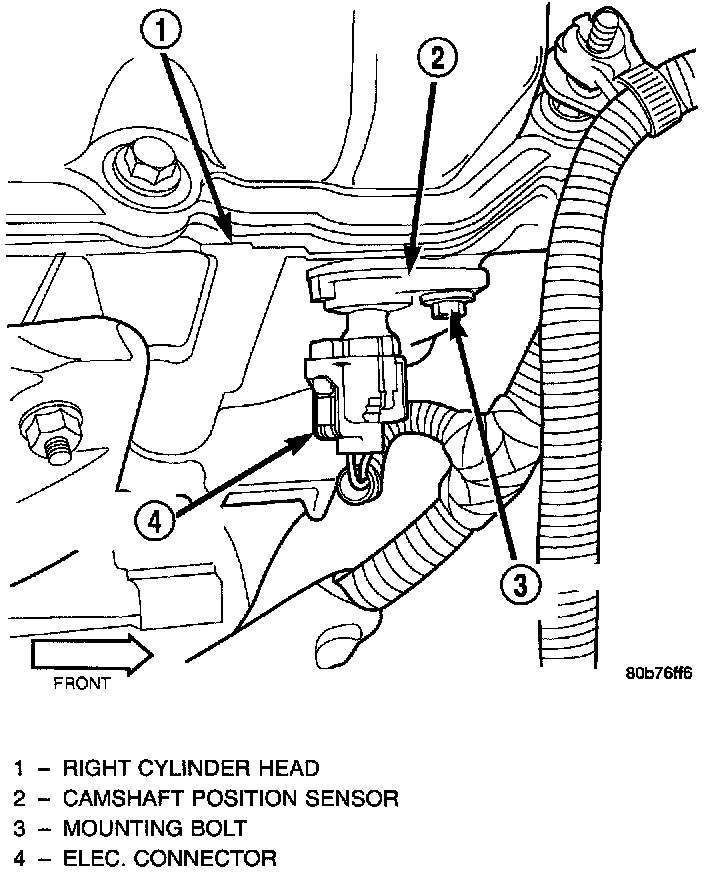

CMP Location:




The Camshaft Position Sensor (CMP) on this engine is bolted to the front/top of the right cylinder head.
