Fuel Level Sensor: Locations

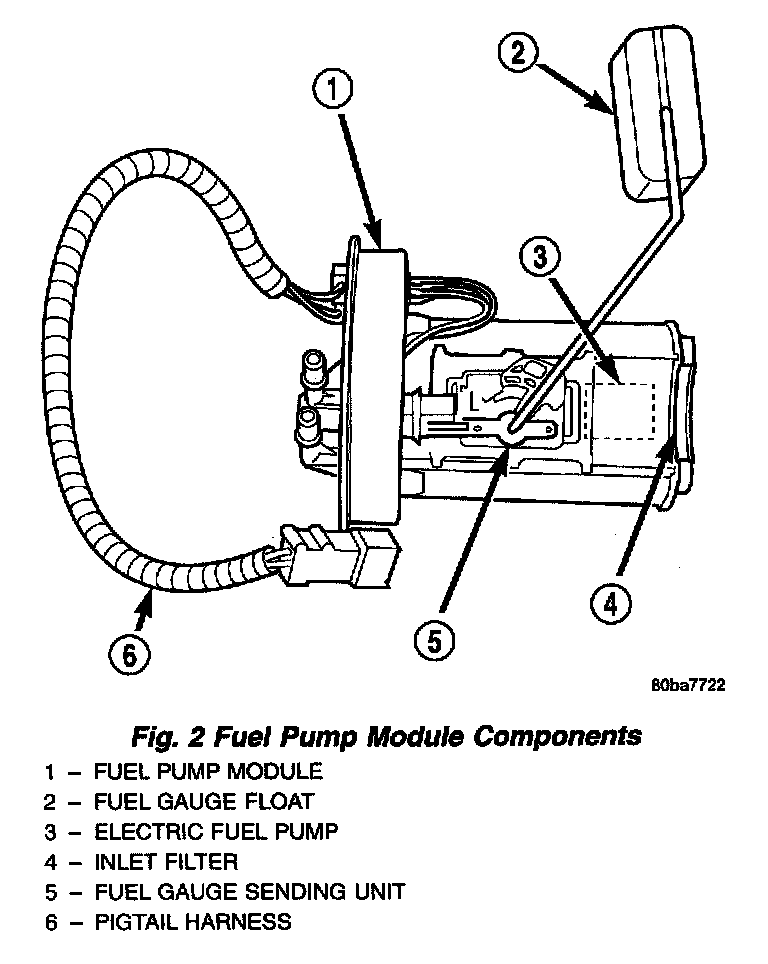

Fig. 2 Fuel Pump Module Components:




The fuel level sensor (fuel gauge sending unit) is attached to the side of the fuel pump module.
