Home
>>
Jeep
>>
2000
>>
Grand Cherokee 2WD V8-4.7L VIN N
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Connector Views
Connector Views

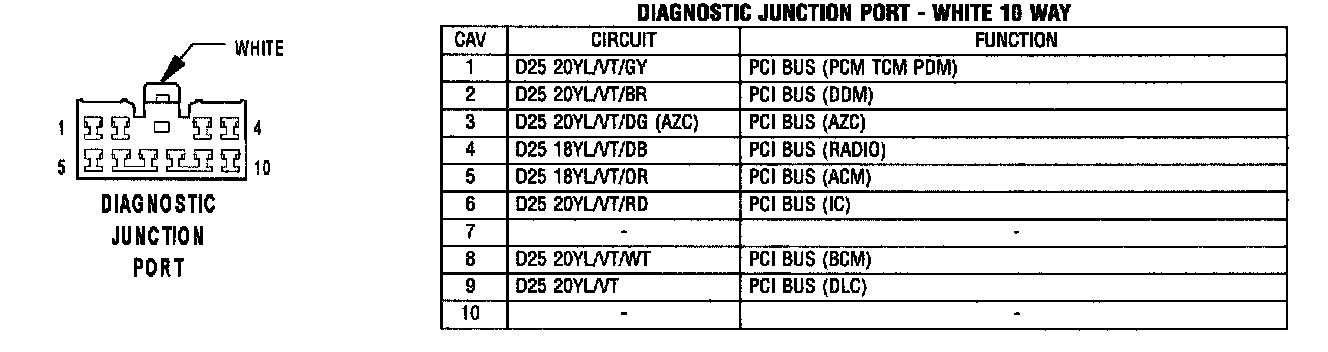

Diagnostic Junction Port - White 10 Way:
