Oxygen Sensor Relay: Diagrams

Power Distribution Center:

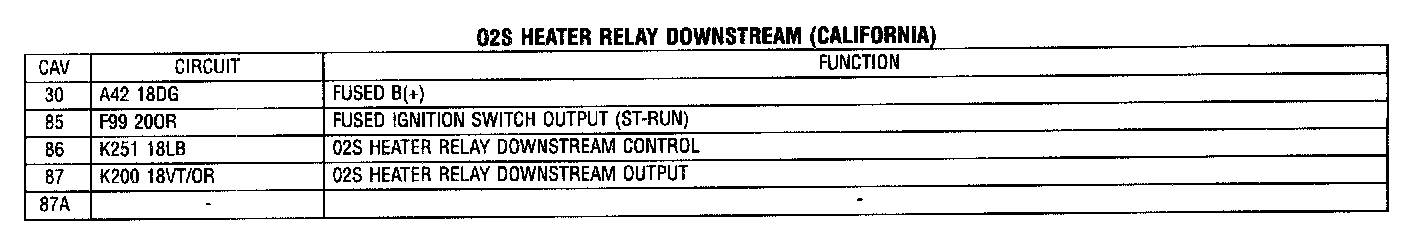

O2S Heater Relay Downstream (California):

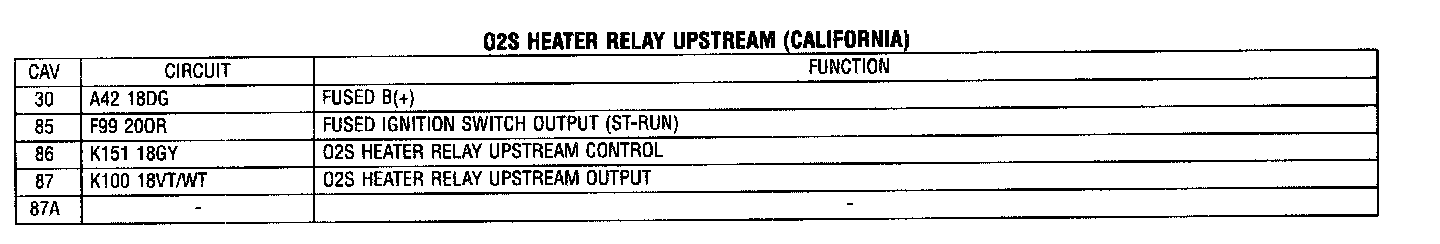

O2S Heater Relay Upstream (California):
