Oxygen Sensor: Diagrams

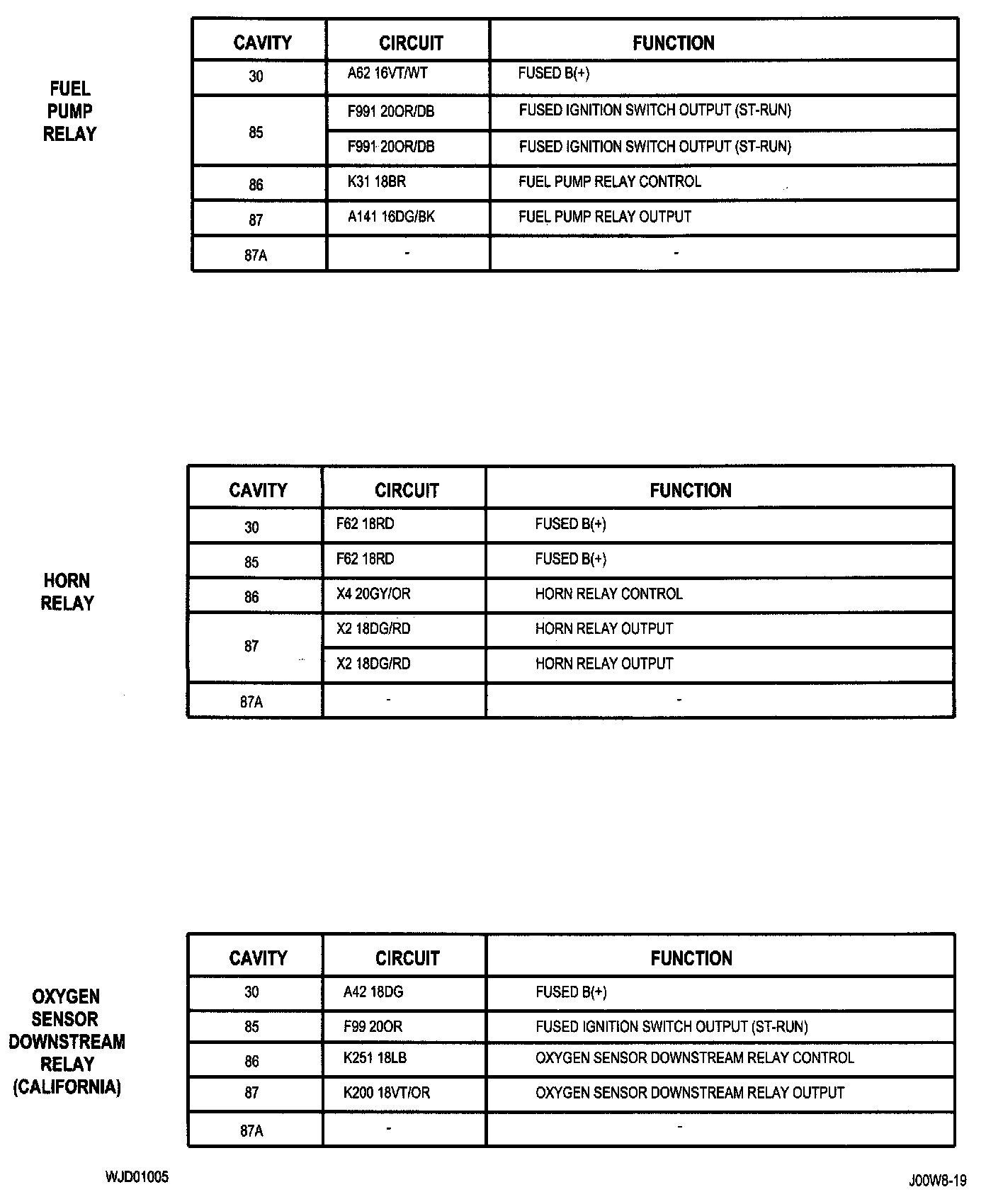

Power Distribution Center:

8w-10-5 - California:

8w-10-6 - California:

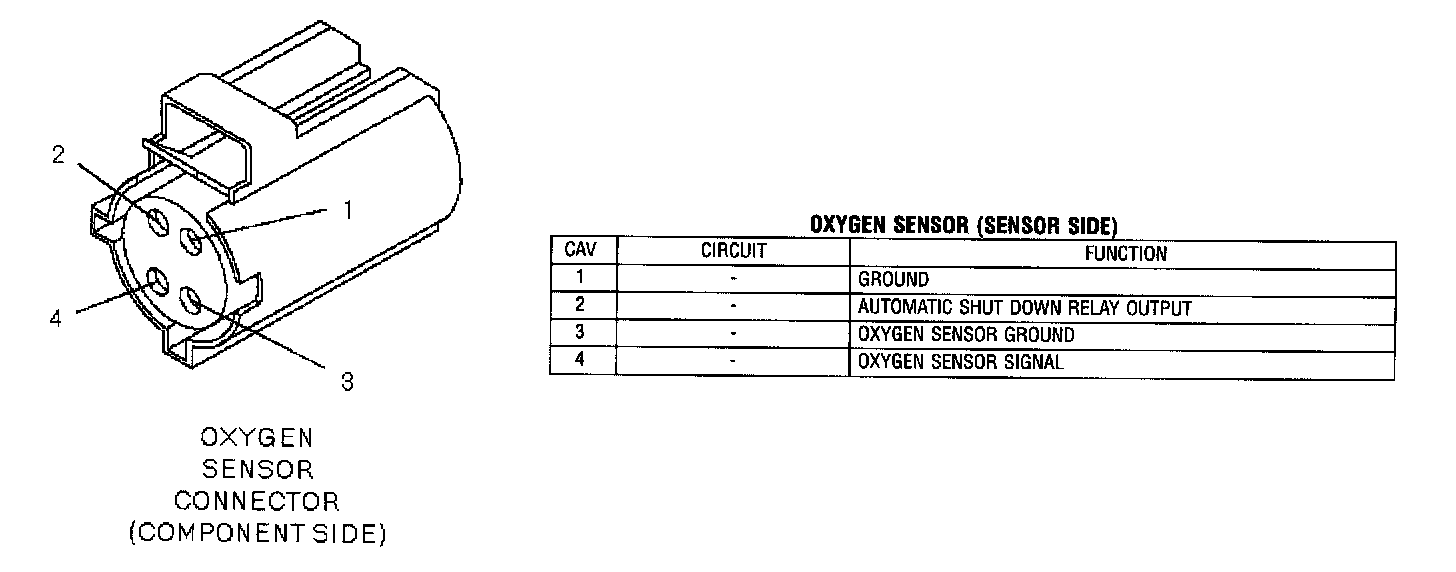

Oxygen Sensor Connector (Component Side):

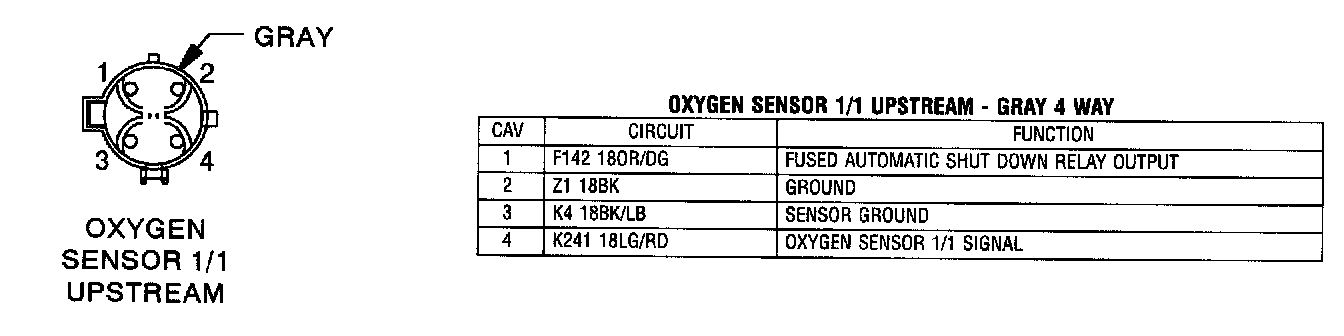

Oxygen Sensor 1/1 Upstream:

Oxygen Sensor 1/1 Front Bank Up:

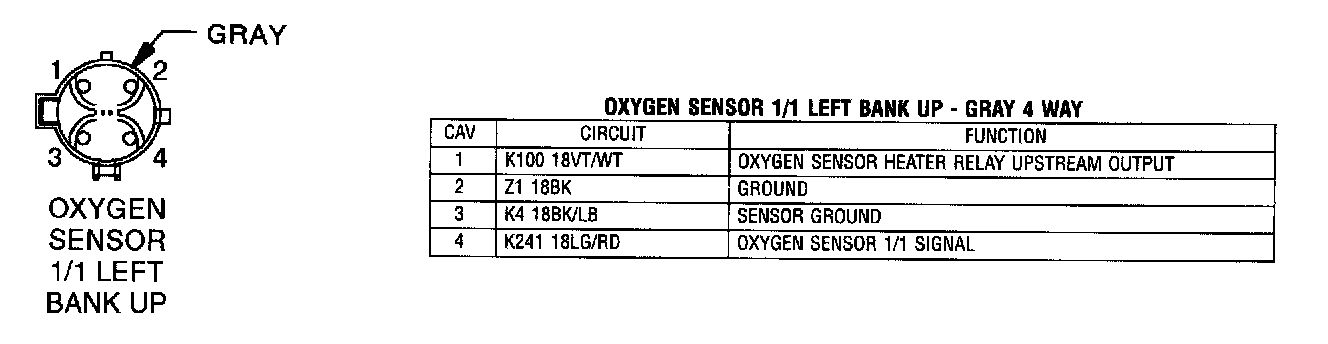

Oxygen Sensor 1/1 Left Bank Up:

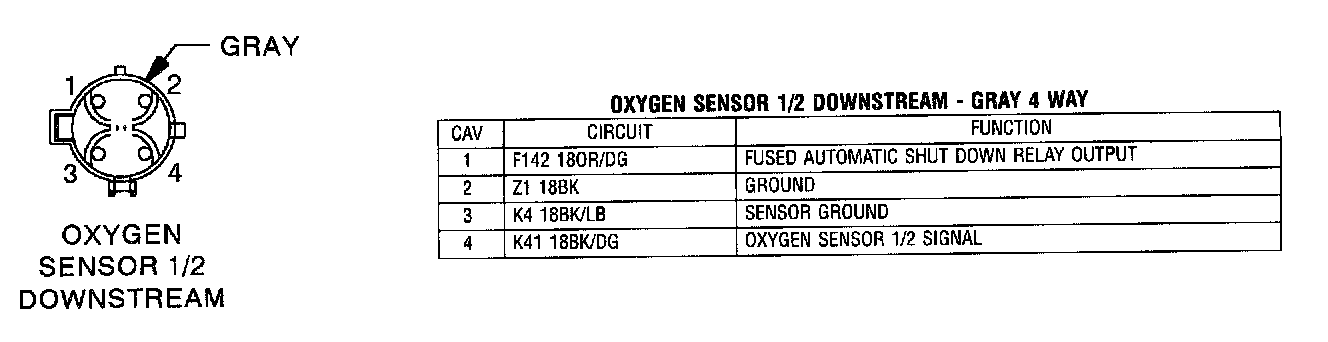

Oxygen Sensor 1/2 Downstream:

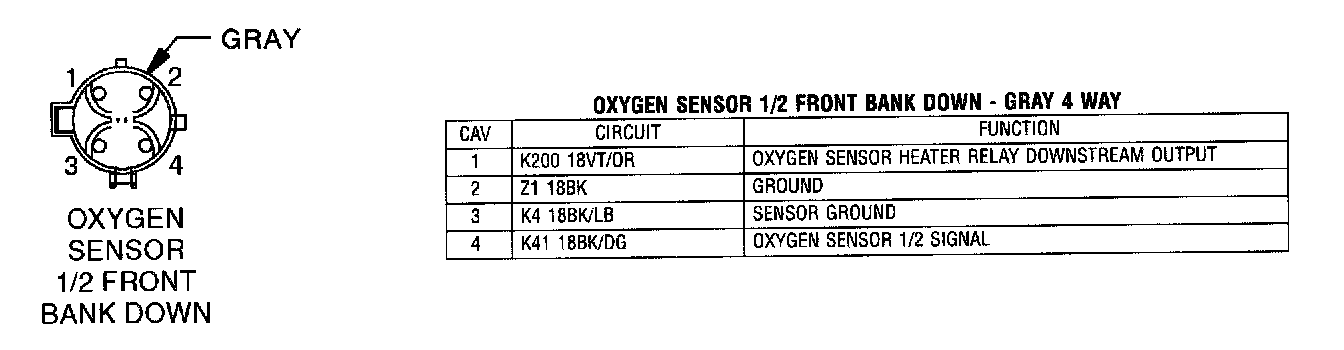

Oxygen Sensor 1/2 Front Bank Down:

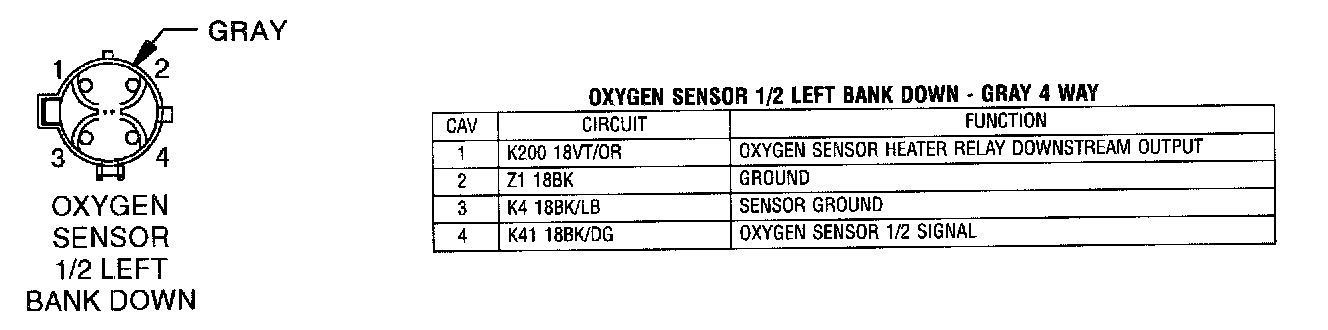

Oxygen Sensor 1/2 Left Bank Down:

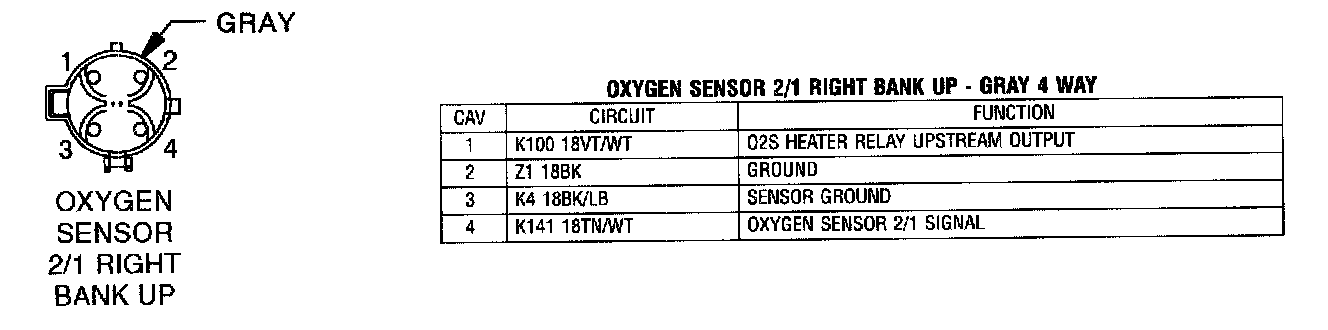

Oxygen Sensor 2/1 Right Bank Up:

Oxygen Sensor 2/1 Rear Bank Up:

Oxygen Sensor 2/2 Right Bank Down:

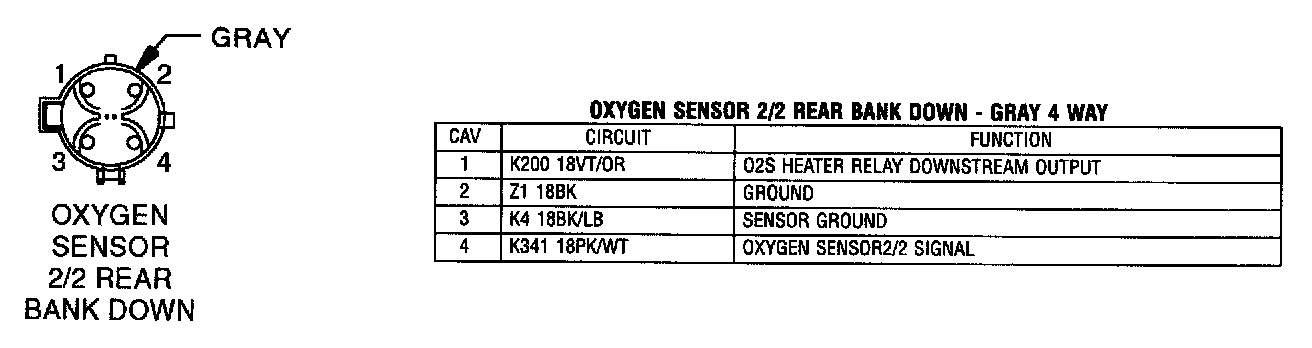

Oxygen Sensor 2/2 Rear Bank Down:
