Checking the Fuel Delivery System

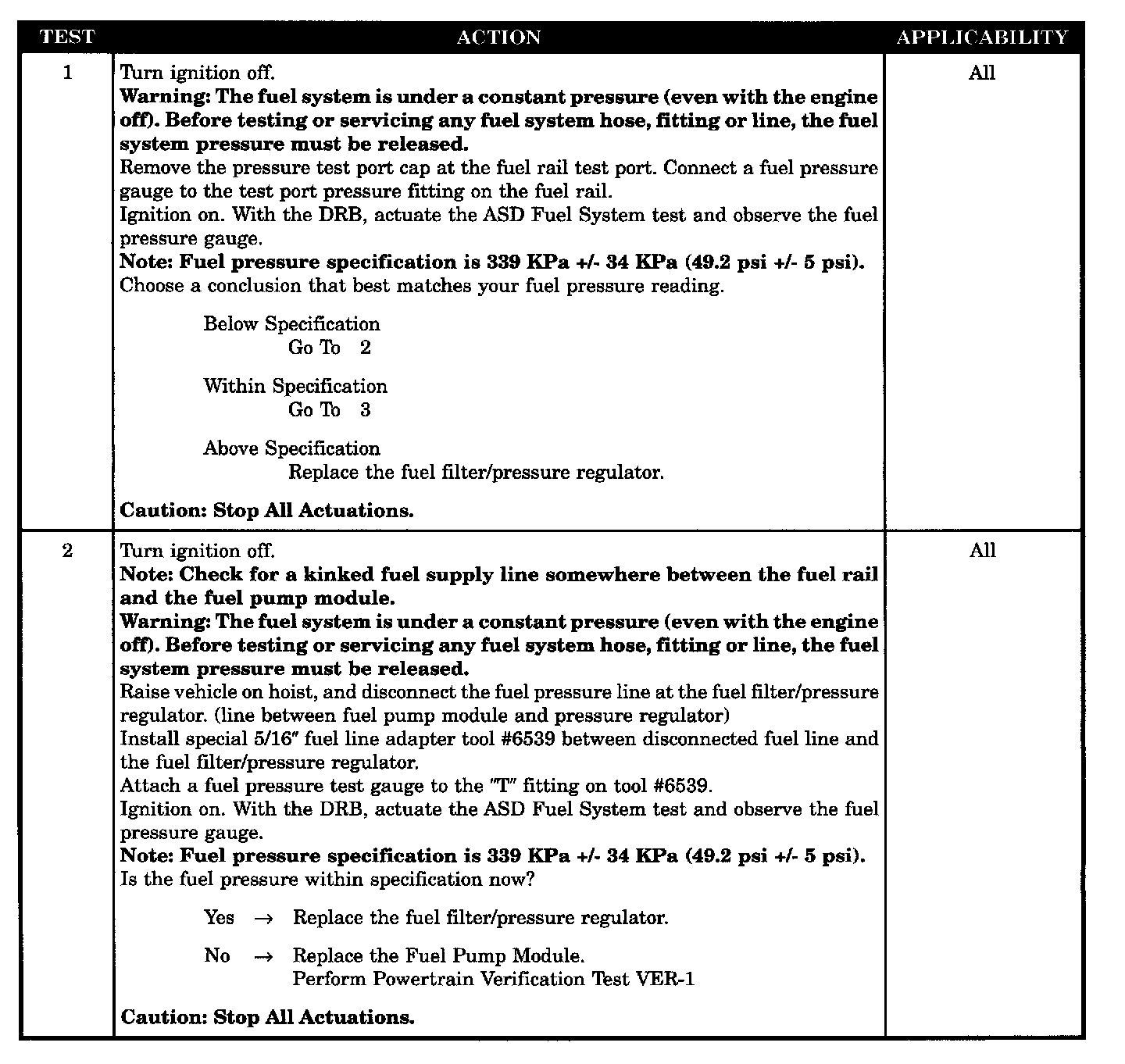

Tests 1 - 2:

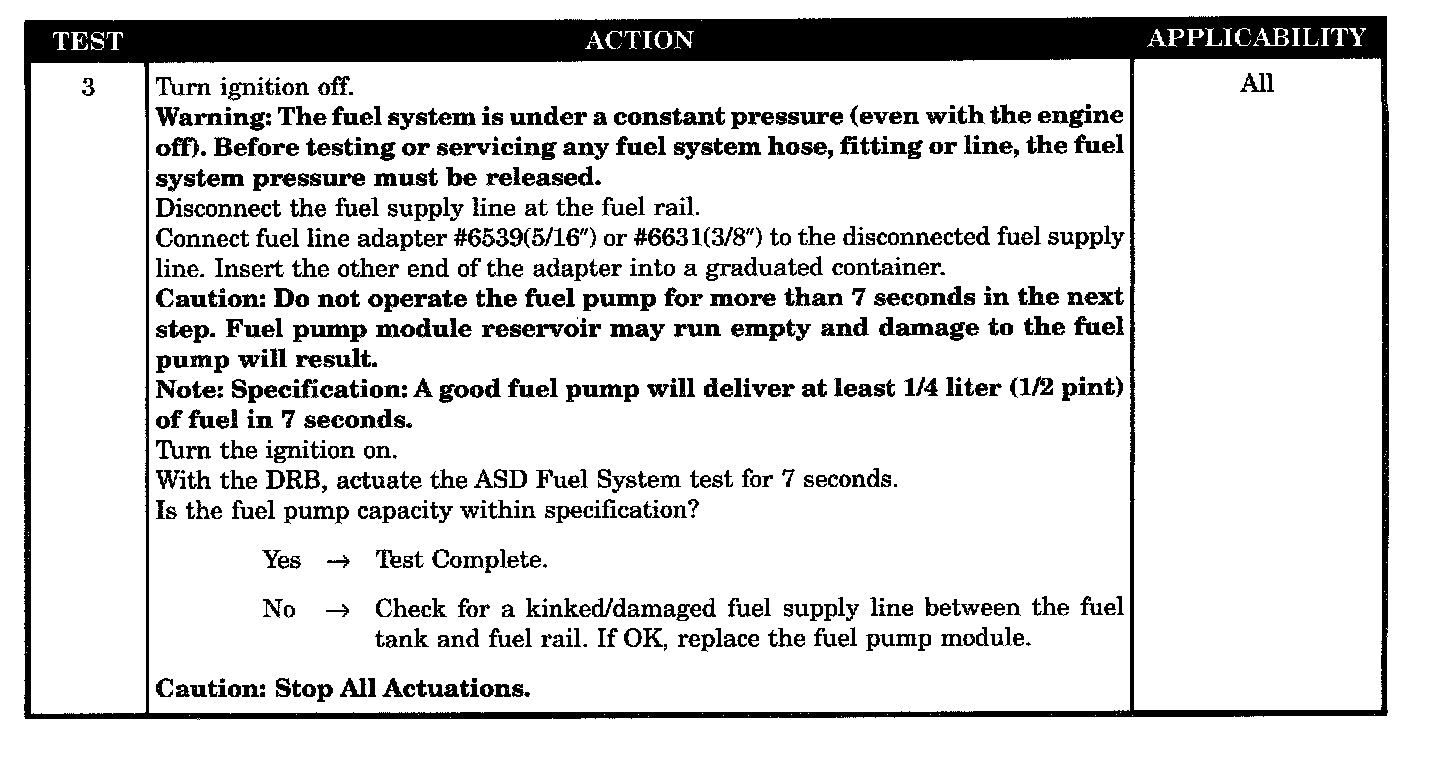

Test 3:

SYMPTOM
CHECKING FUEL DELIVERY

POSSIBLE CAUSES
- Fuel filter/pressure regulator (high pressure)
- Fuel pump module (low output)
- Fuel filter/pressure regulator (low pressure)
- FUEL pump capacity (volume) out of specs
