Shift Interlock: Service and Repair

REMOVAL
1. Lower the steering column.

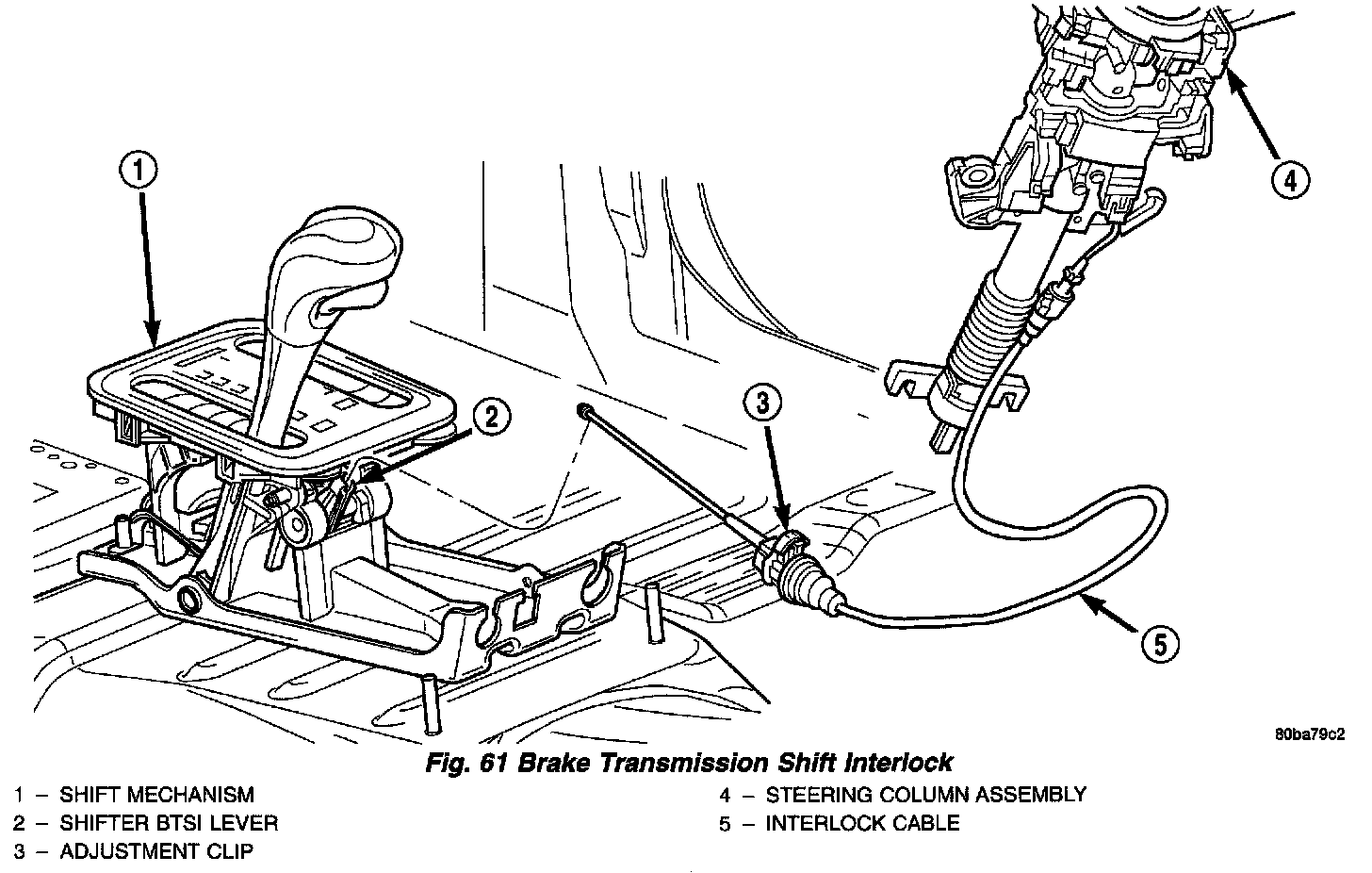

Fig. 61:

2. Remove the transmission shift interlock cable from steering column (Fig. 61).
3. Remove the center console and related trim.
4. Disconnect the BTSI cable from the shift BTSI lever and remove the cable from the shifter assembly bracket.
5. Disengage the wire connector at the solenoid on the cable
6. Release the BTSI cable from any remaining clips.
7. Remove BTSI cable from the vehicle.

INSTALLATION

NOTE: The gearshift cable must be secured into position and properly adjusted before the installation of the Brake Transmission Interlock Cable (BTSI).

1. Snap the BTSI cable assembly into the steering column.
2. Snap BTSI cable solenoid tie strap into hole in steering column tube.
3. Engage the wiring connector from brake light switch into BTSI cable solenoid housing.
4. Route BTSI cable to the shifter mechanism.
5. Install the BTSI cable end fitting into shifter BTSI lever.
6. Pull rearward on the BTSI cable housing and install the cable housing into the shifter assembly bracket.
7. Place the ignition key cylinder in the LOCK position.
8. Snap BTSI cable adjuster ears into floor shifter bracket and
9. Push the cable adjuster lock clamp downward to lock it.
10. Install the center console and related trim.
11. Test the BTSI cable operation.
