Antitheft and Alarm Systems

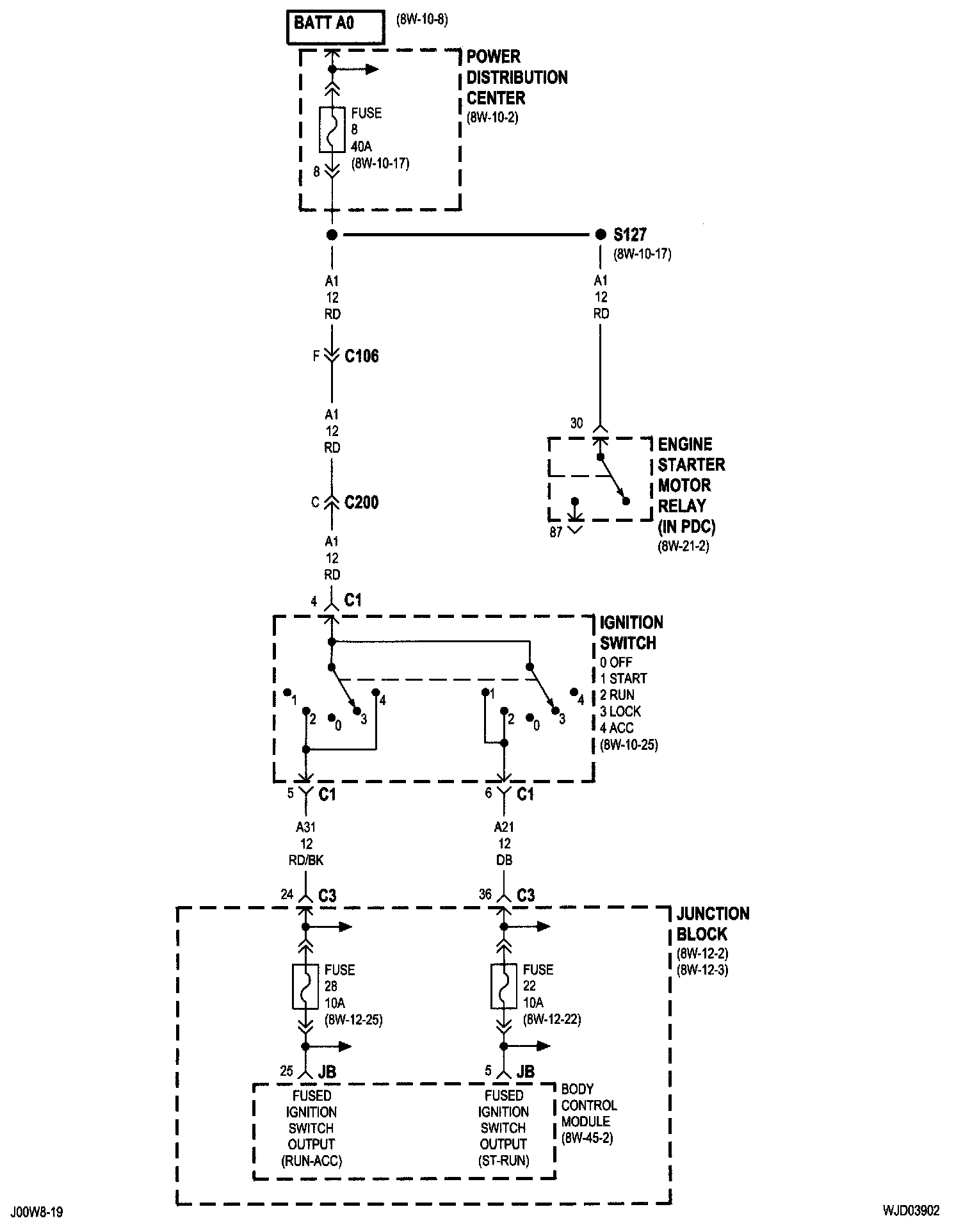

8w-39-2:




Body Control Module
Engine Starter Motor Relay
Fuse 8 (PDC)
Fuse 22 (JB)
Fuse 28 (JB)
Ignition Switch
Junction Block
Power Distribution Center

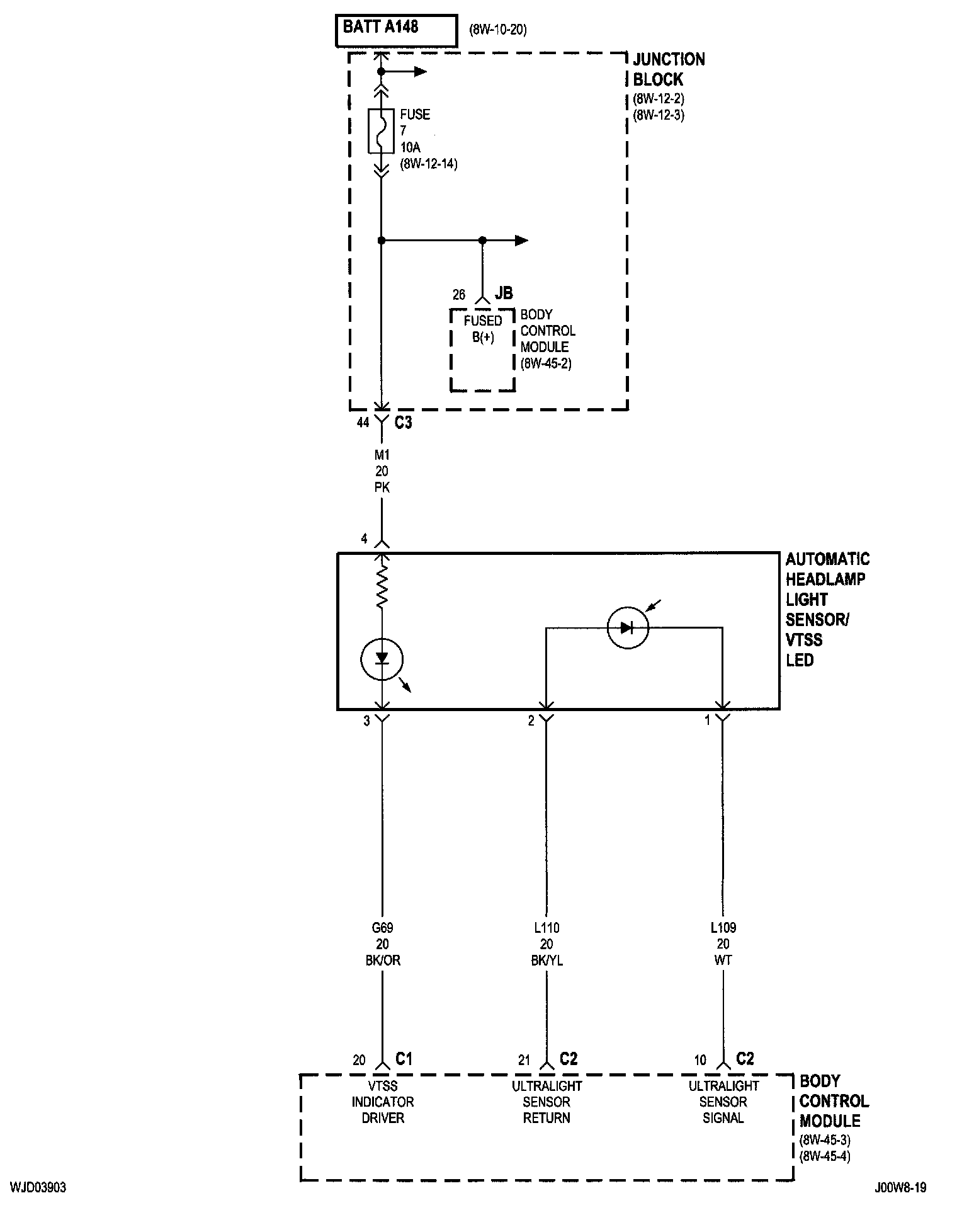

8w-39-3:




Sensor/VTSS LED
Body Control Module
Fuse 7 (JB)
Junction Block


8w-39-4:




Body Control Module
G301
Junction Block
Left Liftgate Ajar Switch
Liftgate Flip-Up Ajar Switch
Right Liftgate Ajar Switch

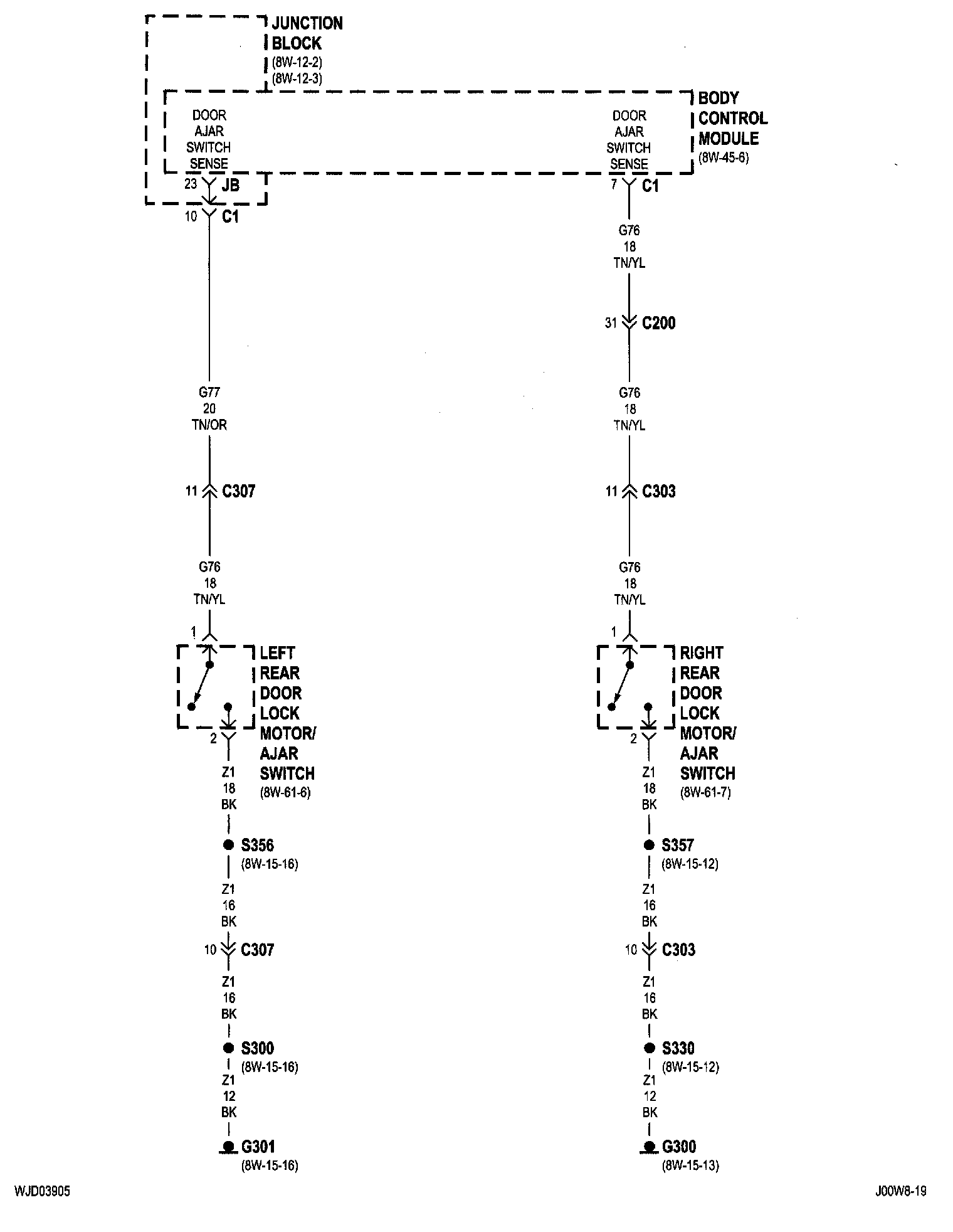

8w-39-5:




Body Control Module
G300
G301
Junction Block
Left Rear Door Lock Motor/Ajar Switch
Right Rear Door Lock Motor/Ajar Switch

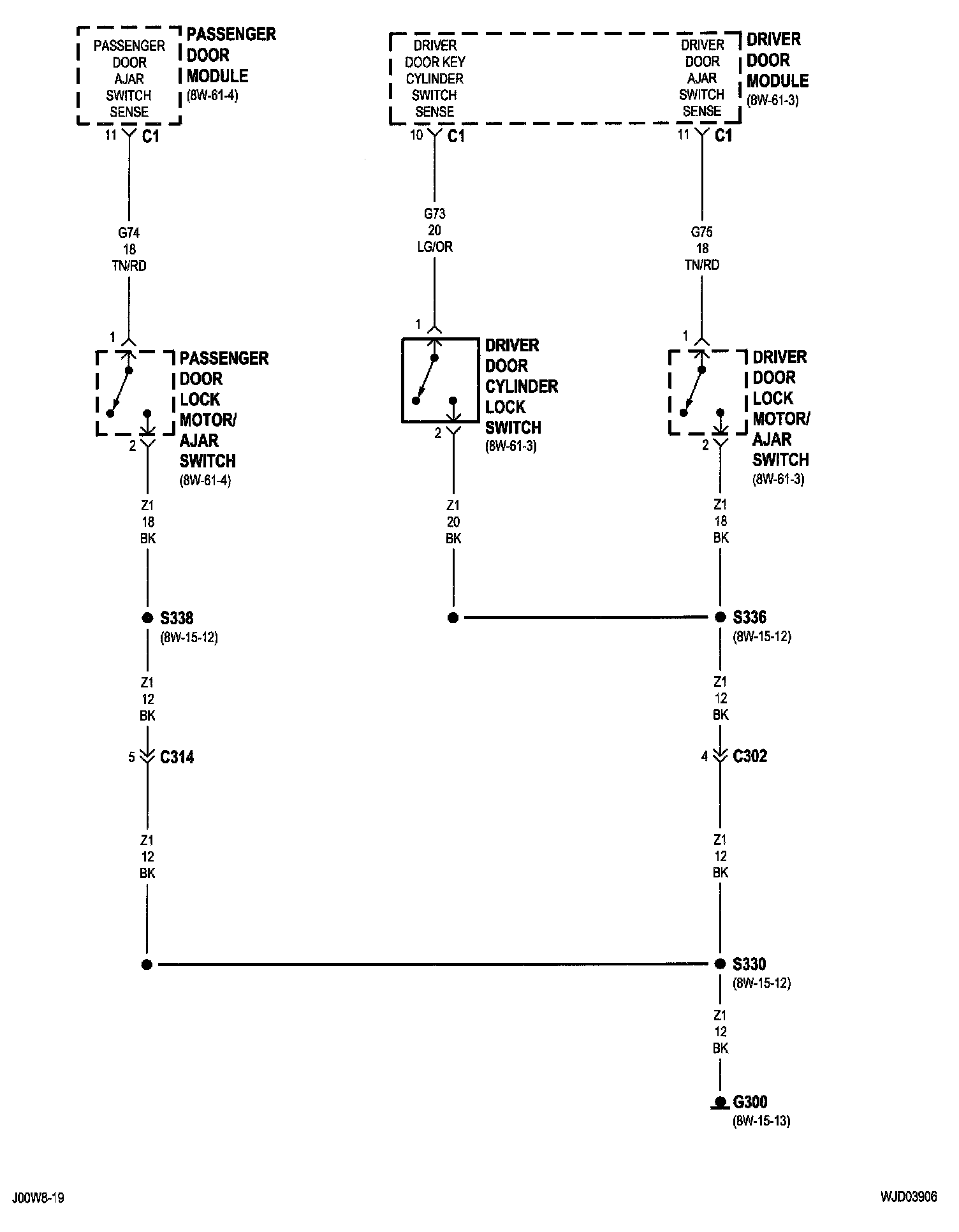

8w-39-6:




Driver Door Cylinder Lock Switch
Driver Door Lock Motor/Ajar Switch
Driver Door Module
G300
Passenger Door Lock Motor/Ajar Switch
Passenger Door Module

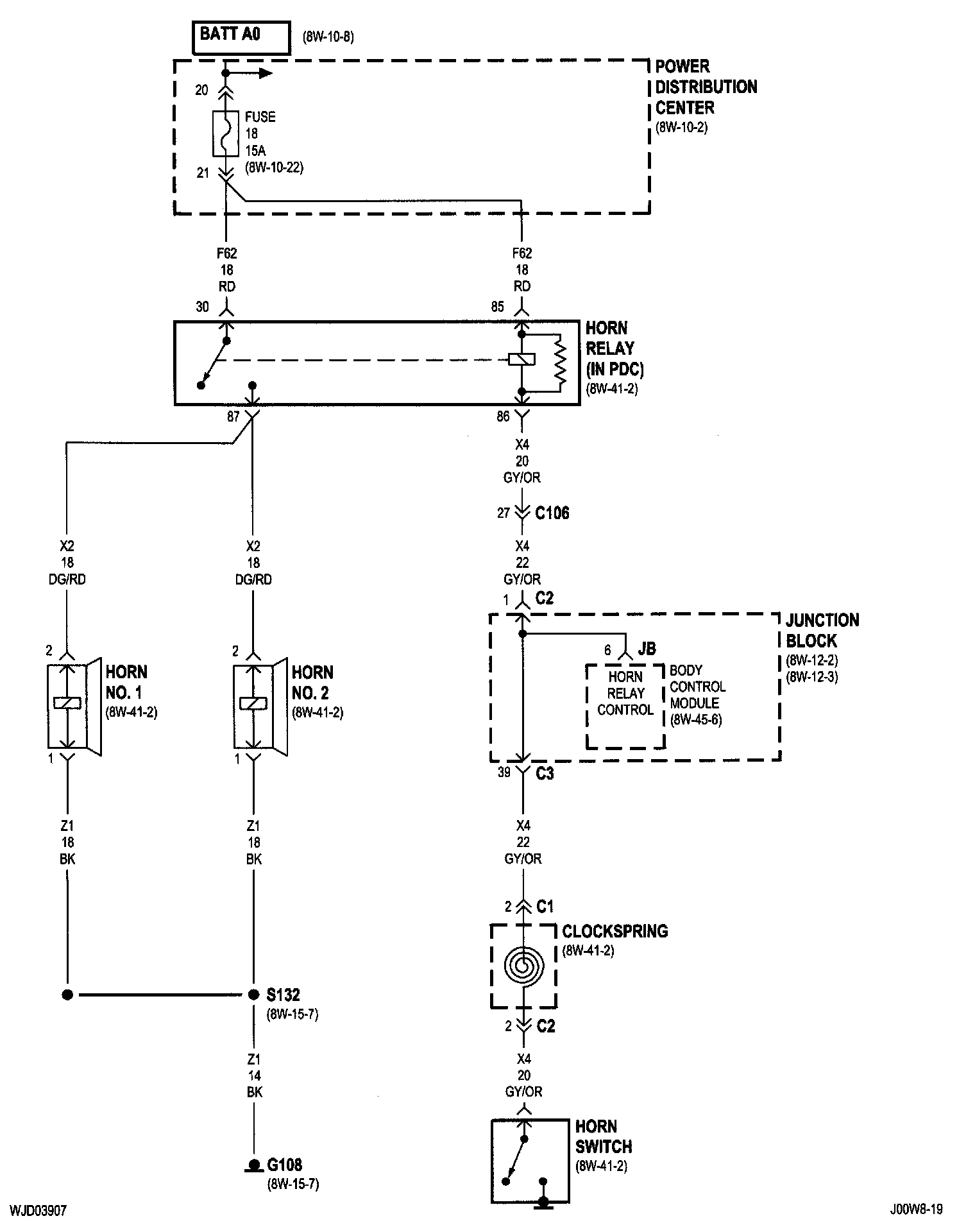

8w-39-7:




Body Control Module
Clockspring
Fuse 18 (PDC)
G108
Horn No.1
Horn No.2
Horn Relay
Horn Switch
Junction Block
Power Distribution Center

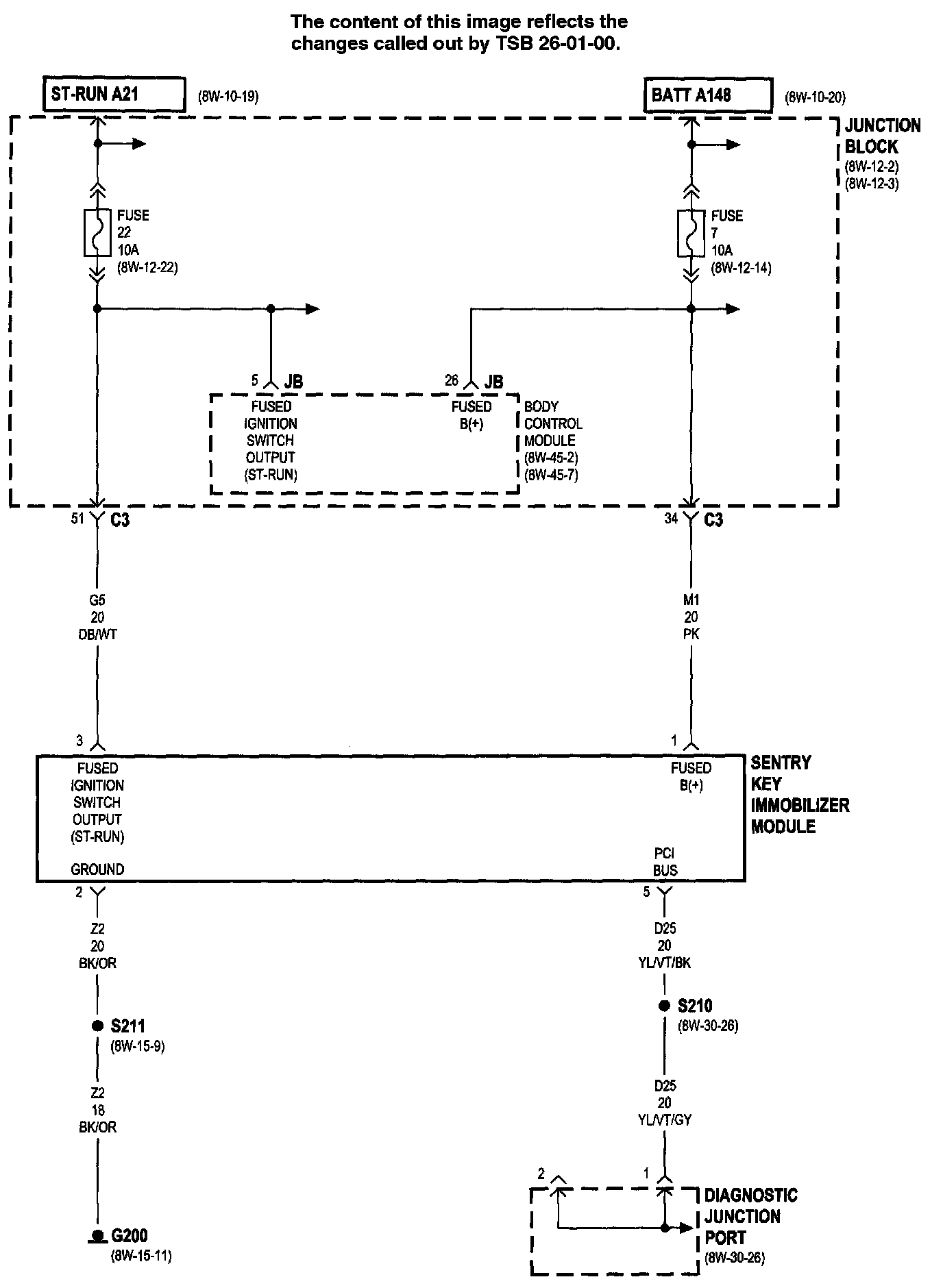

8w-39-8:




Body Control Module
Diagnostic Junction Port
Fuse 7 (JB)
Fuse 22 (JB)
G200
Junction Block
Sentry Key Immobilizer Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Electrical Diagrams
