Home >> Jeep >> 2000 >> Grand Cherokee 4WD L6-4.0L VIN S >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 4

Figure 4

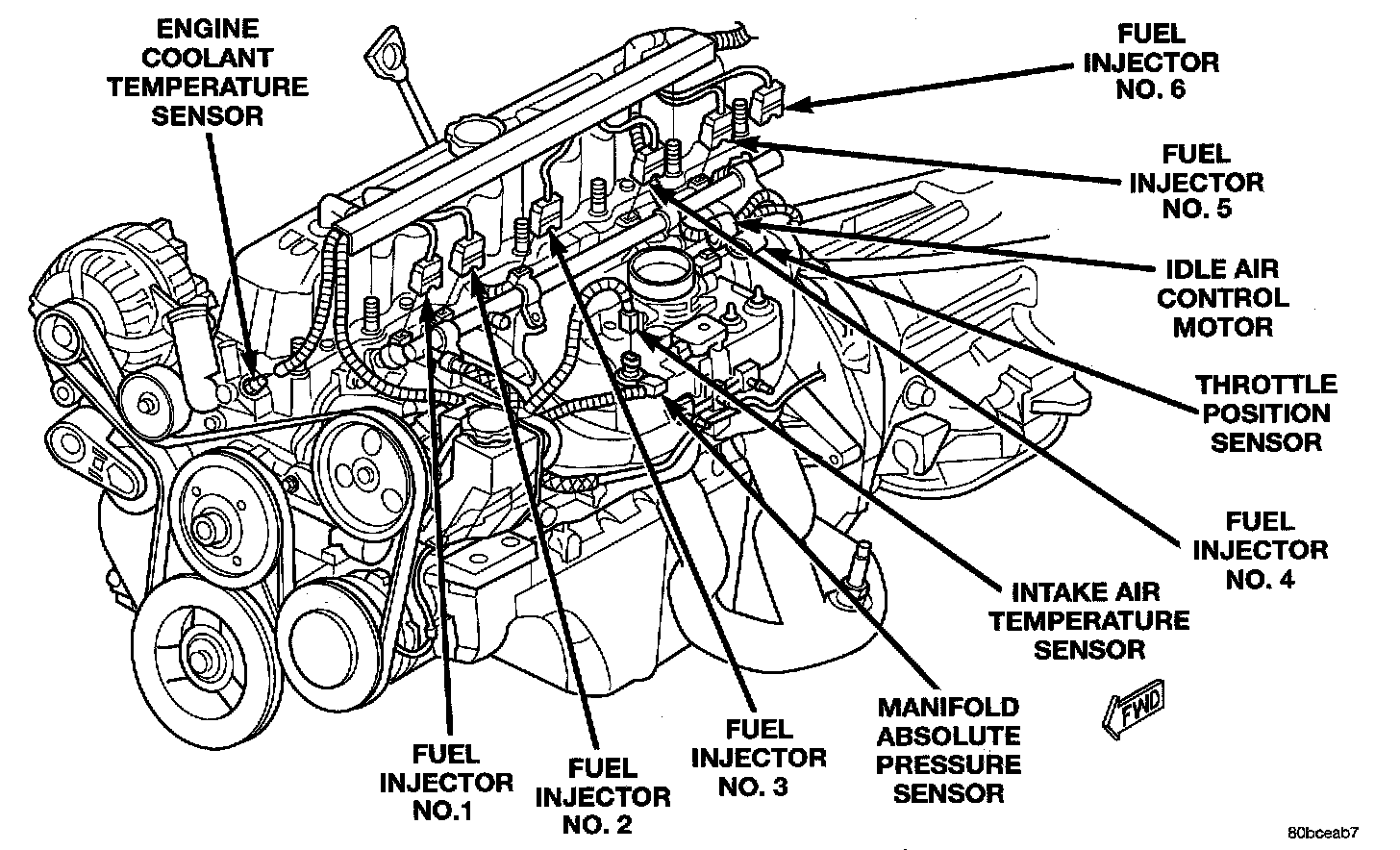

Engine Connectors Left Side:
