Checking Radiator Fan Operation

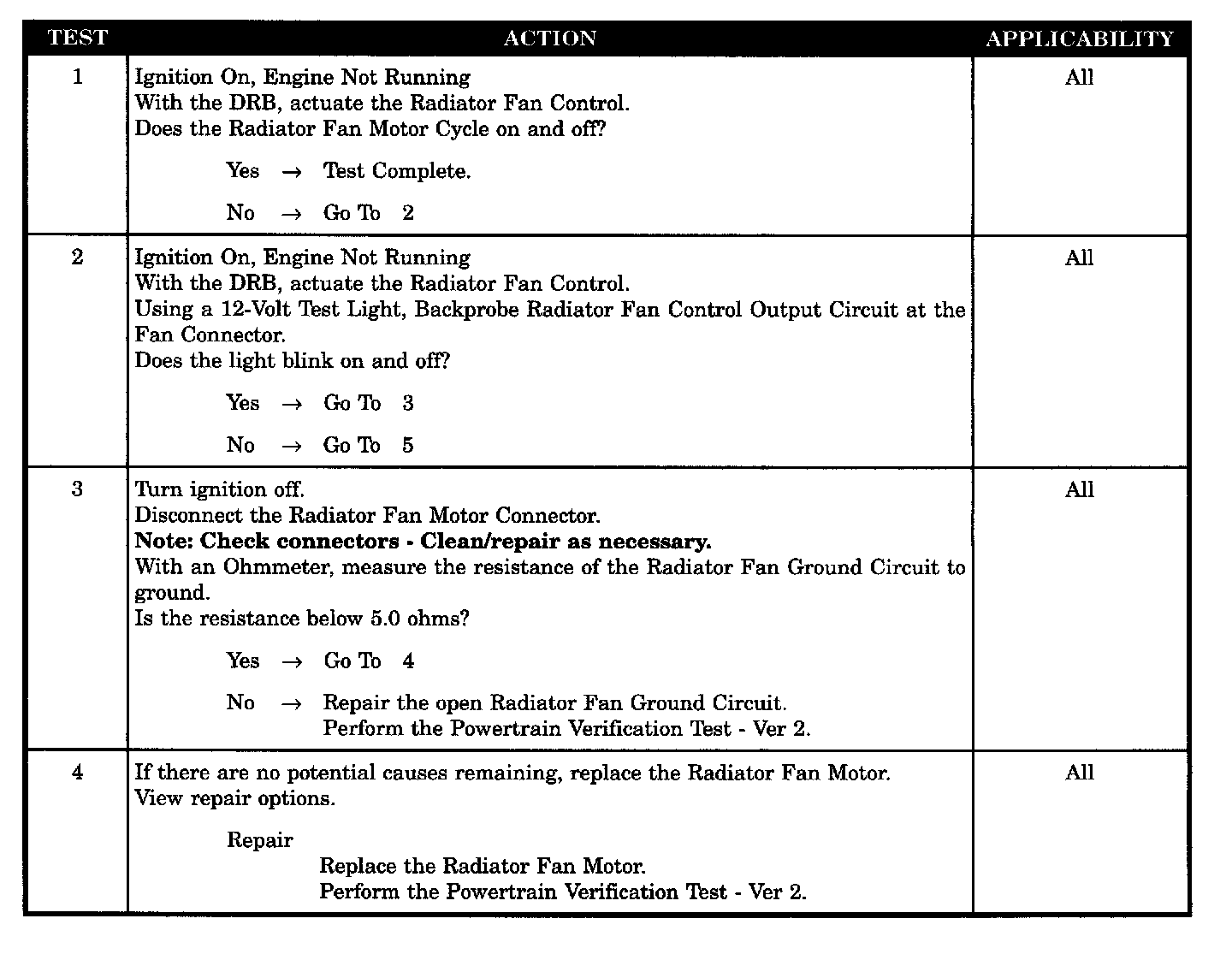

Tests 1 - 4:

Tests 5 - 7:

SYMPTOM
CHECKING RADIATOR FAN OPERATION WITH NO DTC'S

POSSIBLE CAUSES
- Fused B(+) circuit open
- Radiator fan ground circuit open
- NTC-Radiator fan motor
- Radiator fan relay output circuit open
- Radiator fan relay
