System Specifications

Specifications

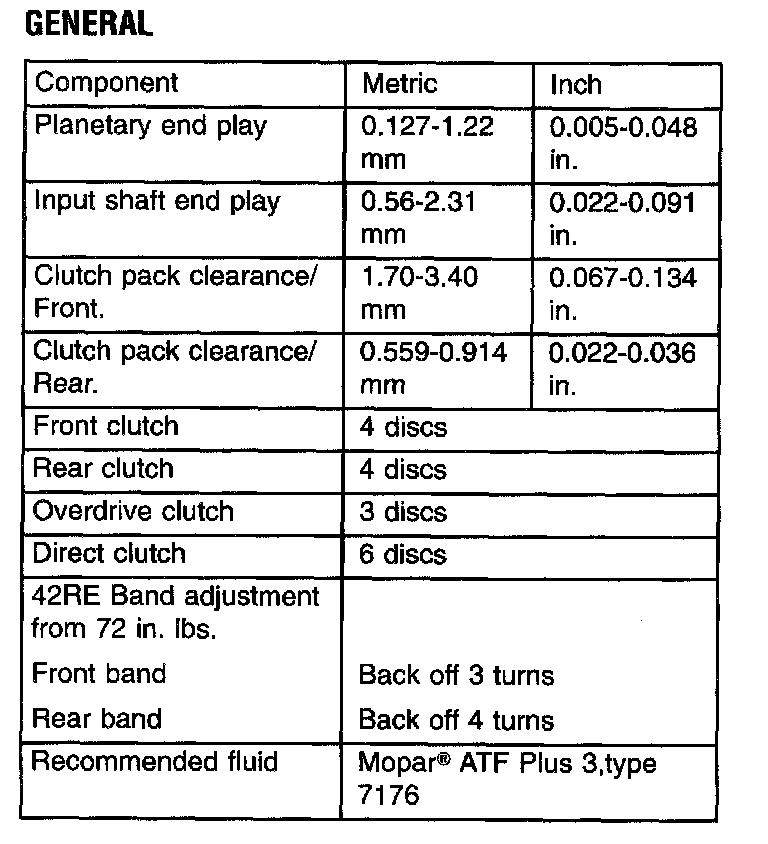

General:





General

Torque:





Torque

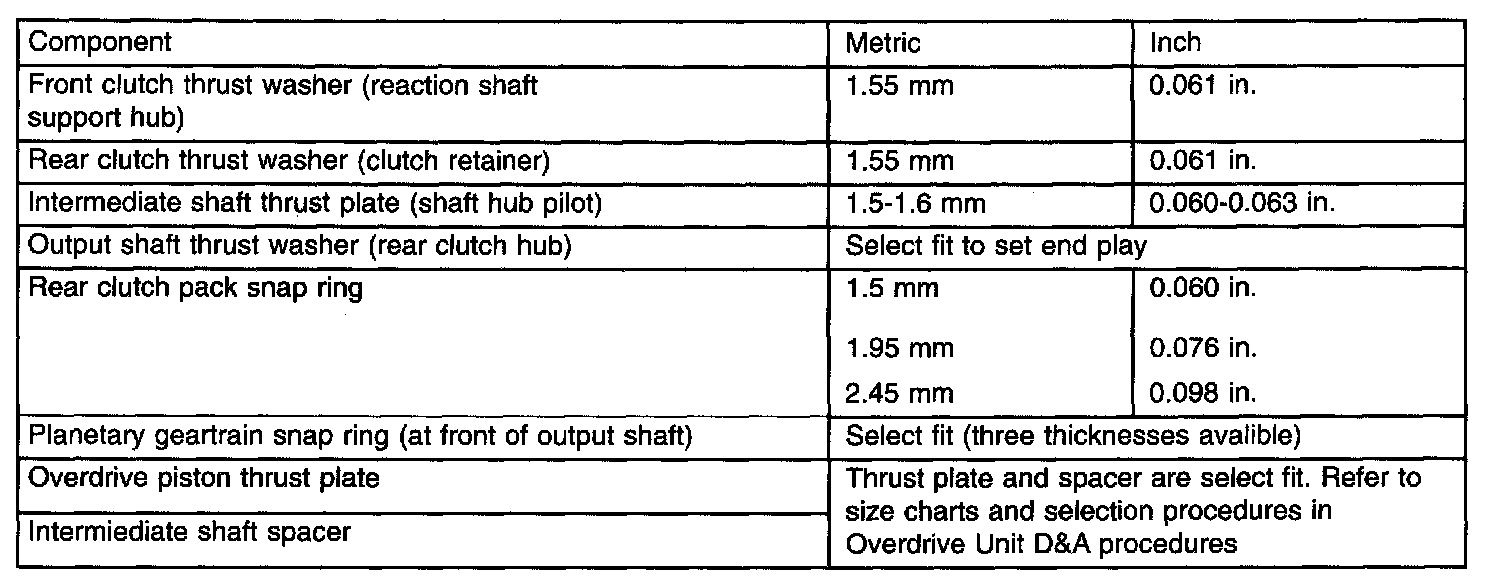

Thrust Washer/Spacer/Snap Ring Dimensions:





Thrust Washer/Spacer/Snap Ring Dimensions

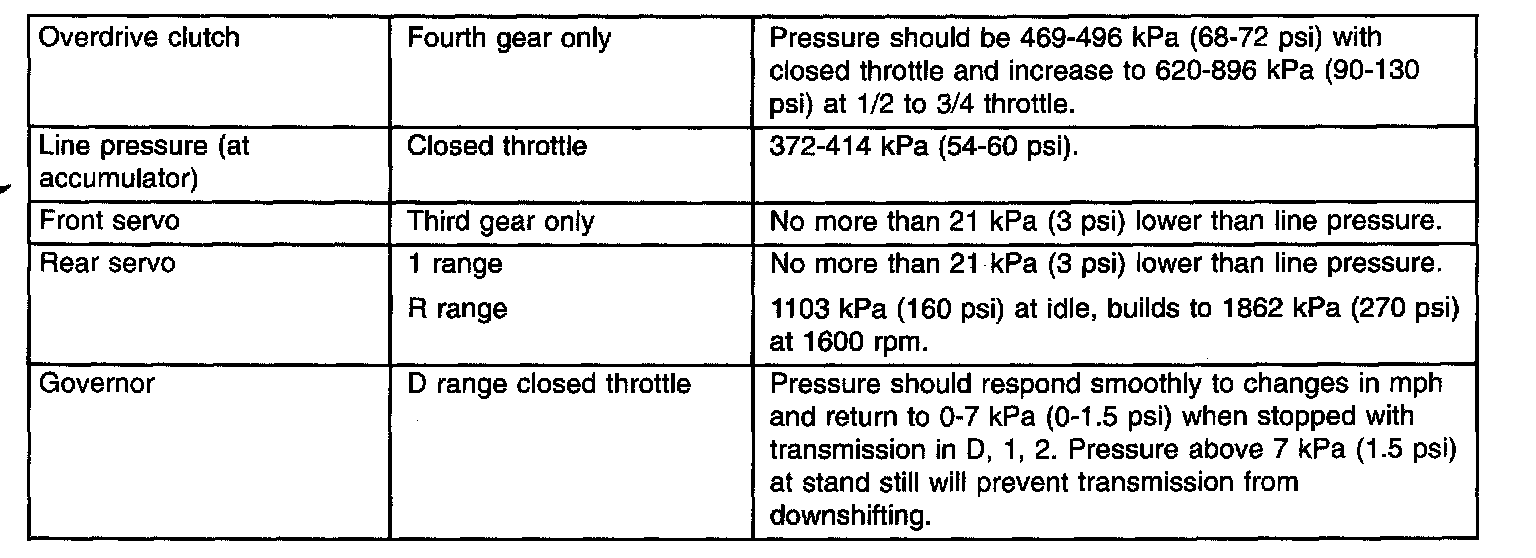

Pressure Test:





Pressure Test
