Procedures

REMOVAL
1. Remove door trim panel and waterdam. Disconnect the speaker harness and power window harness, if equipped. If necessary, refer to removal procedure.
2. Lower window glass.
3. Pull run weatherstrip from fixed glass.
4. Remove fasteners retaining fixed glass module.
5. Remove the fixed glass module.
6. Raise the door glass and support.

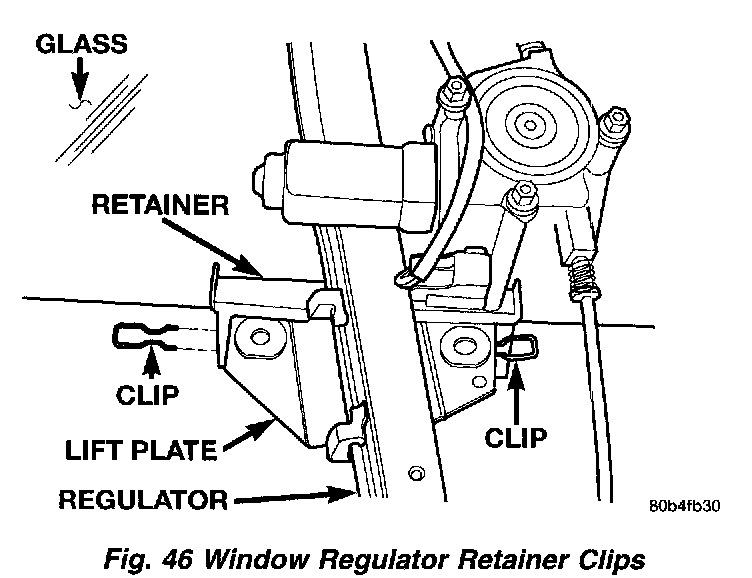

Window Regulator Retainer Clips:

7. Remove the window clips retaining regulator.
8. Remove the door glass.

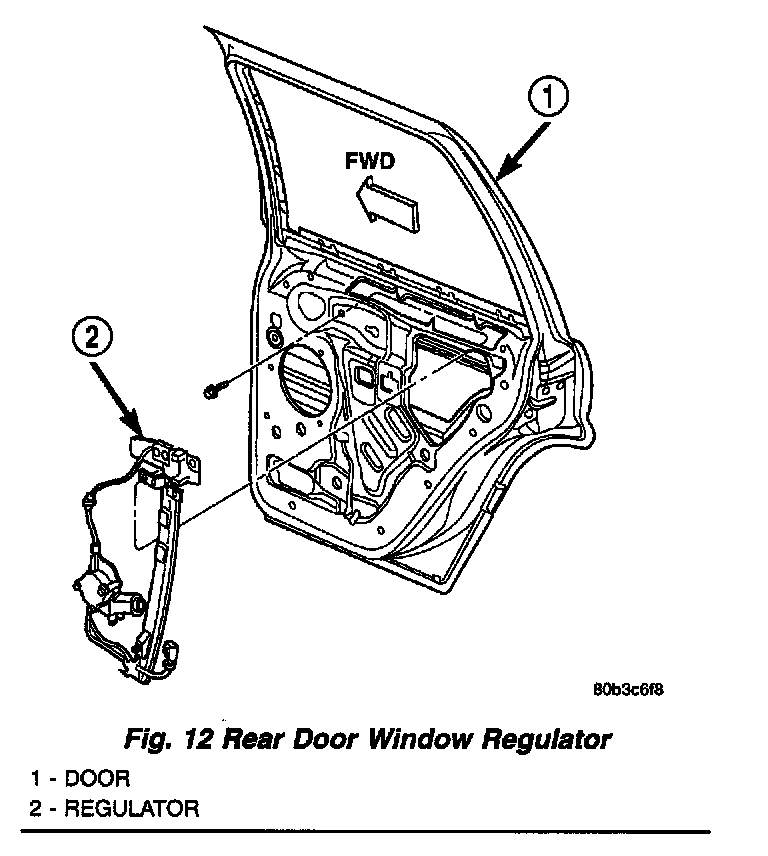

Rear Door Window Regulator:

9. Remove the fasteners retaining the regulator.
INSTALLATION
1. Position the window regulator in the door.
2. Install the fasteners retaining the regulator.
3. Install the door glass.
4. Install the window clips retaining regulator.
5. Lower the door glass.
6. Install the fixed glass module. Tighten the fasteners.
7. Install the run weatherstrip.
8. Install the waterdam, door panel, and connect the power window and speaker harness if equipped.
9. Cycle the glass and check for proper operation.
