Wiper Relay: Locations

Power Distribution Center:

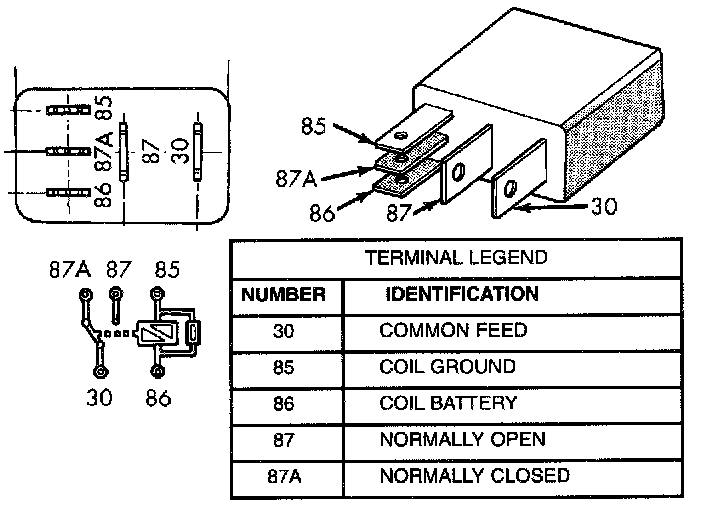

Wiper High/Low Relay:

The wiper high/low relay is located in the Power Distribution Center (PDC) between the battery and the fender on the right side of the engine compartment.

The wiper on/off relay is located in the Power Distribution Center (PDC) between the battery and the fender on the right side of the engine compartment.
