Wheel Speed Sensor
>>
Locations
>>
Component Locations
Component Locations

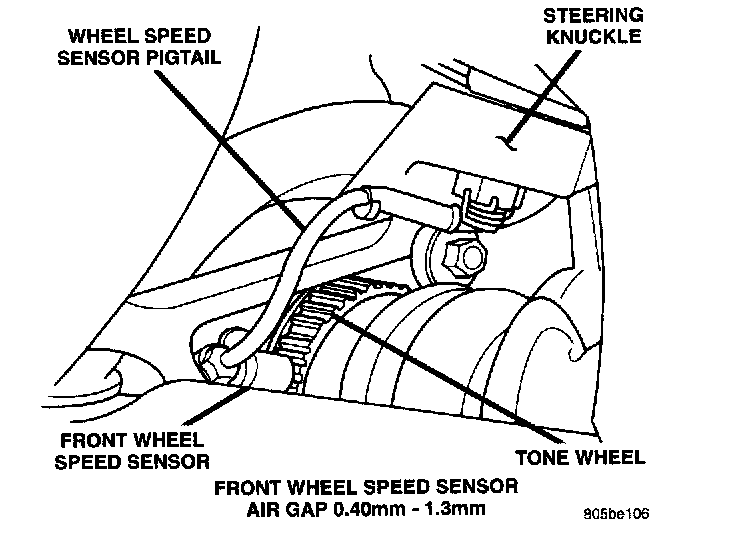

Front Wheel Speed Sensors:
Front

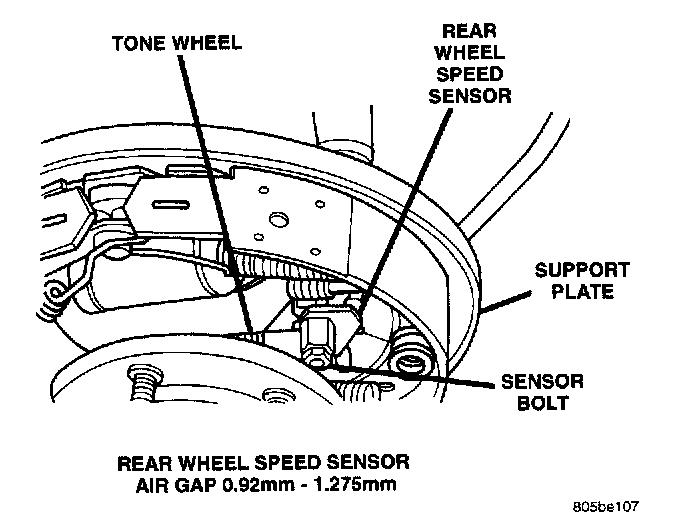

Rear Drum Brakes Wheel Speed Sensors:
Rear
