Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2000
>>
Wrangler L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Deactivation Switch
Air Bag Deactivation Switch

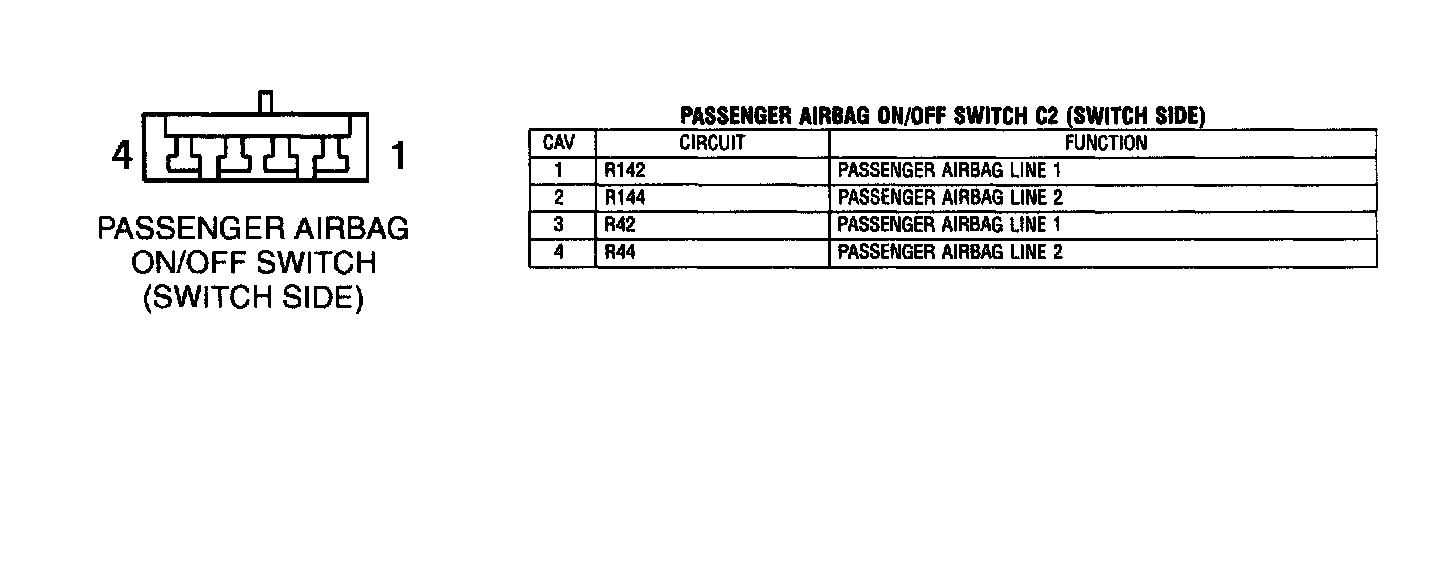

Passenger Airbag On/Off Switch (Switch Side):

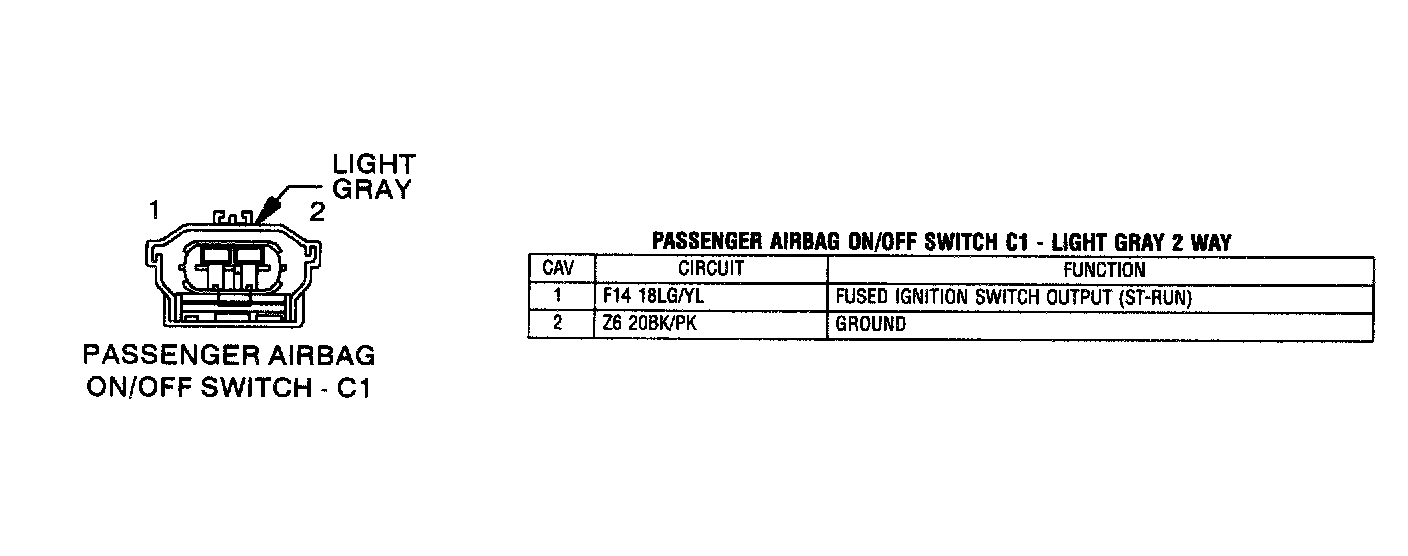

Passenger Airbag On/Off Switch - C1:

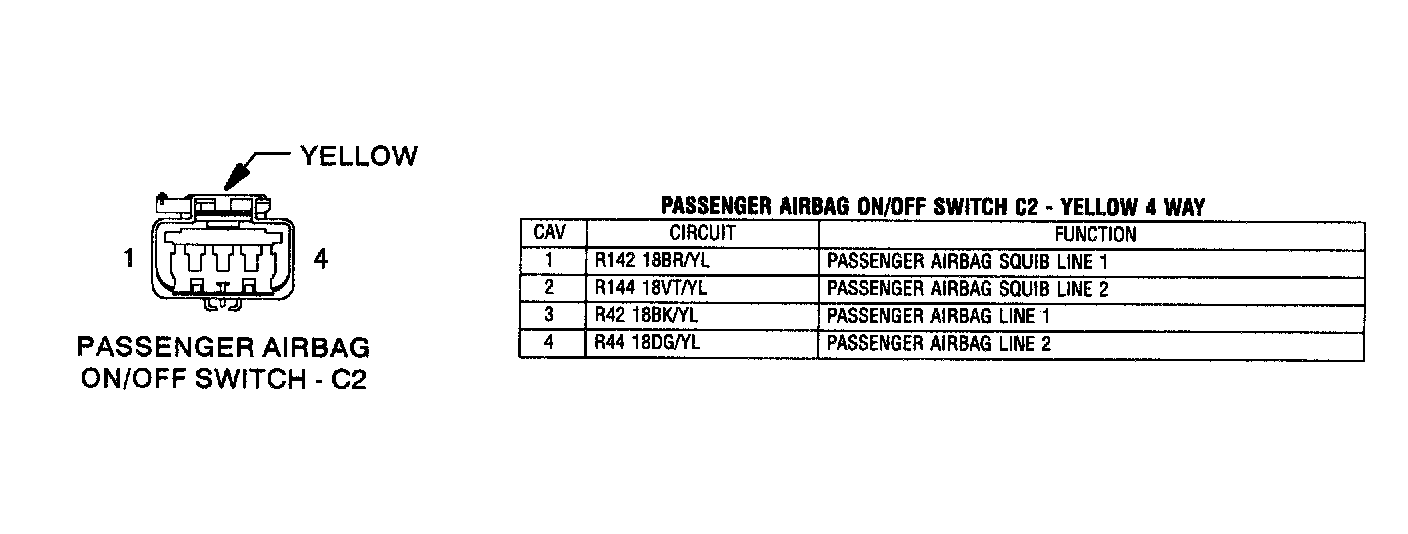

Passenger Airbag On/Off Switch - C2:
