Blend Door Replacement

REMOVAL
1. Remove and disassemble the heater-A/C housing.

Blend-Air Door:

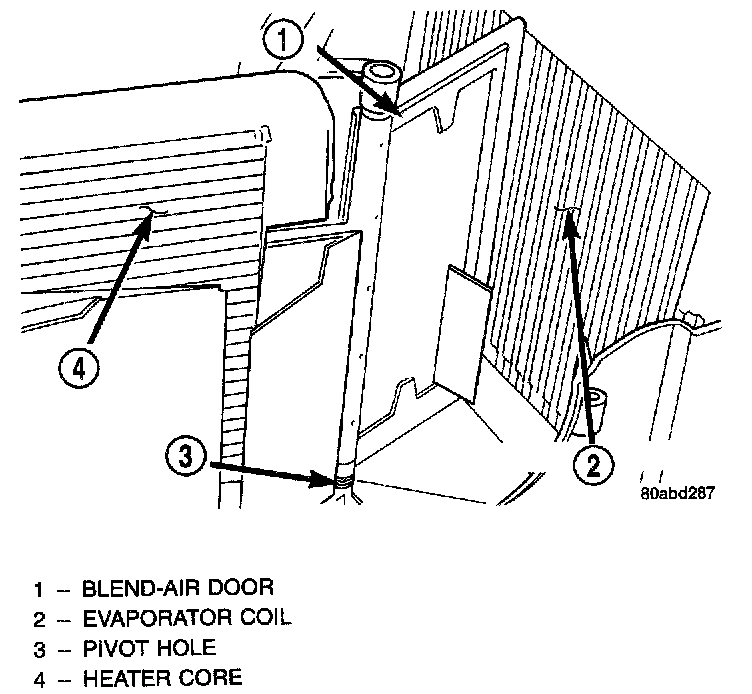

2. Lift the blend-air door pivot shaft out of the pivot hole in the bottom of the lower half of the Heater-A/C housing.
3. Reverse the removal procedures to install.
