Dome Lamp: Service and Repair
REMOVALSound Bar Dome Lamp Removal
1. Insert a small flat blade between the lamp housing and lamp lens. Carefully pry lamp lens from the lamp housing.
2. Separate lens from lamp.

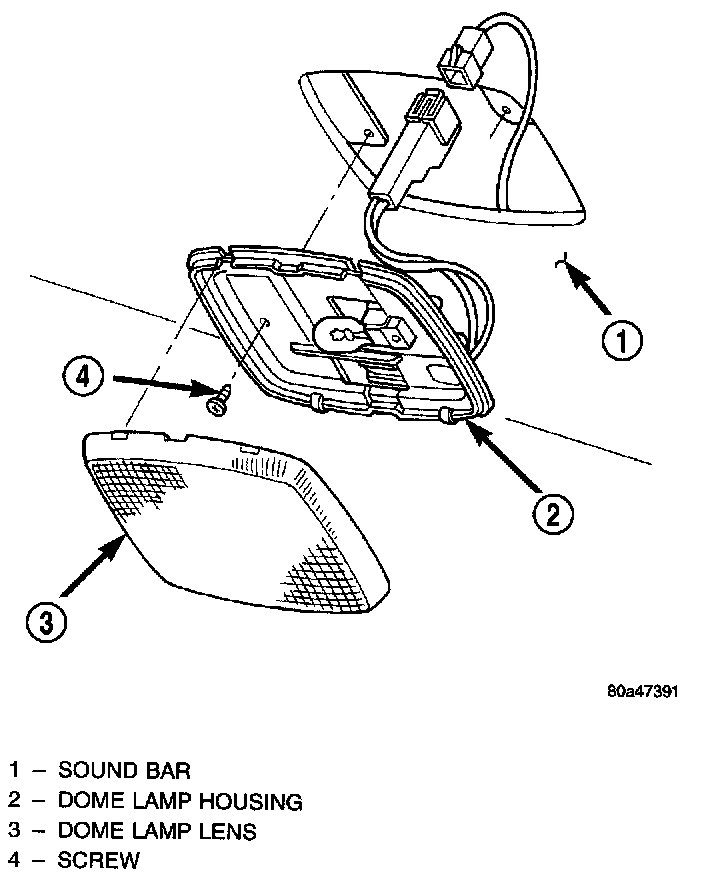

Sound Bar Dome Lamp:
3. Remove the screws attaching the lamp to the sound bar.
4. Disengage lamp electrical connector.
Cargo Area Dome Lamp Removal
Vehicles equipped with a hardtop have a dome lamp located above the rear window lift glass.
1. Remove the dome/cargo lamp lens by squeezing it at the top and bottom. This will separate the lens retaining tabs from the lamp housing shoulders.
2. Remove the lens from the lamp housing.
3. Remove the bulb.
4. Remove the screws that attach the lamp to the hardtop.
5. Separate the lamp from the hardtop.
6. Disconnect the lamp wire connector.
INSTALLATION
Sound Bar Dome Lamp Installation
1. Engage lamp electrical connector.
2. Position lamp in sound bar.
3. Install the screws attaching the lamp to the sound bar.
4. Position lamp lens on lamp housing and press into place.
Cargo Area Dome Lamp Installation
1. Connect the lamp wire connector.
2. Position the lamp in the hardtop.
3. Install the screws that attach the lamp to the hardtop.
4. Install the bulb.
5. Position the lens on the lamp housing and press into place.
