Fog/Driving Lamp: Testing and Inspection

Foglamp Diagnosis:

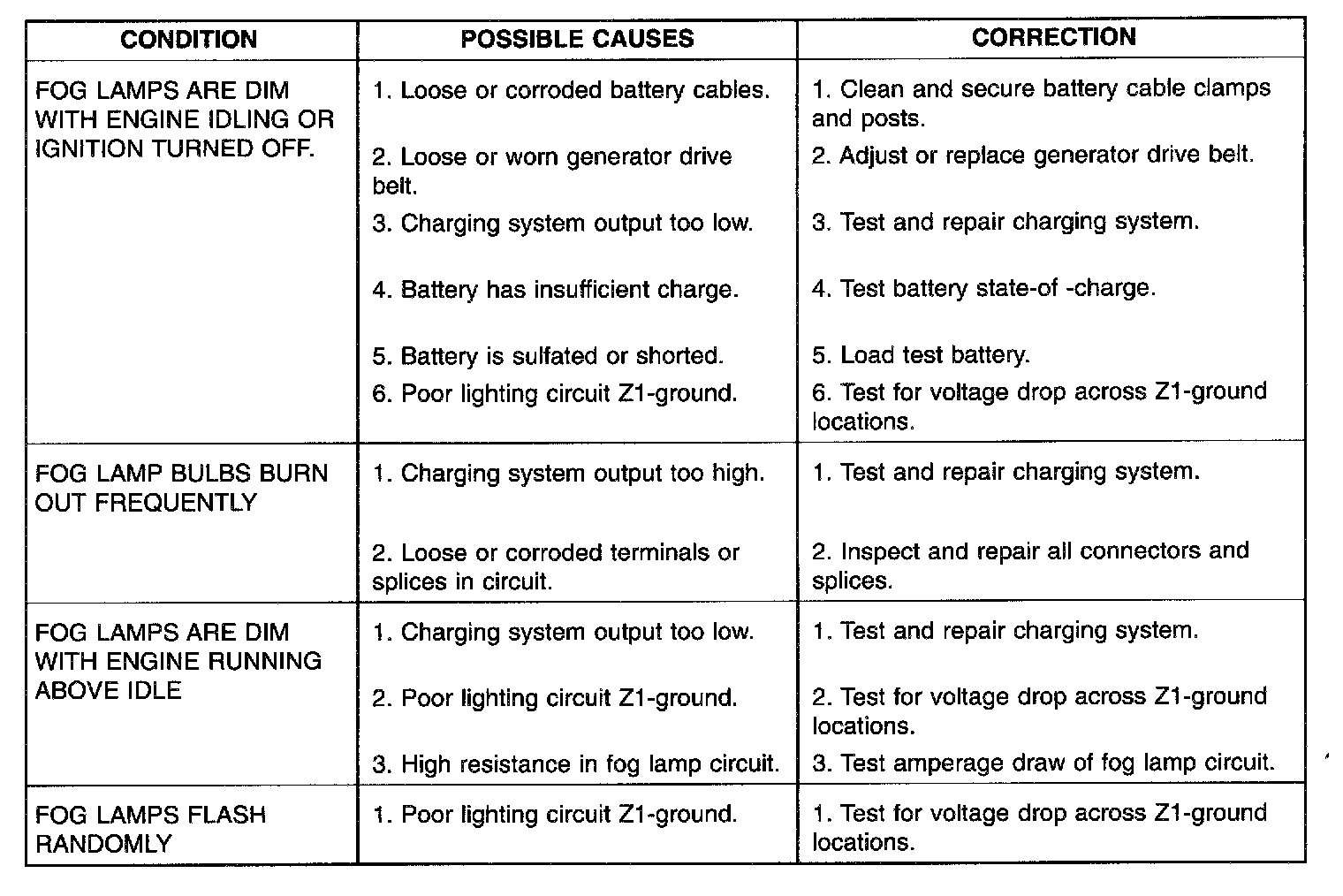

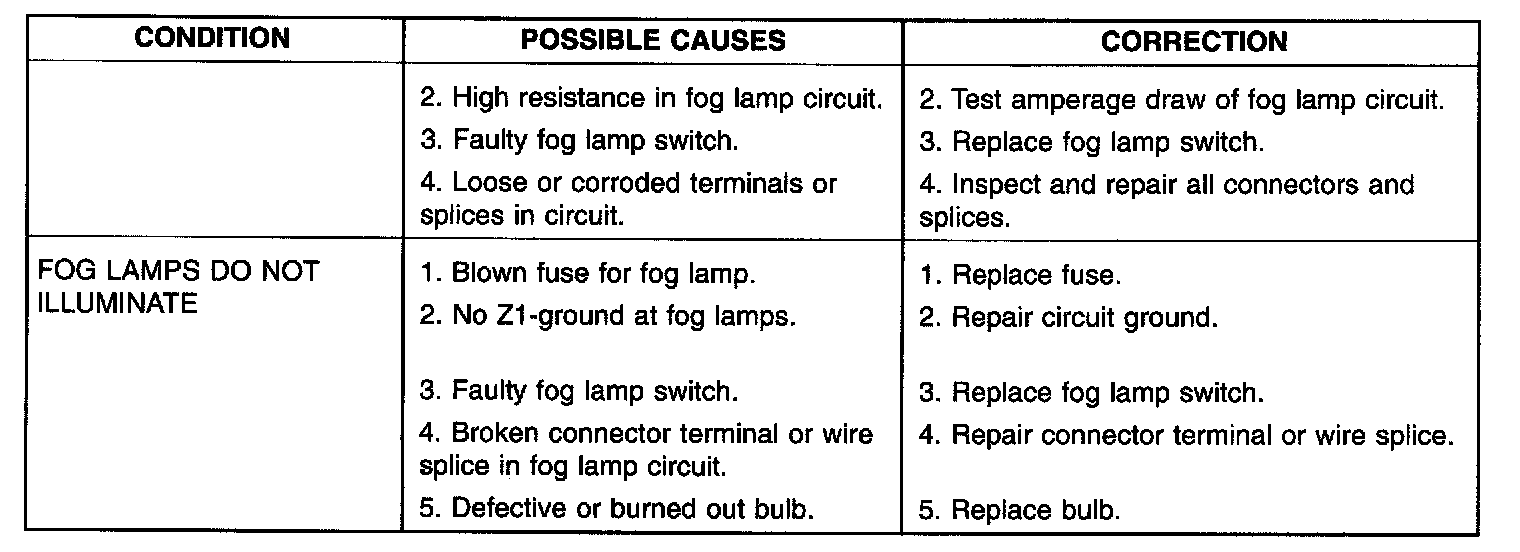

Fog Lamp Diagnosis:

When a vehicle experiences problems with the headlamp system, verify the condition of the battery connections, fuses, charging system, headlamp bulbs, wire connectors, relay, high beam switch, dimmer switch, and headlamp switch.
