Thermal Guard

REMOVAL
1. Remove the battery and the battery thermoguard from the battery tray as a unit.

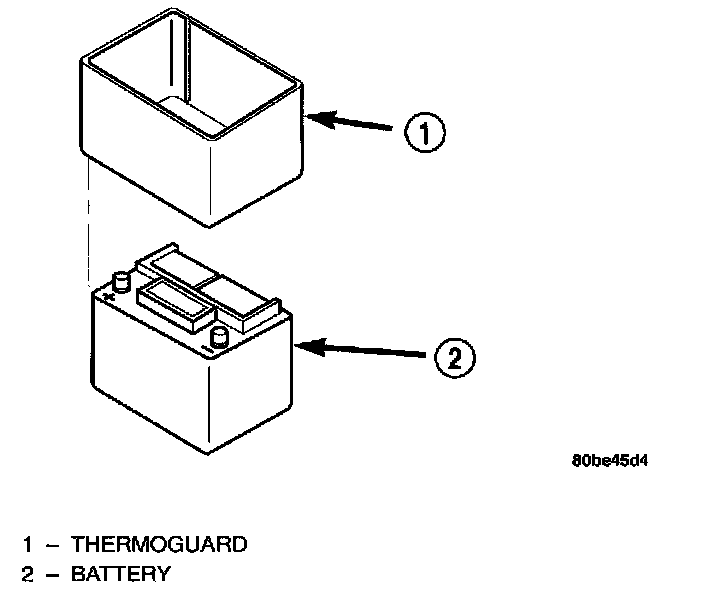

Battery Thermoguard Remove/Install:

2. Carefully and evenly slide the battery thermoguard up off of the battery case.

INSTALLATION
1. Clean and inspect the battery thermoguard.
2. Carefully and evenly slide the battery thermoguard down over the battery case.
3. Install the battery and the battery thermoguard into the battery tray as a unit.
