Side View Mirror

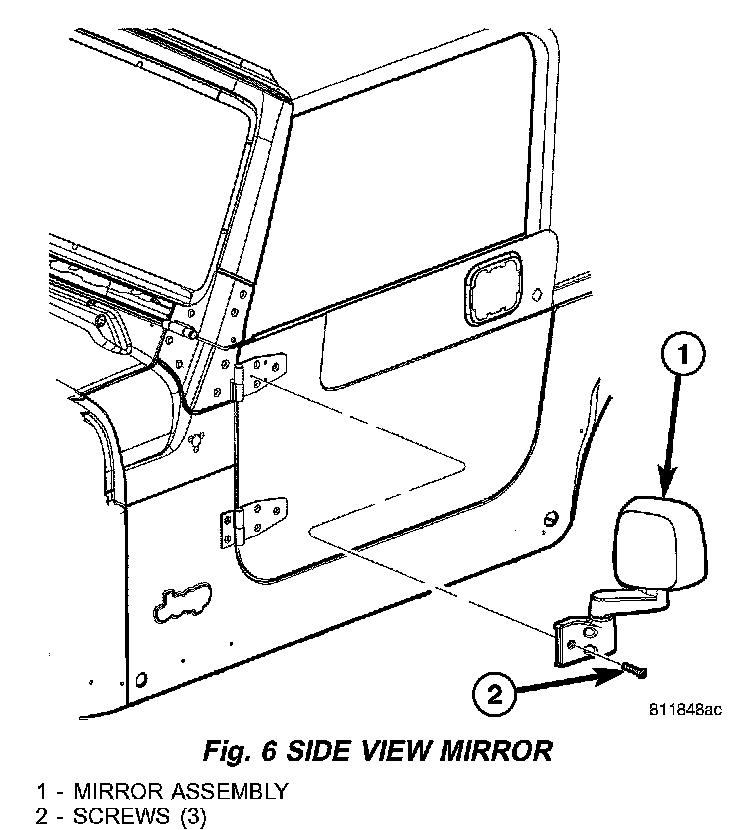

SIDE VIEW MIRROR REMOVAL Fig. 6:
1.
Remove the screws attaching the
mirror to the door hinge (Fig. 6).
2.
Remove the
mirror from the door hinge.
3.
Disconnect the electrical connector, if equipped.
INSTALLATION 1.
Clean the door hinge-
mirror base contact surface.
2.
Position the
mirror base at the door hinge.
3.
Install the three screws attaching the
mirror base to the door hinge.
