Checking Brake Switch Sense

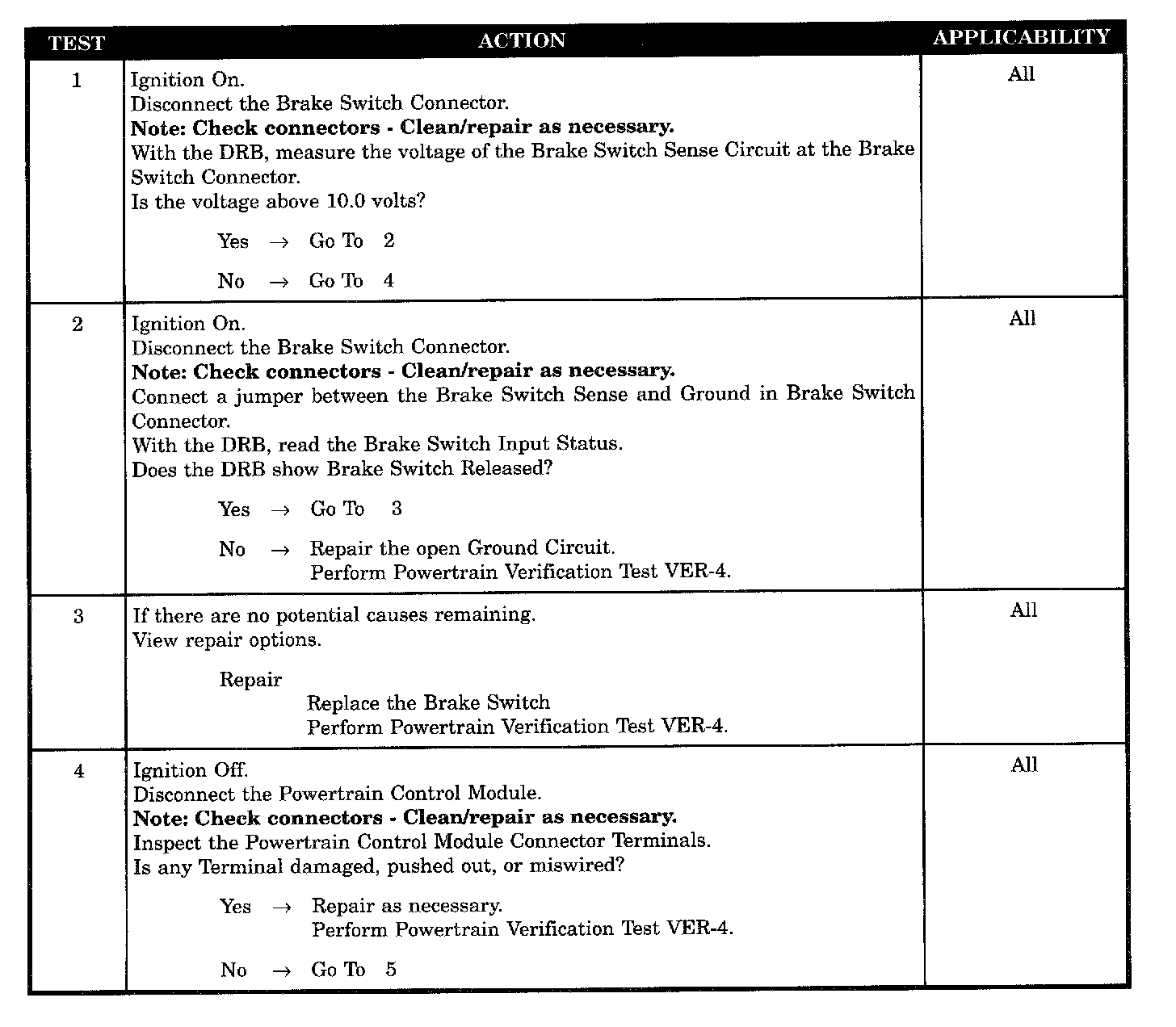

Tests 1 - 4:

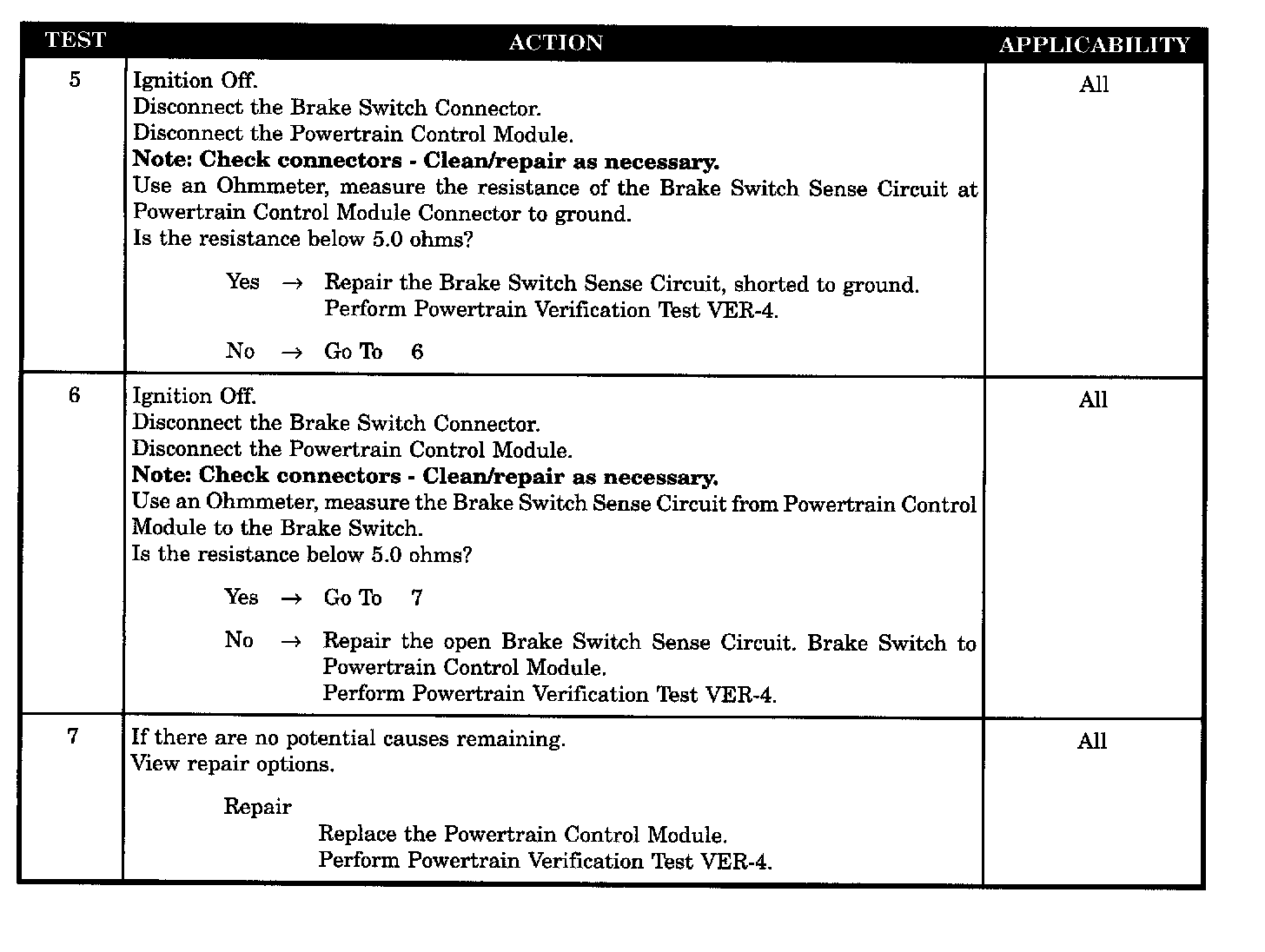

Tests 5 - 7:

SYMPTOM
CHECKING BRAKE SWITCH SENSE

POSSIBLE CAUSES
- Connector observable defect
- Ground circuit open
- Brake switch sense circuit open
- Brake switch sense circuit shorted to ground
- Brake switch
- Powertrain Control Module
