Blower Motor Switch: Service and Repair

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO AIR BAGS AND SEAT BELTS/AIR BAGS BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Using a trim stick or another suitable wide flat-bladed tool, gently pry the blower motor switch knob off of the switch stem from the front of the Heater-A/C control.
3. Remove the Heater-A/C control from the instrument panel.

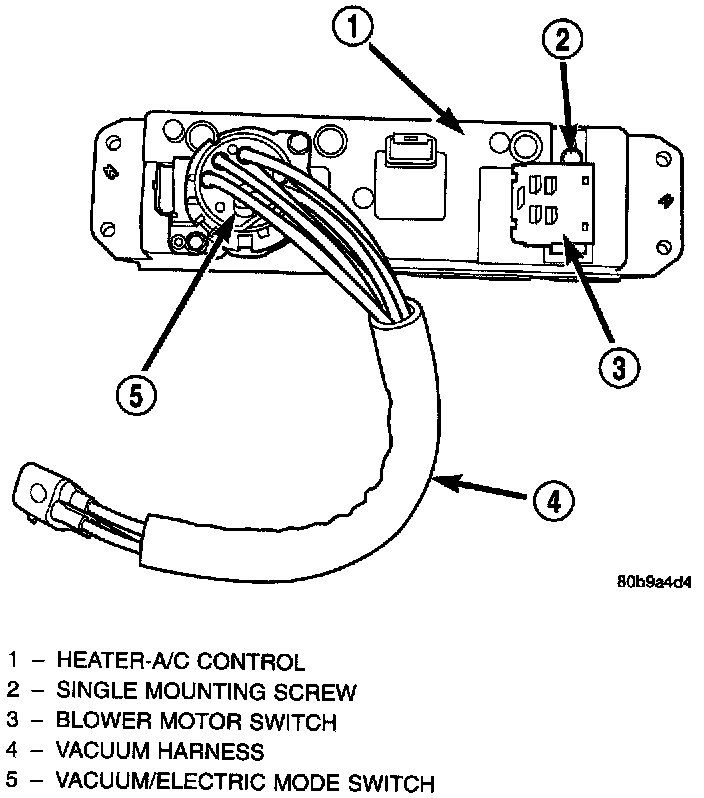

Blower Motor Switch Remove/Install:

4. Remove the screw that secures the blower motor switch to the rear of the Heater-A/C control.
5. Remove the blower motor switch from the rear of the Heater-A/C control.

INSTALLATION
1. Reverse the removal procedures to install.
2. Tighten the Heater-A/C control and switch mounting screws to 2.2 Nm (20 in. lbs.).
