Compressor Clutch Relay: Locations
8w-10-2:

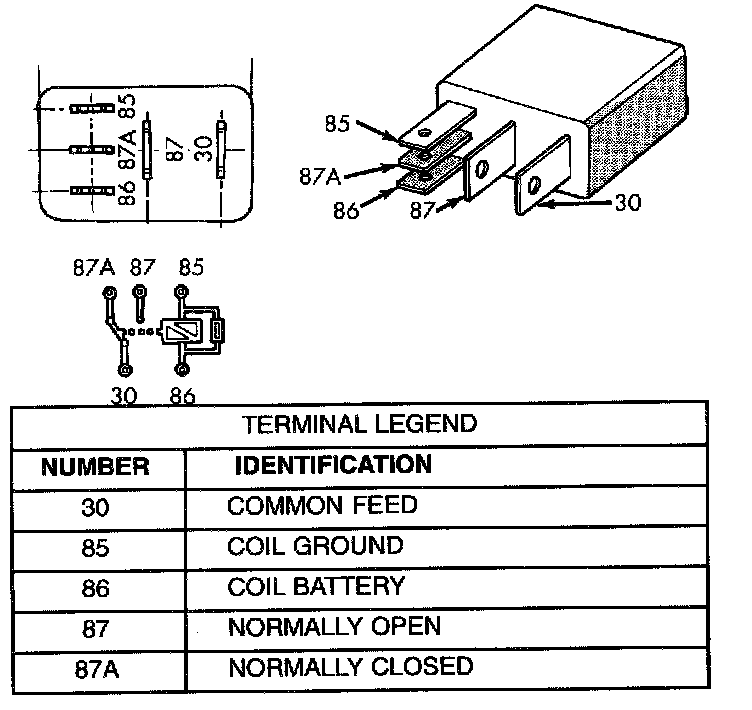

Compressor Clutch Relay:
The compressor clutch relay is located in the Power Distribution Center (PDC).
