Wrangler L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

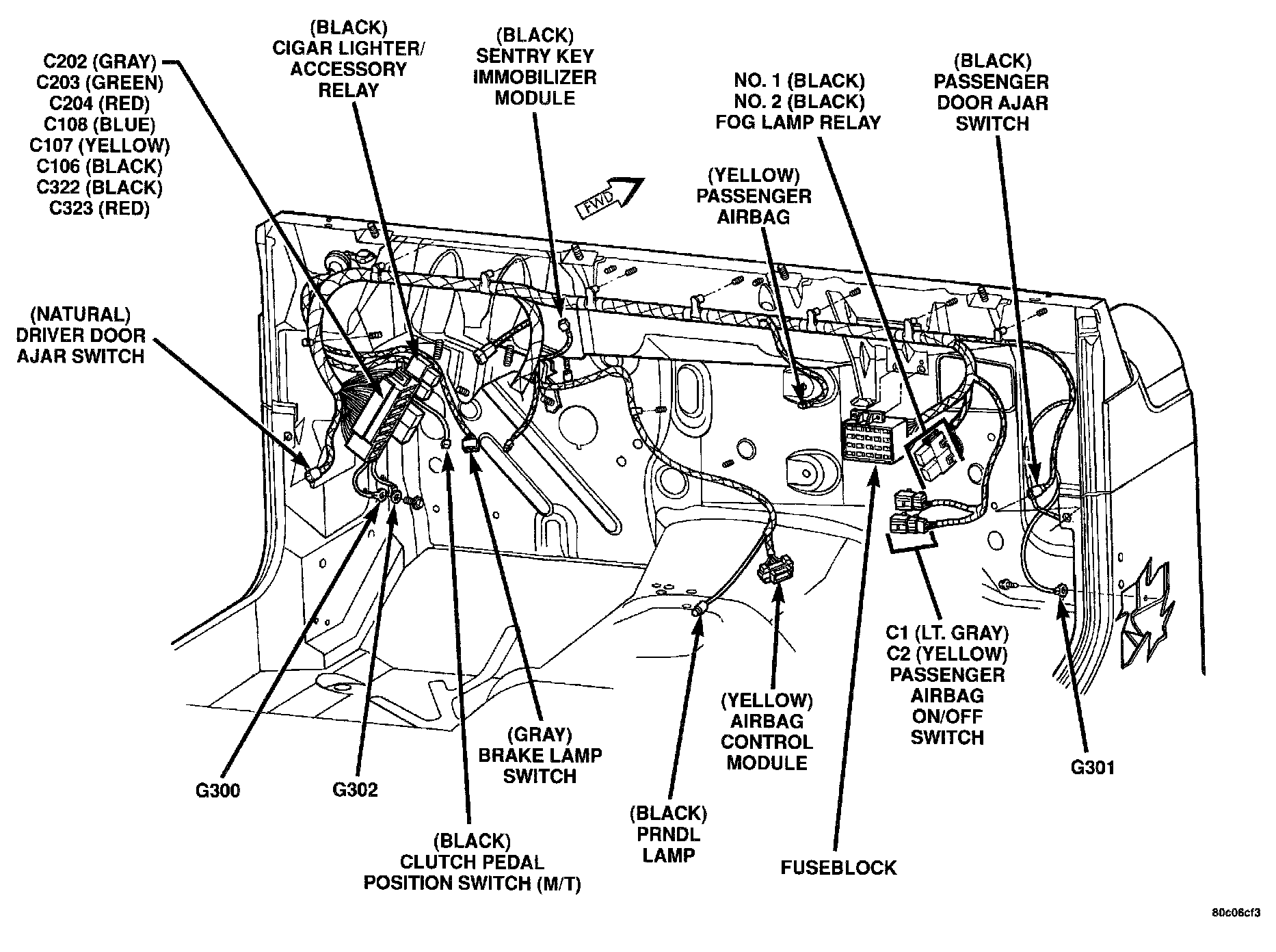

Figure 14
Figure 14
Dash Panel Connectors:
