Jeep
>>
2000
>>
Wrangler L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

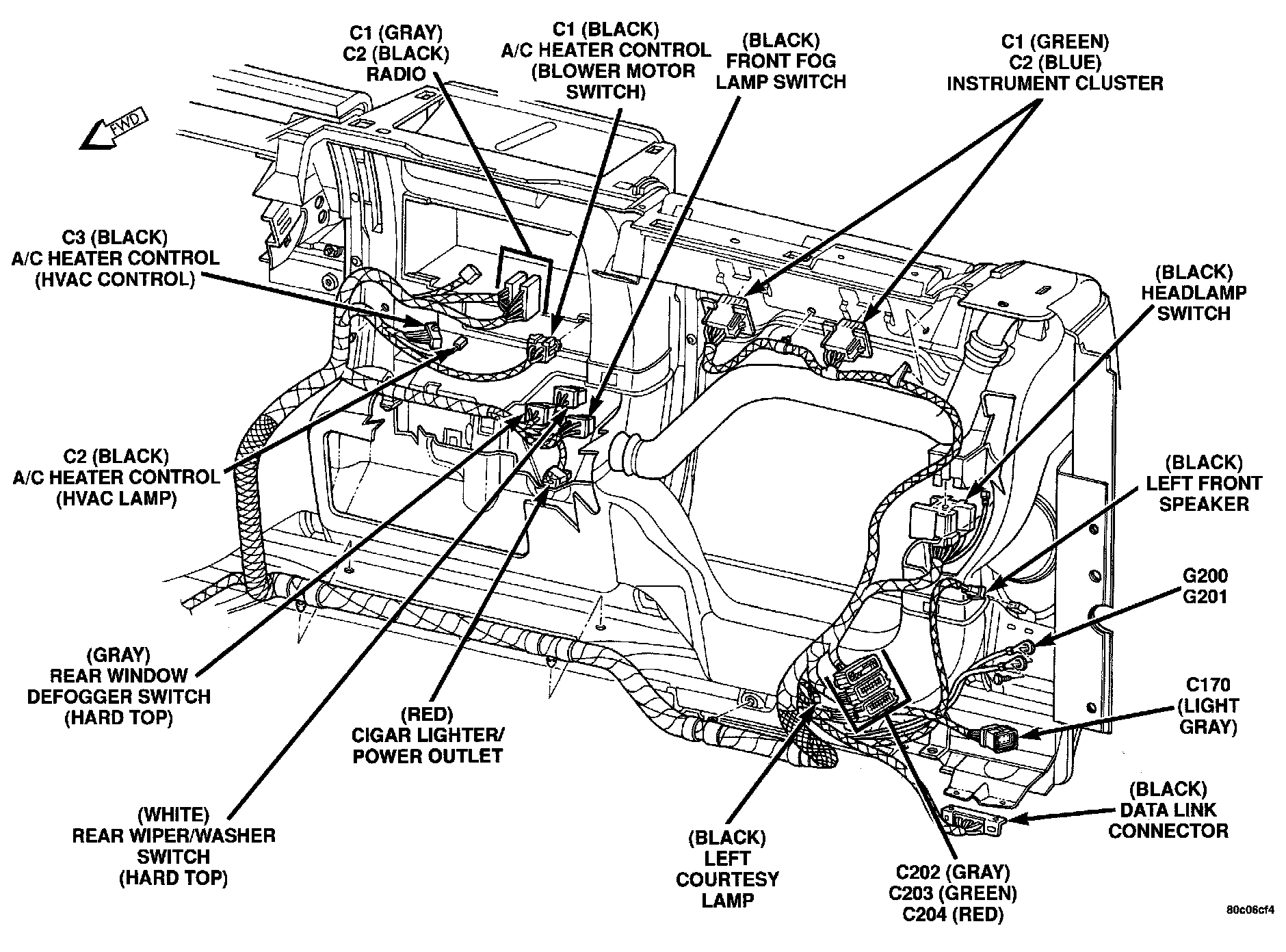

Figure 15
Figure 15
Instrument Panel Wiring Connectors:
