Wrangler L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
Connector Views

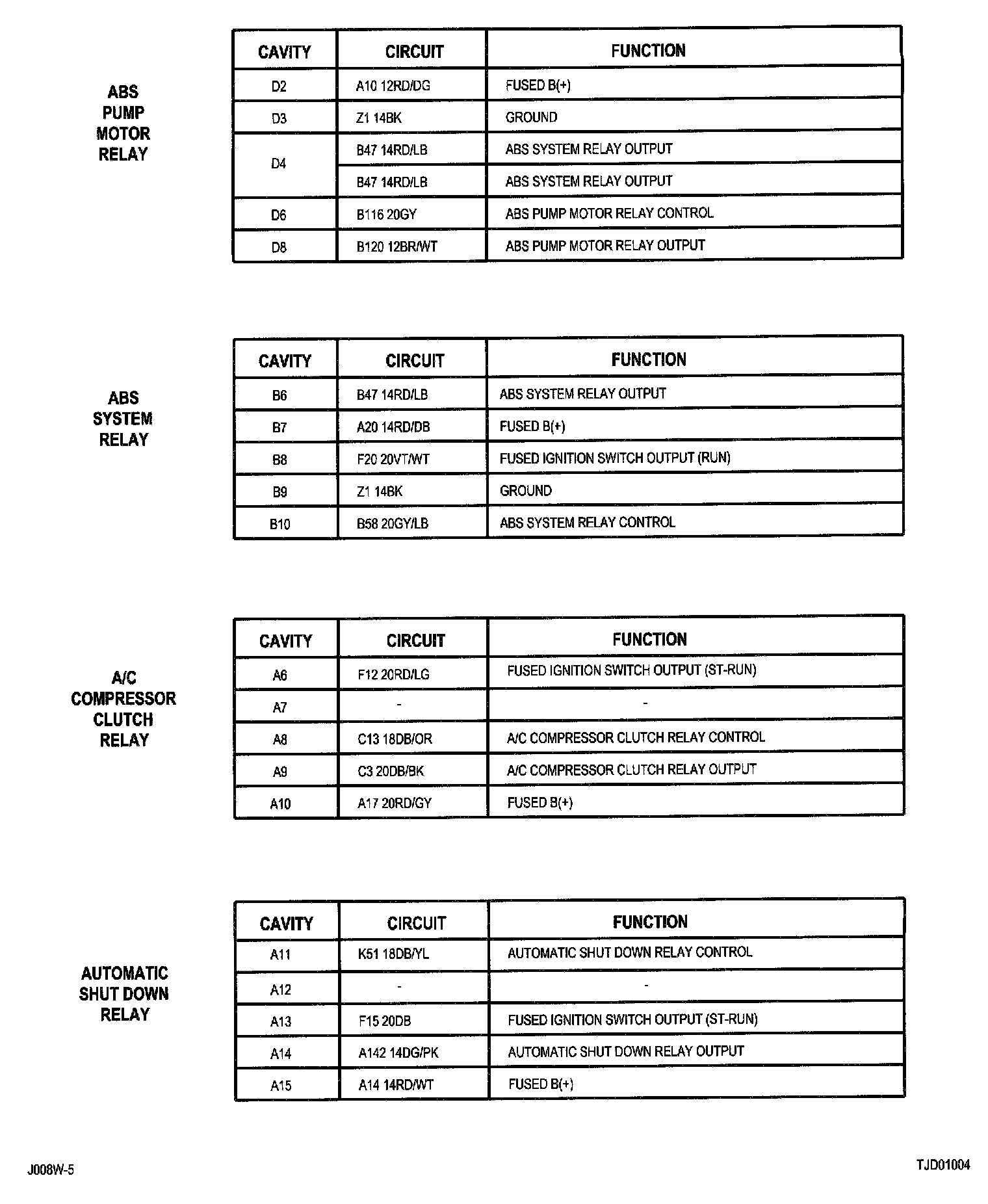

8w-10-2:

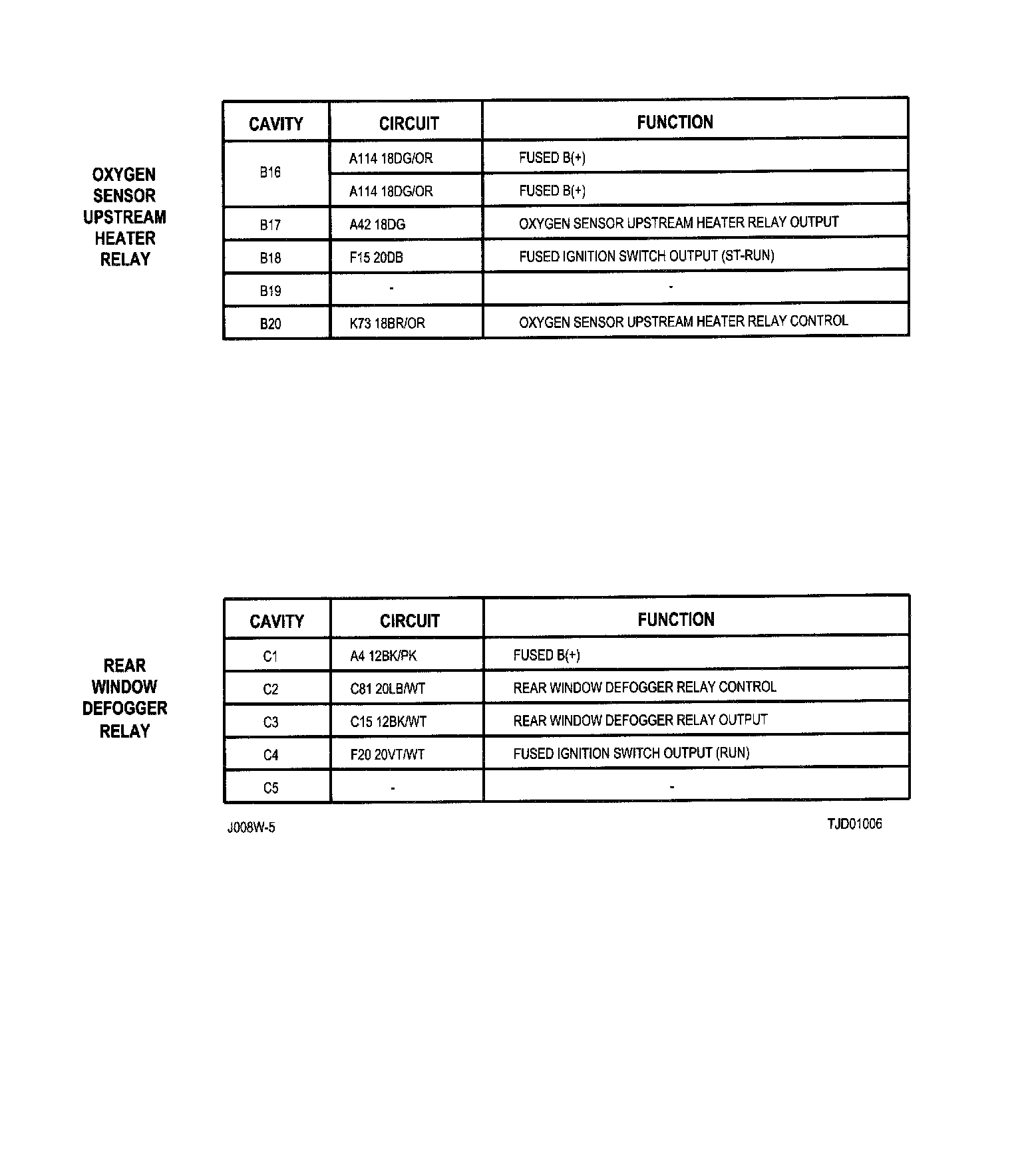

8w-10-3:

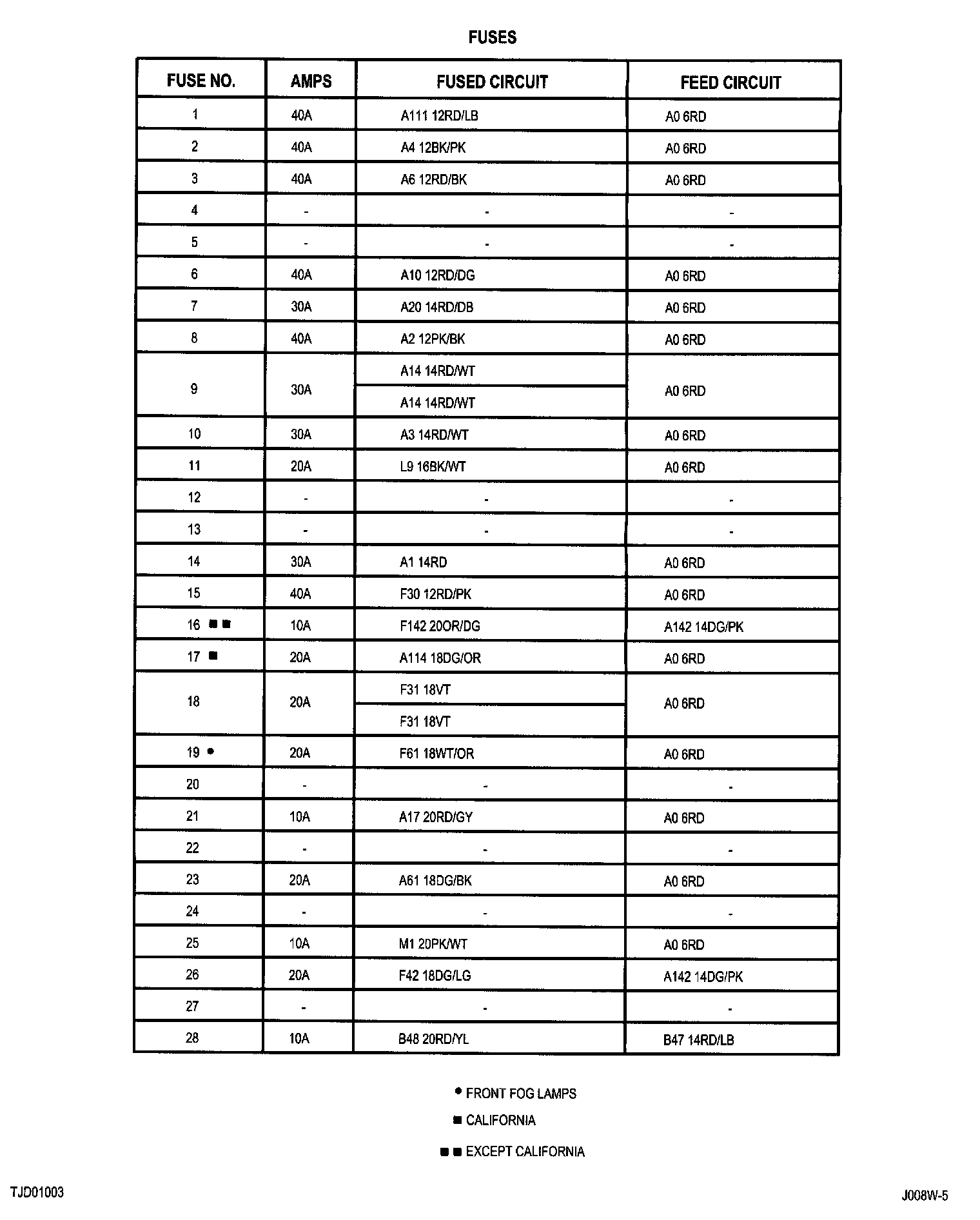

8w-10-4:

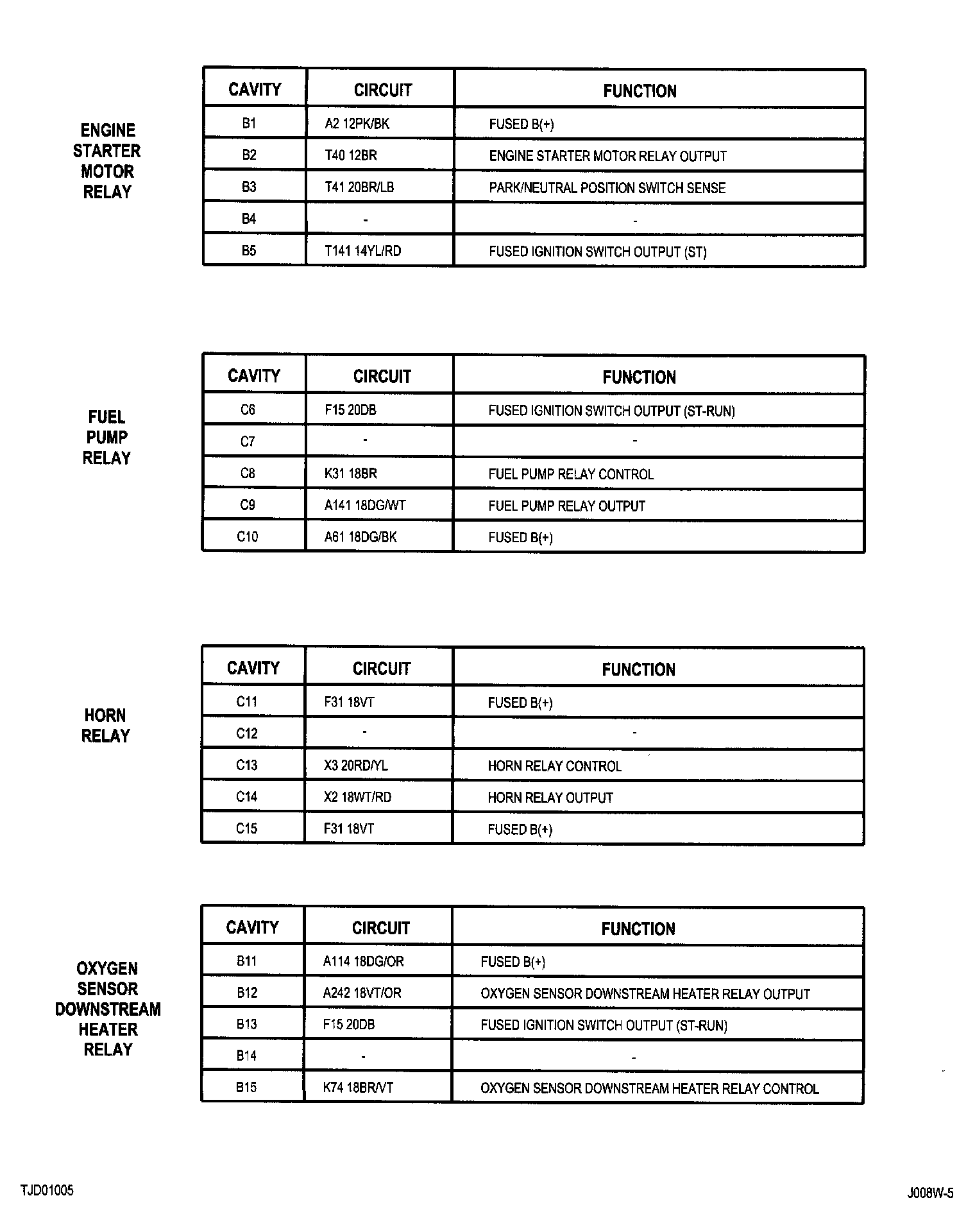

8w-10-5:
8w-10-6:
