Checking IAC Motor

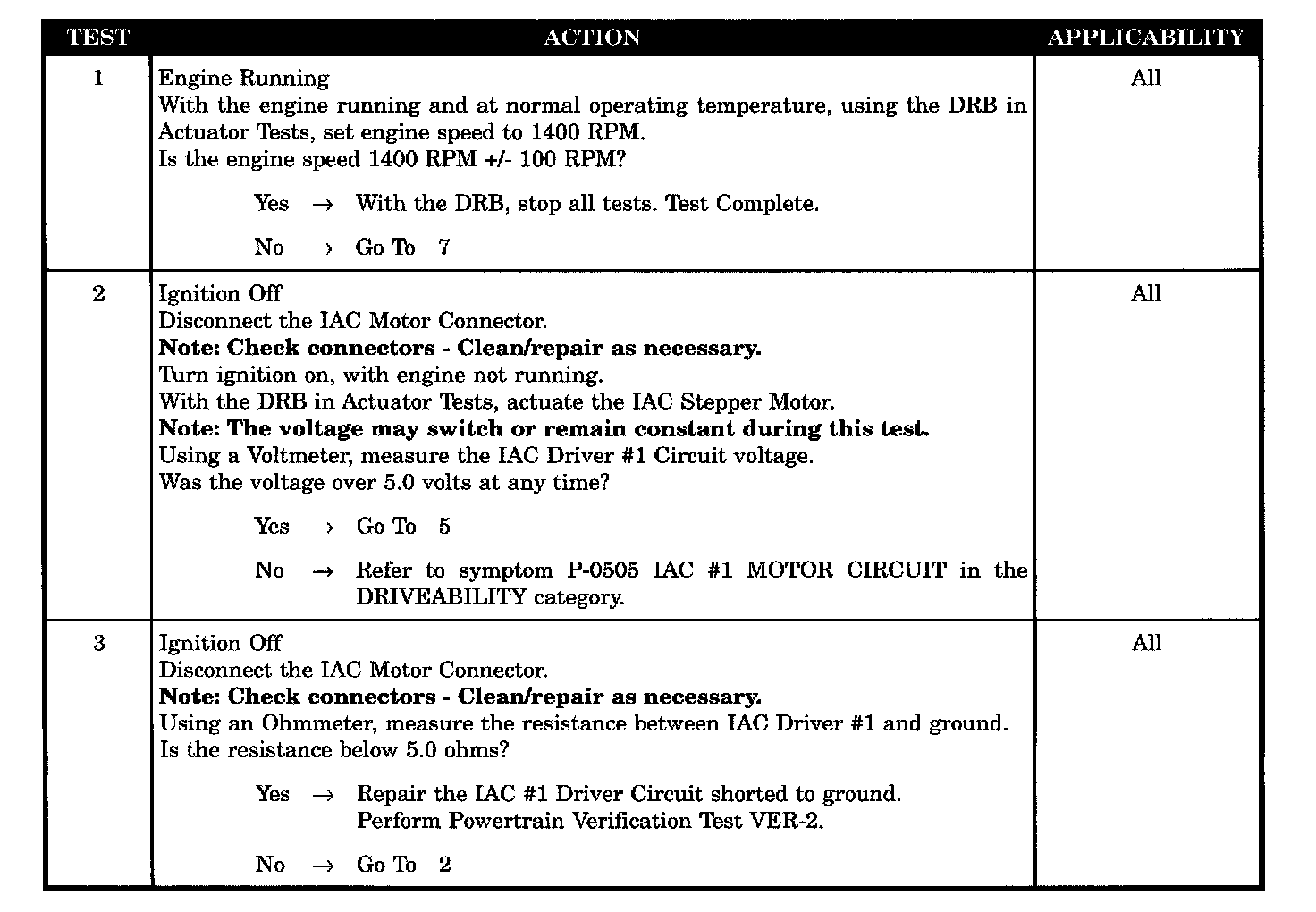

Tests 1 - 3:

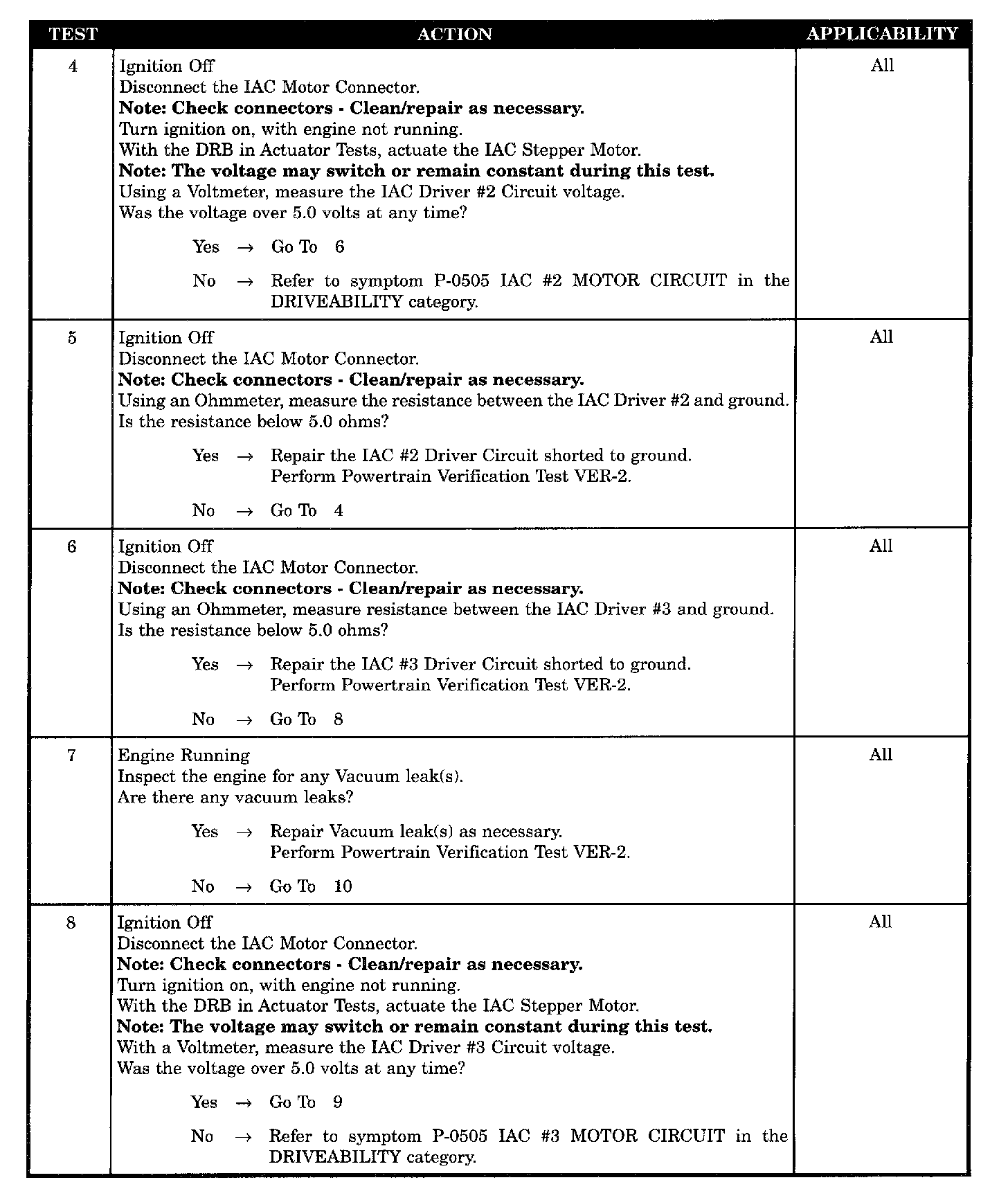

Tests 4 - 8:

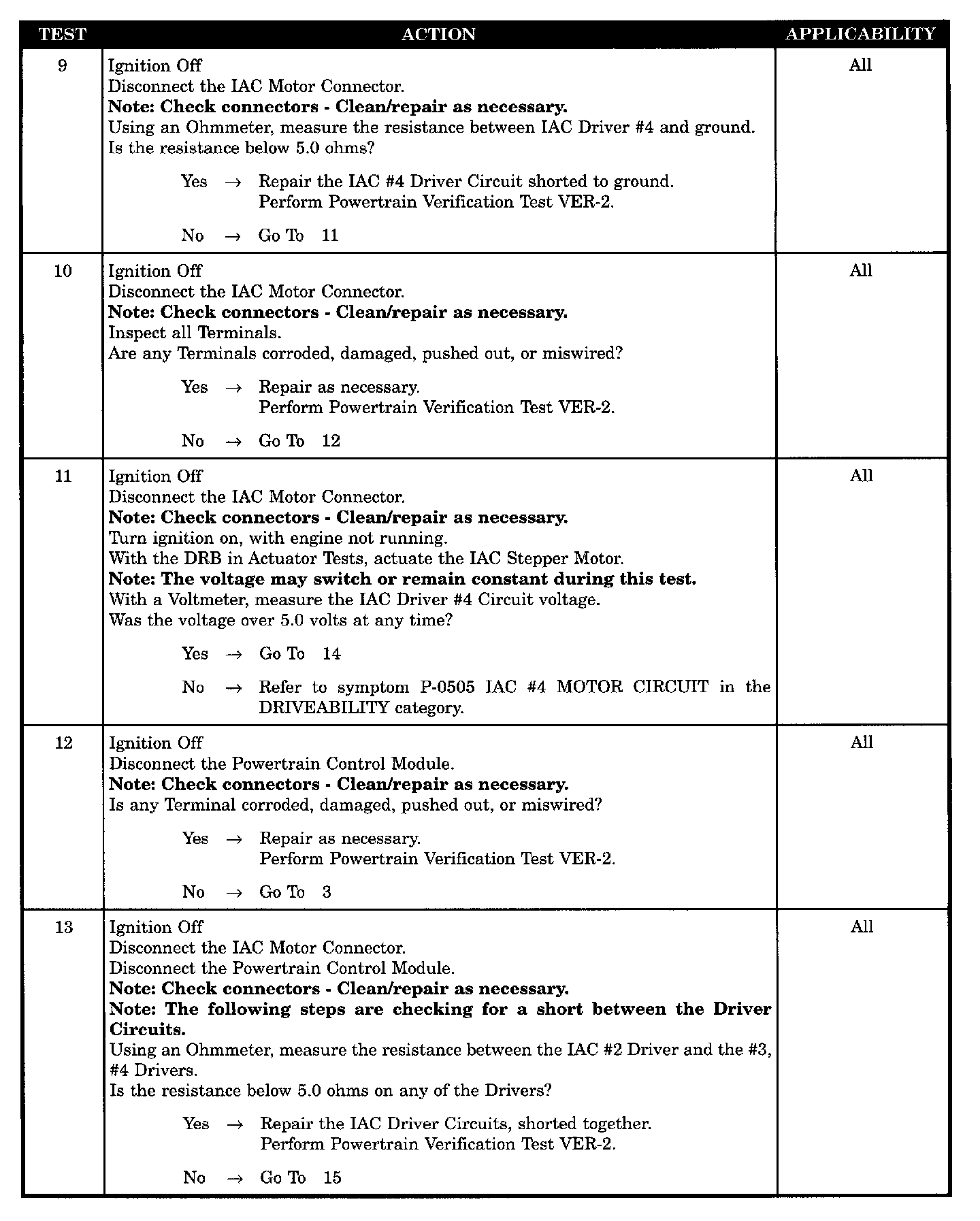

Tests 9 - 13:

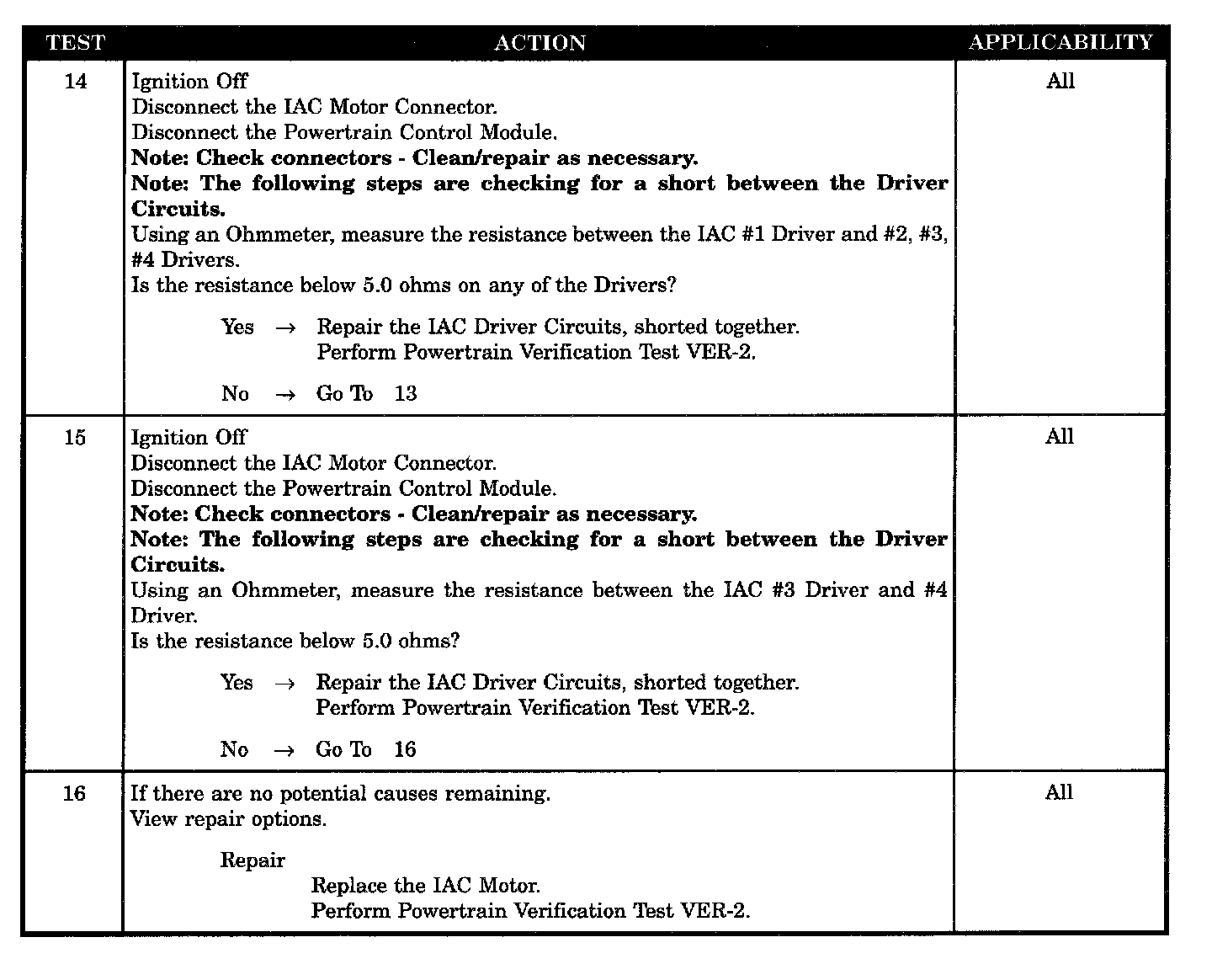

Tests 14 - 16:





SYMPTOM
CHECKING THE [1][2]IDLE AIR CONTROL MOTOR

POSSIBLE CAUSES
- Engine vacuum leaks
- IAC driver # 1 shorted to ground
- IAC driver # 2 shorted to ground
- IAC driver # 3 shorted to ground
- IAC driver # 4 shorted to ground
- IAC driver circuits # 2, 3, 4 shorted together
- IAC driver circuits # 1, 2, 3, 4 shorted together
- IAC driver circuits # 3 and 4 shorted together
- IAC motor connector terminals
- PCM connector terminals
- IAC motor
