Checking Park/Neutral Position Switch

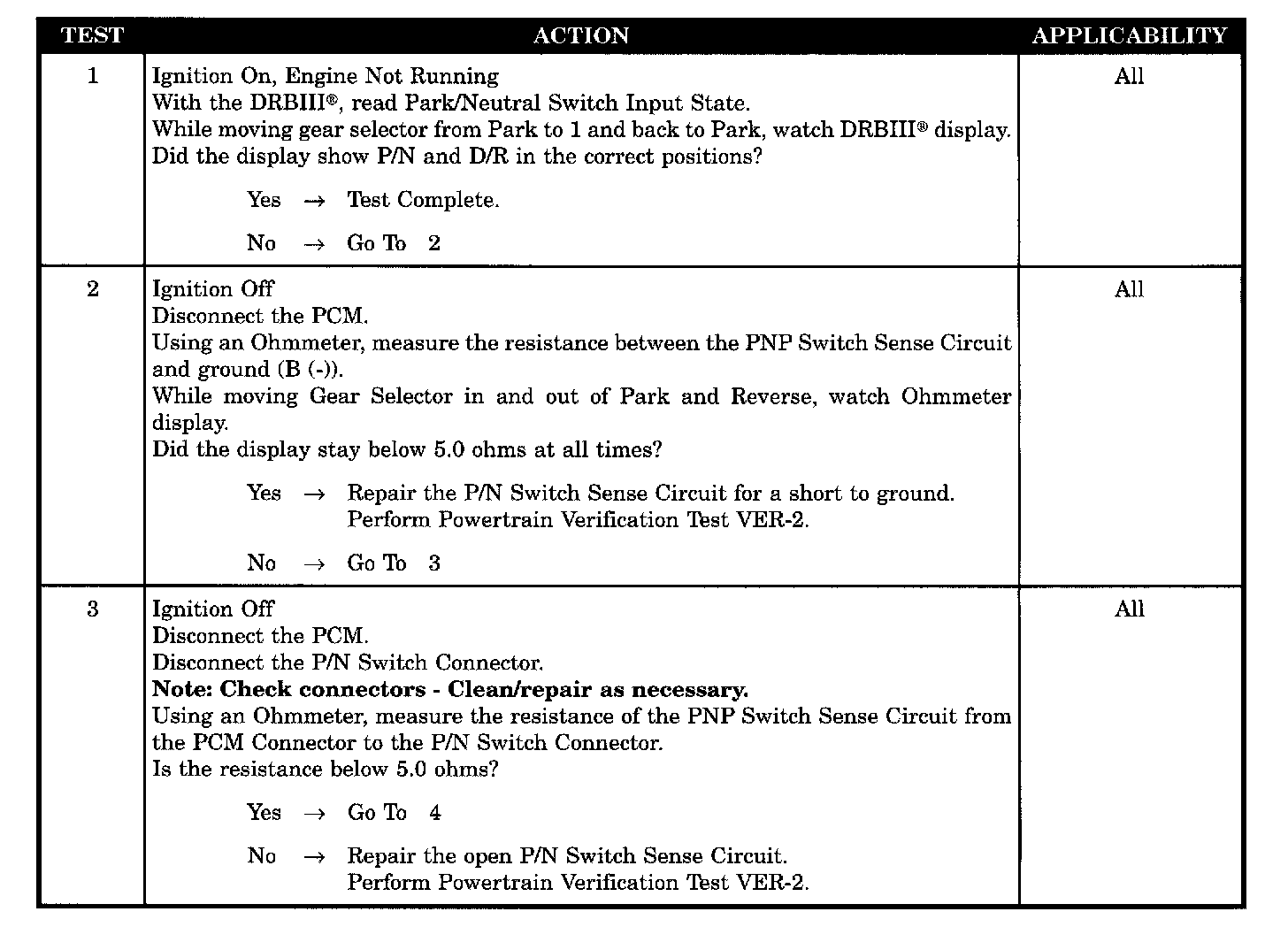

Tests 1 - 3:

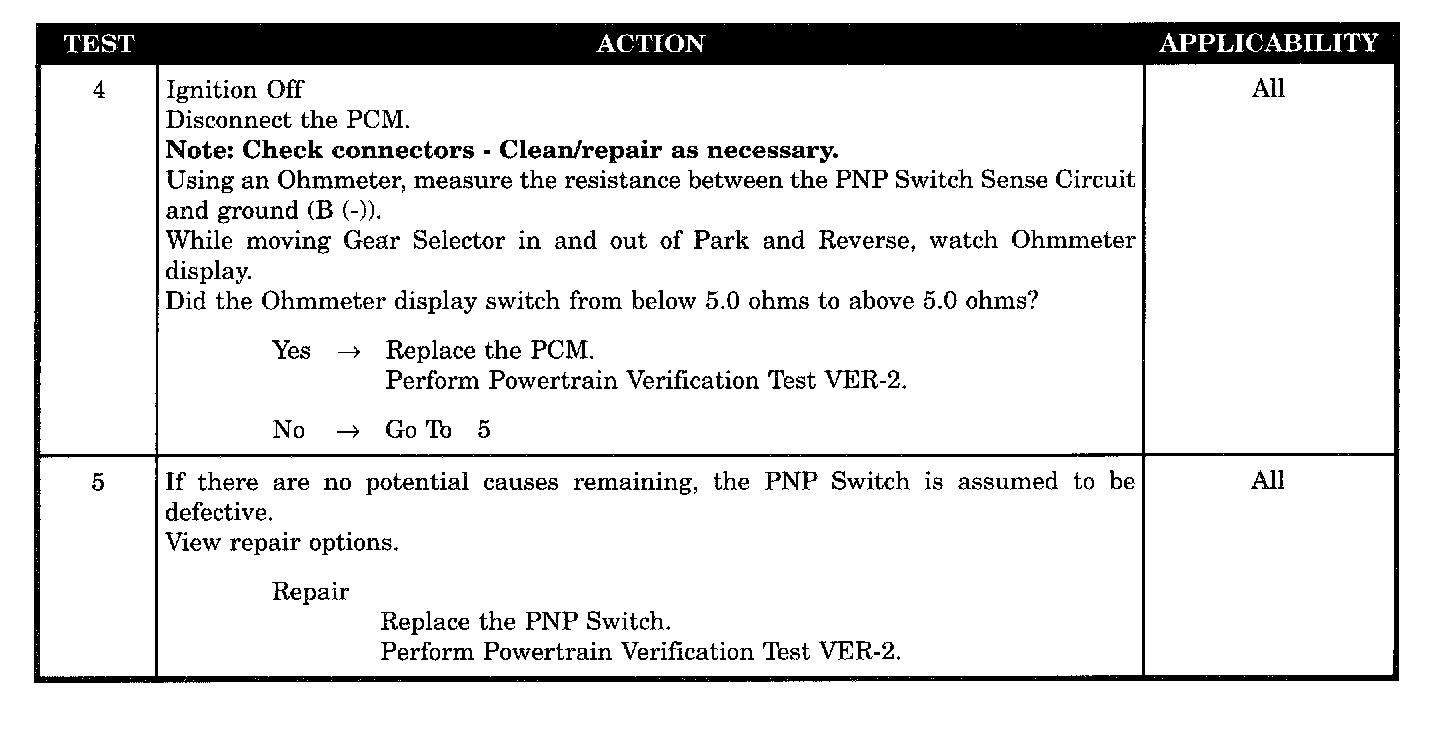

Tests 4 - 5:

SYMPTOM
CHECKING THE PARK/NEUTRAL SWITCH (AUTO ONLY)

POSSIBLE CAUSES
- PNP switch
- PNP switch sense circuit open
- PNP switch sense circuit shorted to ground
- PCM defective (PNP switch)
