System Diagrams
8w-30-2:
Automatic Shut Down Relay
Fuse 9 (PDC)
Fuse 12 (FB)
Fuse Block
G105
Power Distribution Center
Powertrain Control Module
Sentry Key Immobilizer Module
8w-30-3:
A/C Compressor Clutch Relay
Fuel Pump Module
Fuel Pump Relay
Fuse 12 (FB)
Fuse Block
G105
Power Distribution Center
Powertrain Control Module
Sentry Key Immobilizer Module

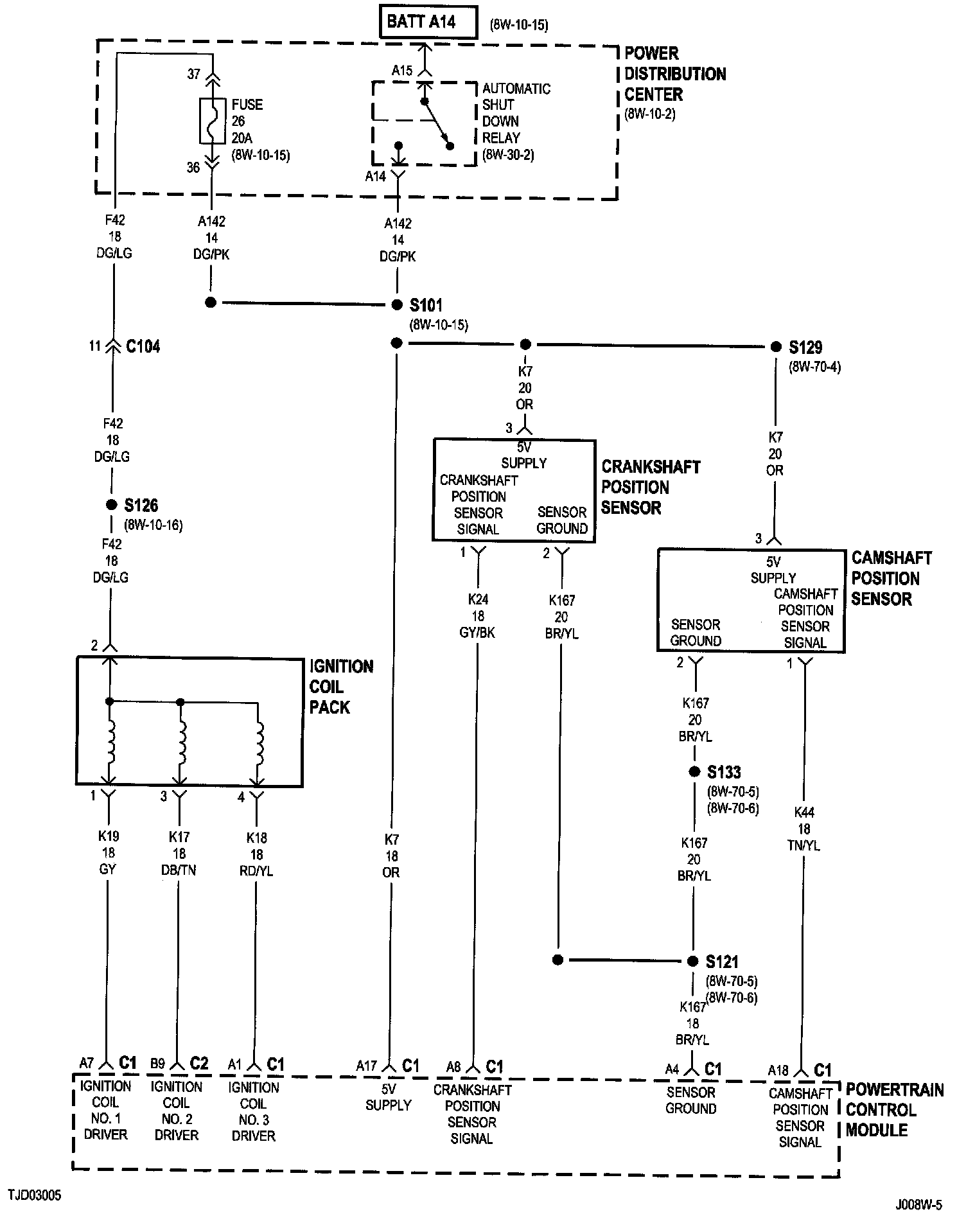

8w-30-5:
Automatic Shut Down Relay
Camshaft Position Sensor
Crankshaft Position Sensor
Fuse 26 (PDC)
Ignition Coil Pack
Power Distribution Center
Powertrain Control Module

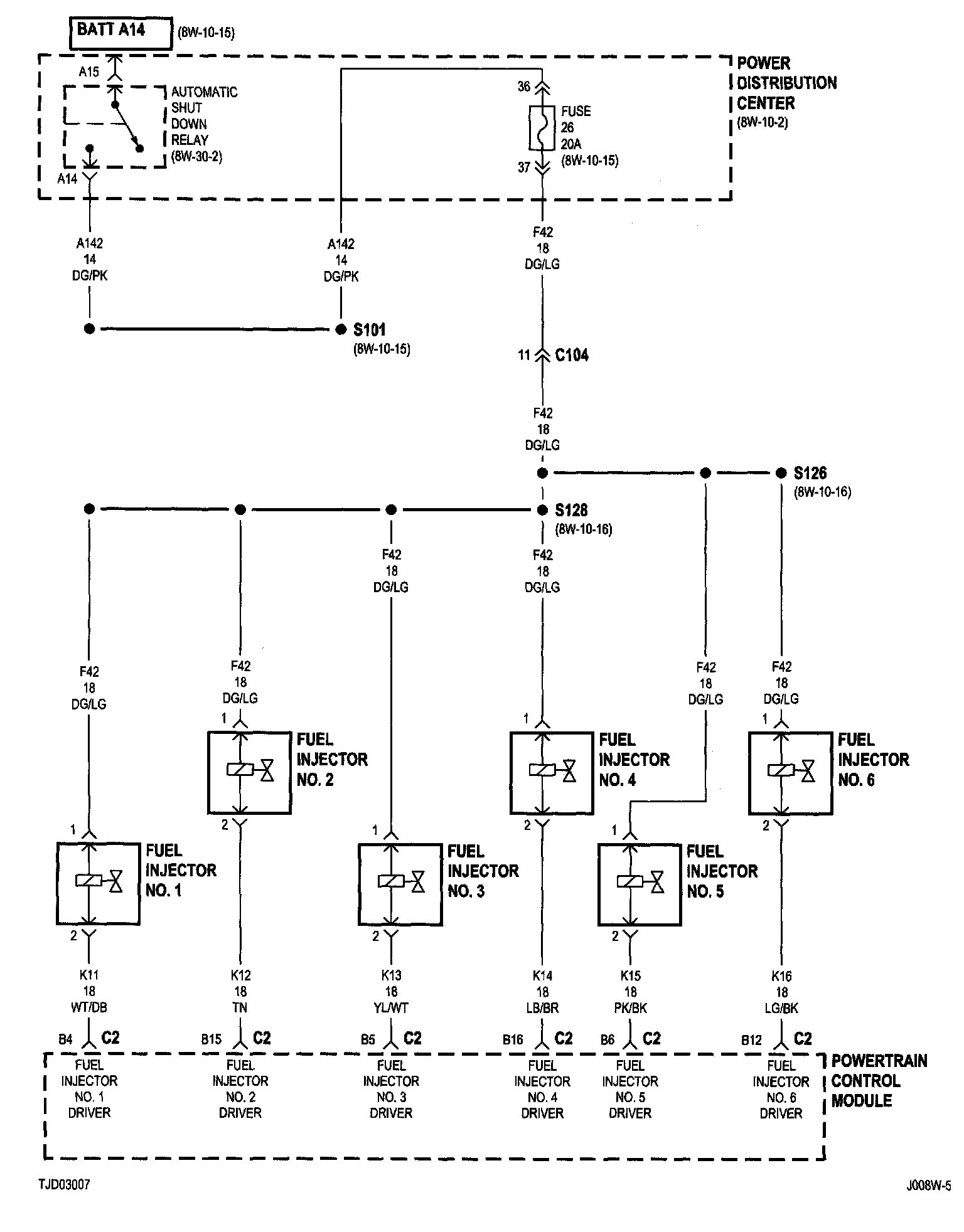

8w-30-7:
Automatic Shut Down Relay
Fuel Injector No.1
Fuel Injector No.2
Fuel Injector No.3
Fuel Injector No.4
Fuel Injector No.5
Fuel Injector No.6
Fuse 26 (PDC)
Power Distribution Center
Powertrain Control Module

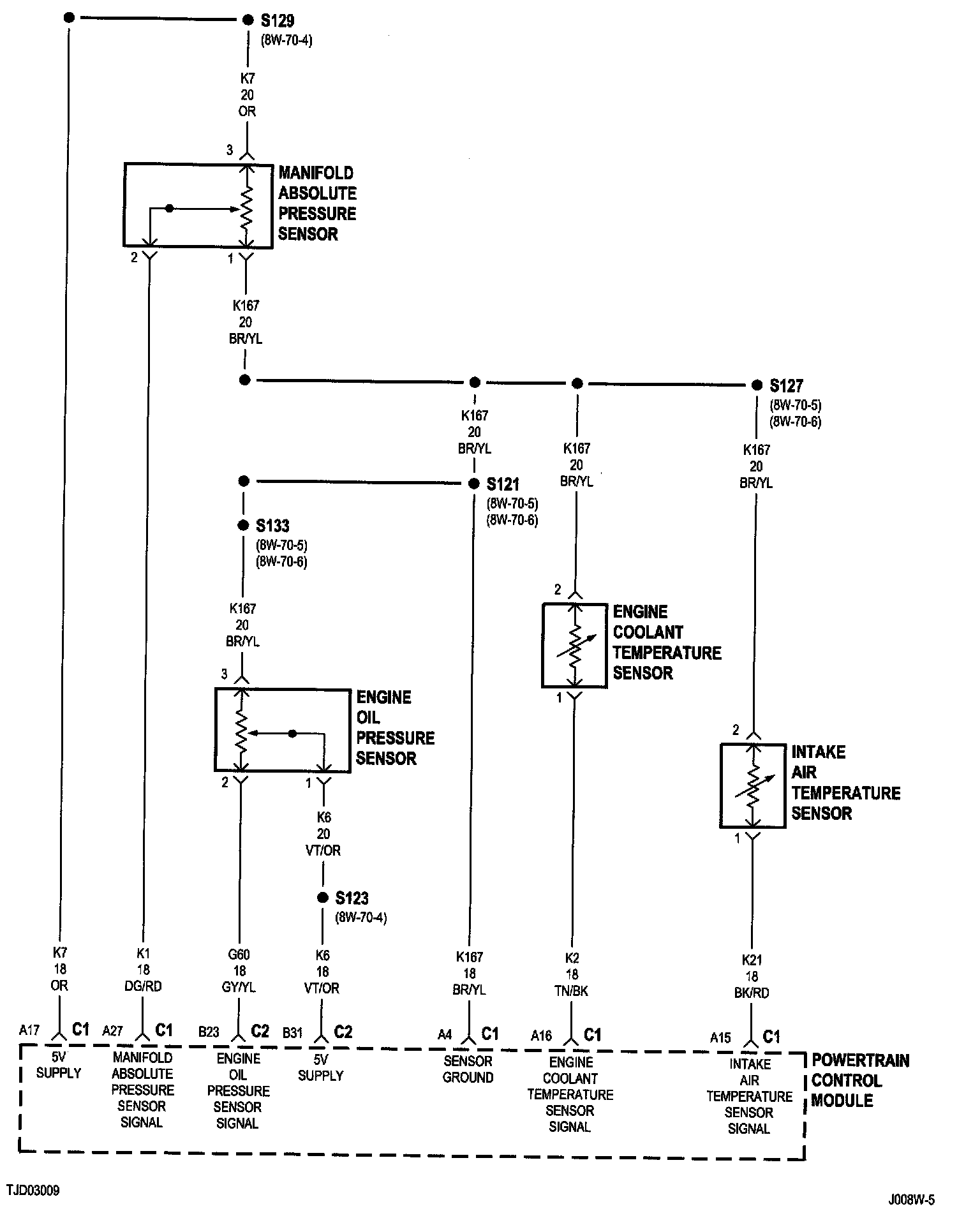

8w-30-9:
Engine Coolant Temperature Sensor
Engine Oil Pressure Sensor
Intake Air Temperature Sensor
Manifold Absolute Pressure Sensor
Powertrain Control Module

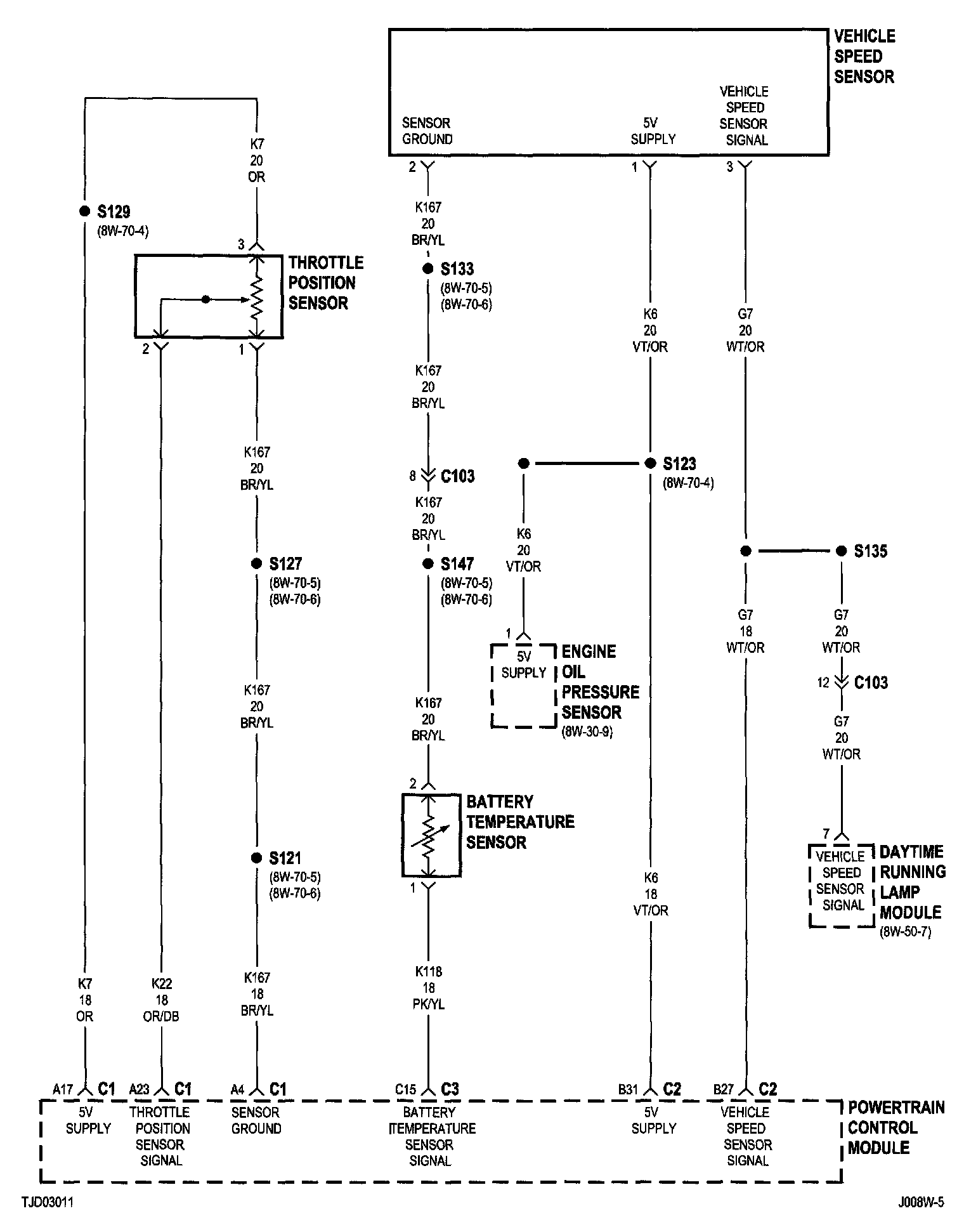

8w-30-11:
Battery Temperature Sensor
Daytime Running Lamp Module
Engine Oil Pressure Sensor
Powertrain Control Module
Throttle Position Sensor
Vehicle Speed Sensor
S135
8w-30-12 (Except California):
Automatic Shut Down Relay
Fuse 16 (PDC)
G105
Oxygen Sensor 1/2 Downstream
Power Distribution Center
Powertrain Control Module

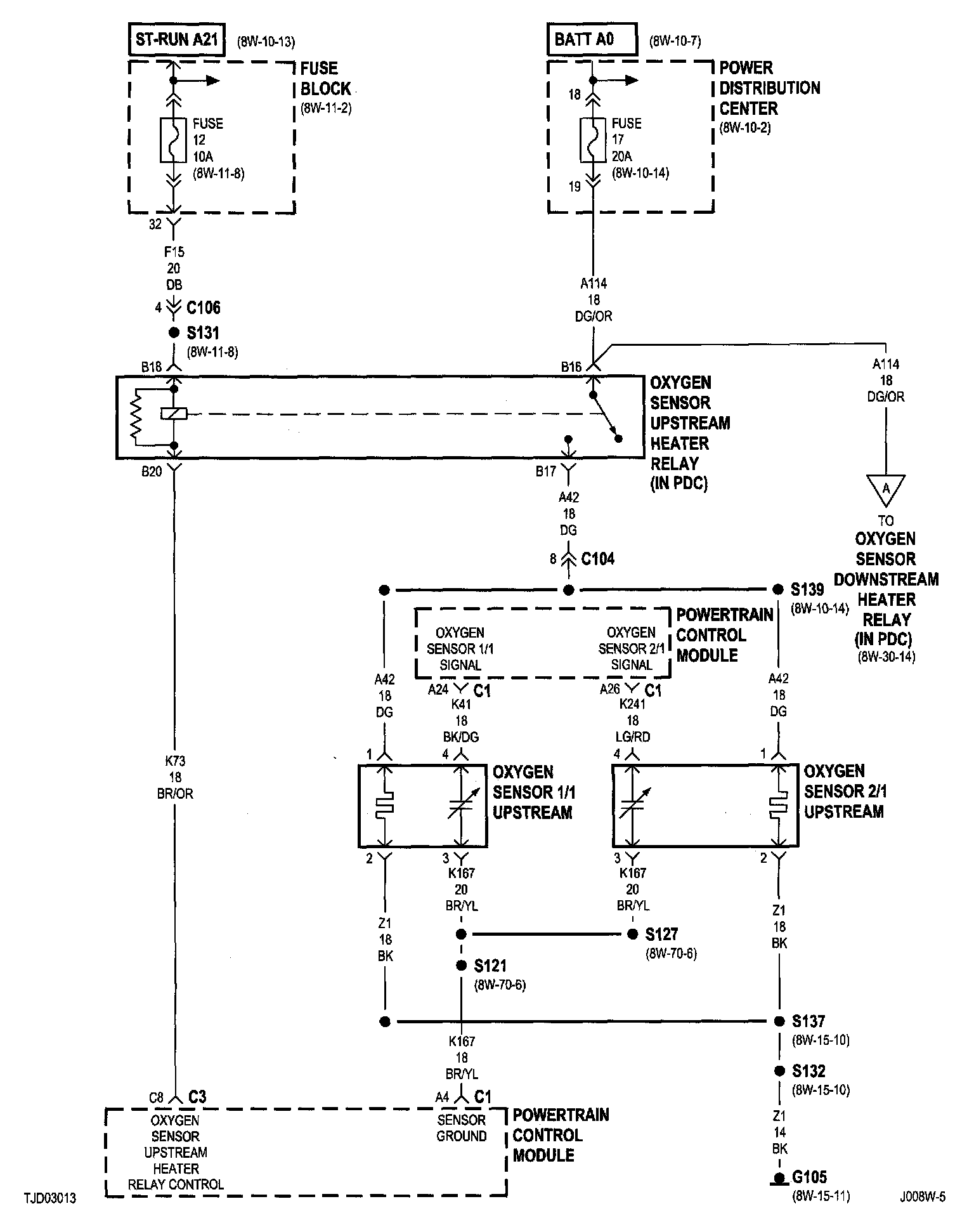

8w-30-13 (California):
Fuse 12 (FB)
Fuse 17 (PDC)
Fuse Block
G105
Oxygen Sensor 2/1 Upstream
Heater Relay
Heater Relay
Powertrain Control Module

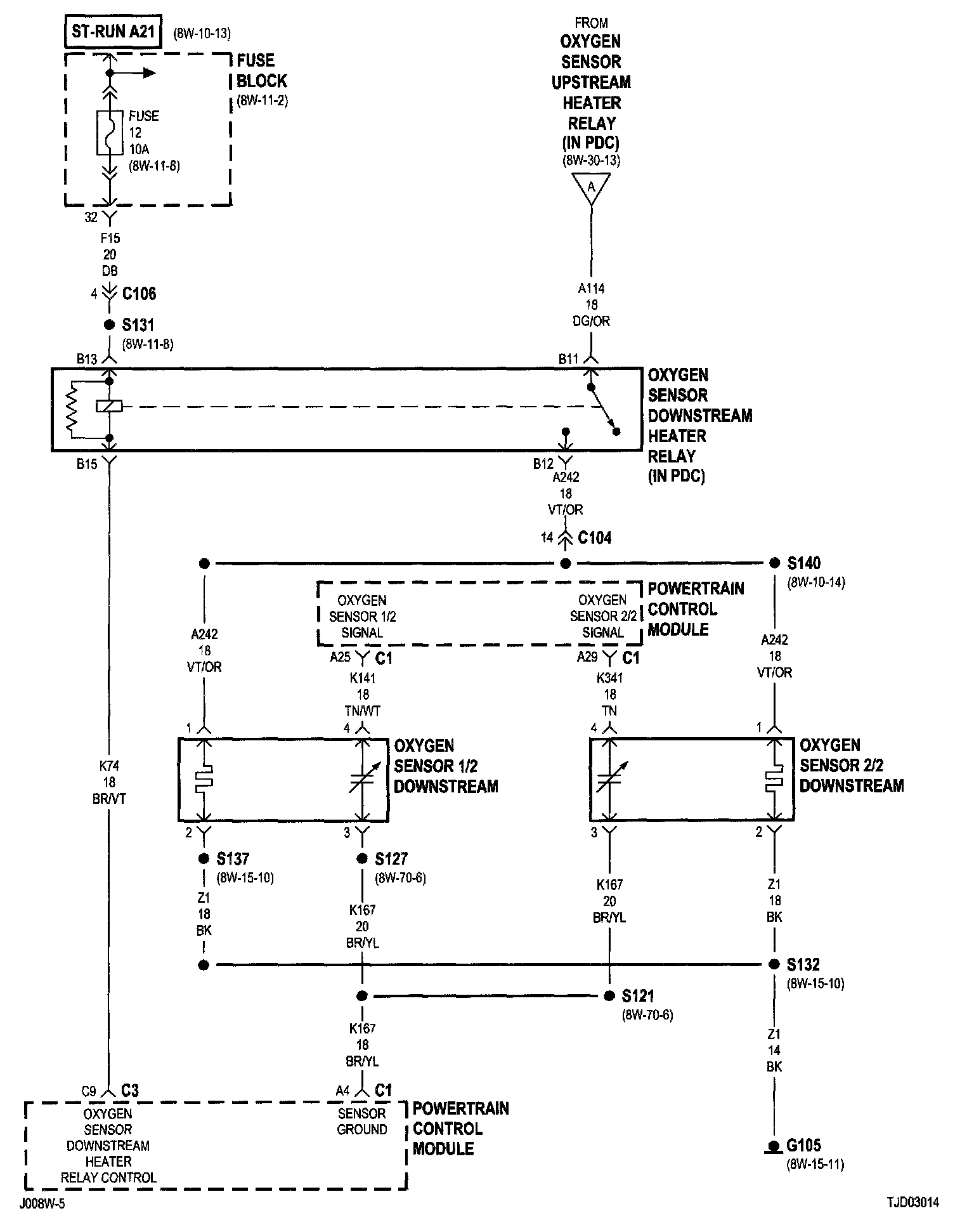

8w-30-14 (California):
Fuse 12 (FB)
Fuse Block
G105
Oxygen Sensor 1/2 Downstream
Oxygen Sensor 2/2 Downstream
Heater Relay
Heater Relay
Powertrain Control Module
8w-30-15:
Duty Cycle Evap/Purge Solenoid
Fuse 11 (FB)
Fuse Block
Generator
[1][2]Idle Air Control Motor
Leak Detection Pump
Powertrain Control Module
Torque Converter Clutch Solenoid
S113
8w-30-16:
A/C High Pressure Switch
A/C Low Pressure Switch
A/C- Heater Control
Brake Lamp Switch
Cigar Lighter/Accessory Relay
G105
G300
Generator
Powertrain Control Module
8w-30-17:
Data Link Connector
Dome Lamp
Fuse 25 (PDC)
G105
Powertrain Control Module
Sentry Key Immobilizer Module
Sound Bar Dome Lamp
Underhood Lamp
8w-30-18:
Airbag Control Module
Data Link Connector
Fuse 1 (FB)
Fuse 12 (FB)
Fuse Block
G105
G302
Instrument Cluster
Powertrain Control Module
Sentry Key Immobilizer Module
S302
S303
8w-30-19:
Battery Temperature Sensor
Clockspring
Horn Relay
Horn Switch
Powertrain Control Module
Right Speed Control Switch Pod
8w-30-20:
Brake Lamp Switch
Brake Shift Interlock Solenoid
Cigar Lighter/Accessory Relay
G100
G300
Powertrain Control Module
Vehicle Speed Control Servo
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams
