30/32RH Automatic Transmission
>>
Thrust Washer/Spacer/Snap Ring Dimensions
Thrust Washer/Spacer/Snap Ring Dimensions

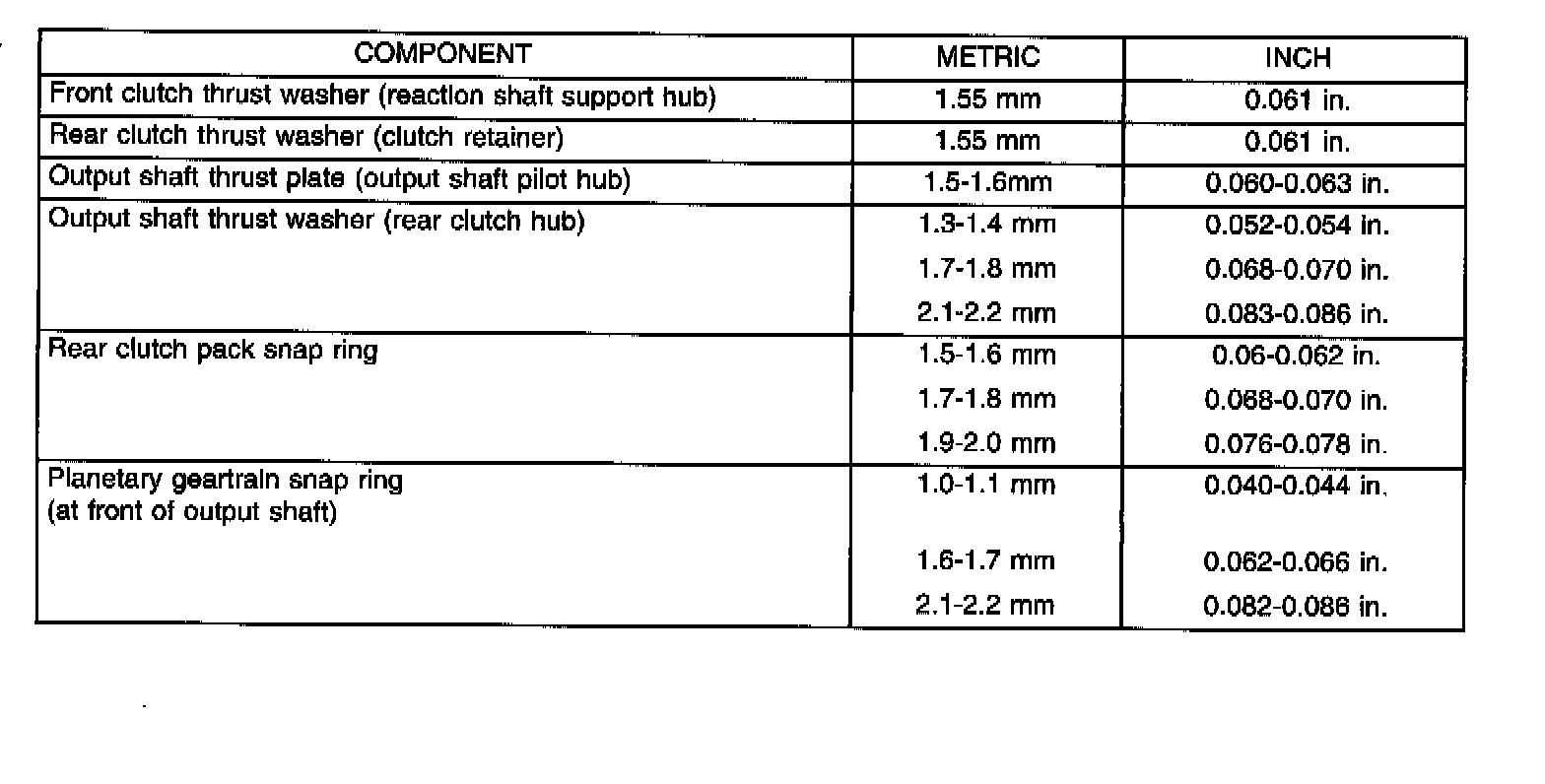

Thrust Washer/Spacer/Snap Ring Dimensions Chart:
